| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | FLUKO |
| Type: | Tank Reactor |
| Automatic Grade: | Automatic |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO9001 |
| Model Number: | Fisco |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

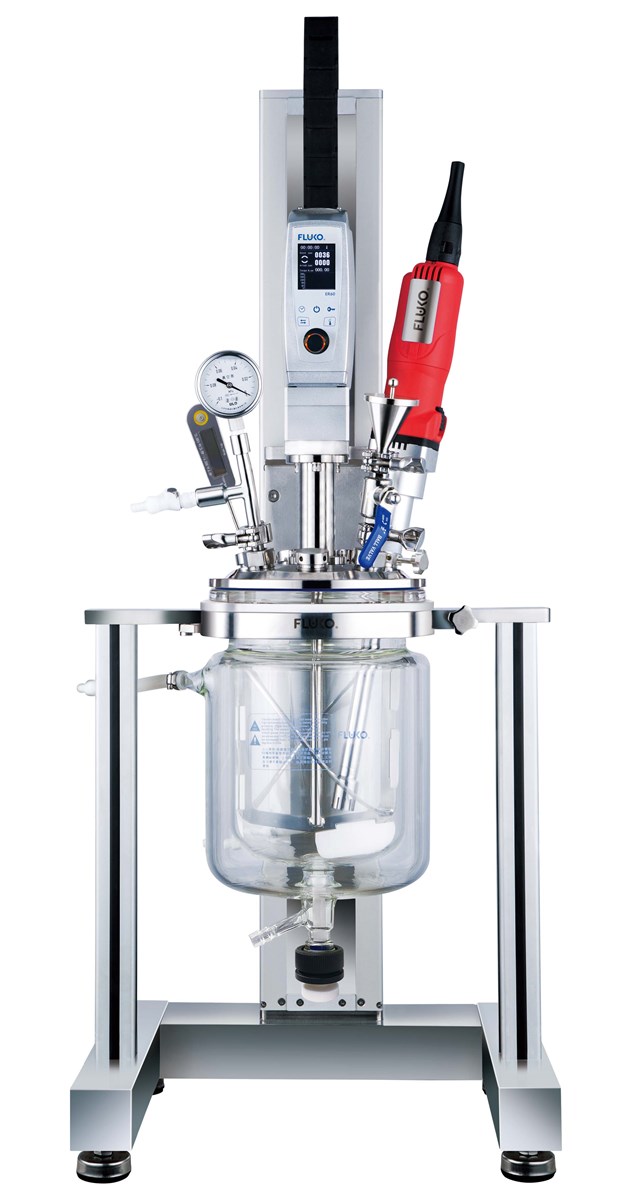

Combine with macro mixing system,micro emulsifying system,temperature control system,multi-sensor detecting system;it can fully simulate industrial production.
Technical Specifications
Model |
Fisco-1L/2L/5L |
Power supply |
220V,50/60HZ |
Minimum mixing capacity |
300ml/500ml/1000ml |
Minimum emulsifying capacity |
500ml/1000ml/2000ml |
Maximum emulsifying capacity |
1000ml/2000ml/5000ml |
Maximum working temperature |
120℃ |
Vacuum condition |
-0.092Mpa |
Maximum working viscosity |
100,000CP |
Mixer motor power |
50W |
Mixer speed range |
10-200rpm |
Standard mixer agitator |
Anchor agitator with scrapper |
Scrapper material |
PTFE |
Homogenizer motor power |
500W |
Homogenizer speed range |
10000-28000rpm |
Standard homogenizer agitator |
20DG/20DG/25DG |
Openings on cover |
Homogenizer opening, hopper opening |
Thermometer opening, vacuum opening | |
3 spare opening( Openings on cover) | |
Lifting height |
210 |
Medium-contact material |
SS316L,borosilicate glass, FKM |
Outer diameter of vacuum opening |
10 |
Jacket inlet/outlet size |
12/12/12 |
Permissible temperature range |
5-40℃ |
Permissible humidity range |
80% |
Overall dimensions |
470*420*1200 |
Weight |
~35kg/~37kg/~42kg |
Package |
Wooden case |
