| Processing: | Emulsifier |
|---|---|
| After-sales Service Provided: | Overseas service center available |
| Processing: | Batch |
| Weight: | ~100kg |
| Brand Name: | FLUKO |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | ISO9001 |
| Model Number: | FM/FMB series |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Equipment introduction:

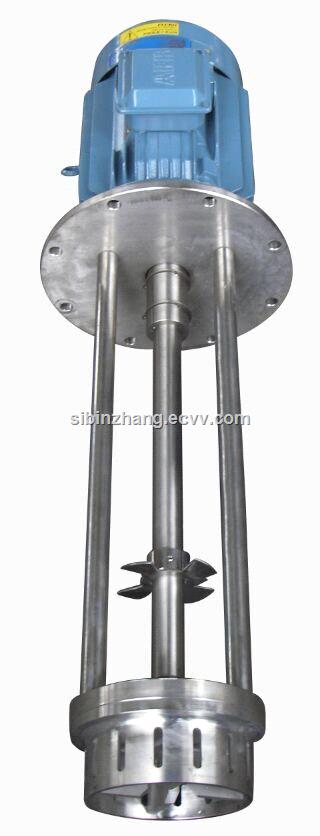

Super strong high shear for Model Moter
Power(kw) Rotation
Speed(rpm) C B A Working
Capacity(L) FM100 2.2 2900 650 320 975 50-100 FM120 4 2900 838 340 1215 100-300 FM140 7.5 2900 1130 370 1570 200-800 FM160 11 2900 1130 420 1675 300-1000 FM180 18.5 2900 1200 450 1780 500-1500 FM200 22 2900/1470 1200 450 1850 800-2000 FM240 37 2900/1470 1395 600 2140 1500-5000 FM270 55 1470 1500 640 2370 2000-8000
CE, generated by

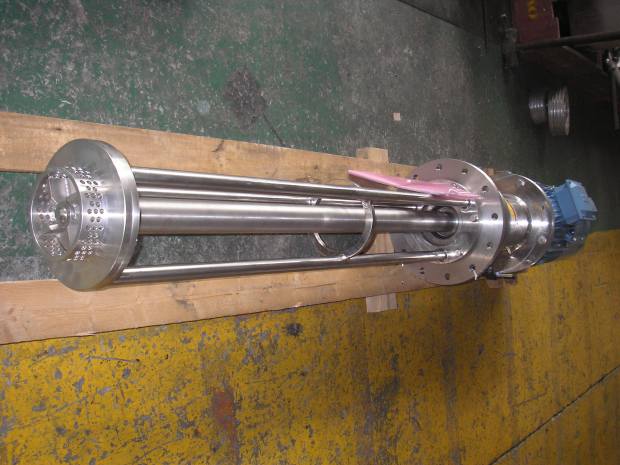

A specially designed stator/rotor system, ensures rapid reduction of liquid
Particle sizes, and thus produce more stable emulsions and more uniform
Dispersions. Our full range of equipment, from lab, pilot to mass production
Scale, can satisfy many different installations and various non-standard
Specifications.
Model |
Moter Power(kw) |
Rotation Speed(rpm) |
A |
B |
Standard/ Maximum C |
Working Capacity(L) |
FMB100 |
2.2 |
2900 |
105 |
160 |
650 |
50-100 |
FMB120 |
4 |
2900 |
115 |
195 |
750 |
100-300 |
FMB140 |
7.5 |
2900 |
130 |
235 |
833 |
200-800 |
FMB160 |
11 |
2900 |
140 |
235 |
840/1970 |
300-1000 |
FMB180 |
18.5 |
2900 |
160 |
280 |
1190/2200 |
500-1500 |
FMB200 |
22 |
2900/1470 |
220 |
280 |
1200/2600 |
800-2000 |
FMB240 |
37 |
2900/1470 |
255 |
340 |
1395/2900 |
1500-5000 |
FMB270 |
55 |
1470 |
305 |
380 |
1638/3200 |
2000-8000 |
