| Type: | Spray Booths |
|---|---|
| Brand Name: | TARGET |
| Voltage: | 220V / 380V/415V |
| Internal Size: | 12000*5000*3000mm |
| Power: | 25kw |
| Type: | Diesel burner |
| Model Number: | TG-100A |
| Place of Origin: | China (Mainland) |
| External Size: | 12000*5000*3000mm |
Quick Details
Specifications

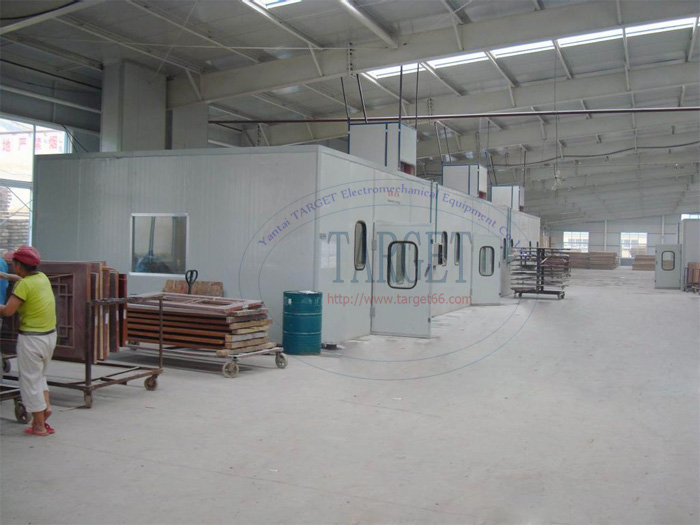

Water Curtain Style Photoes:
Spcifications:
Furtinure Spray-Baking booth TG-100A | |
Outside Dimension (L×W×H) |
12000×5000×3000mm |
Painting Room Dimension (L×W) |
3900×4900mm |
Drying Room Dimension (L×W) |
8000×4900mm |
Incoming Door Dimension (W×H) |
1900mm×2000mm |
Delivery Door Dimension (W×H) |
1900mm×2000mm |
Air Capacity |
16000M3/h |
Air Speed |
0.35-0.45m/s |
Ventilation Rate |
245Times/Hour |
Wall Panels |
EPS colorful steel skin board, wall panel: 50mm thick, 0.4 mm steel, tongue & groove style Compound construction, Aluminum-alloy frame, anti-flame and heat-insulation. |
Grilles |
40mm*3mm flat iron,10#channel steel |
Lighting |
Spray booth: 18units×36w Baking booth: 8units×36w Illuminance exceeding 450LUX, non explosive |
Infrared Heating Tubes |
18pieces×1kw carbon fiber far-infrared heating tubes, non explosive |
Generator Setting Type |
Side upper intake air, quadrate steel frame, coated steel. |
Intake Air Fan |
2×3KW double-intake centrifugal fans, air capacity: 16000m3/h |
Water Curtains |
Dimention: 3000×400×1500mm(L×W×H), stainless steel. |
Water Pump |
brand: Lailibao, capacity: 7m3/h, lift: 18m, rotate speed: 2860rotate/m power: 750W 380V/50HZ |
Filter System |
Pre-filter, high efficiency filter(ceiling filter) |
Total Power(KW) |
25 |
We will customize all kinds of furniture spray booth for you, Water curtain, dry style with paper filter and different kinds of size.
