| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 18 months |
| Certification: | CE |
| Weight: | 1500kg |
| Power(W): | 9.0kw air cooled |
| Voltage: | 220v/380v |
| Brand Name: | DLTECH |
| Place of Origin: | China (Mainland) |
| CNC or Not: | CNC |
| Condition: | New |
| effective working area: | 1300*2500*200mm |
| ormon limit switch: | yes |
| control system: | SYNTEC 6MB |
| spindle: | 9.0kw air cooled |
| machine table: | vacuum with T-slot combined |
| drive motors: | YAKASWA |
| inverter: | delata |
| machine bed: | heavy duty design |
| color: | optional |
| voltage: | 220v/380v |
Quick Details
Specifications

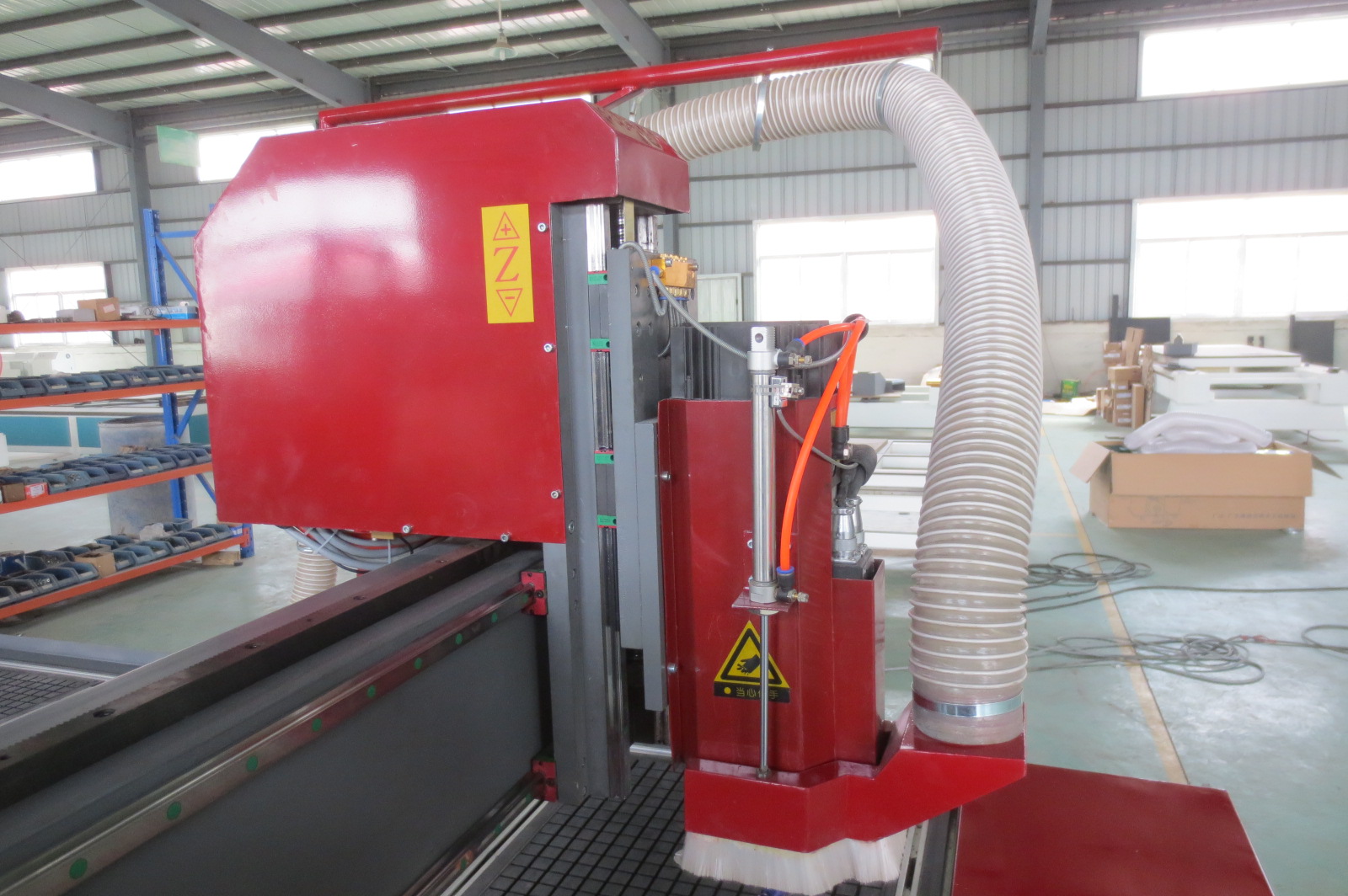

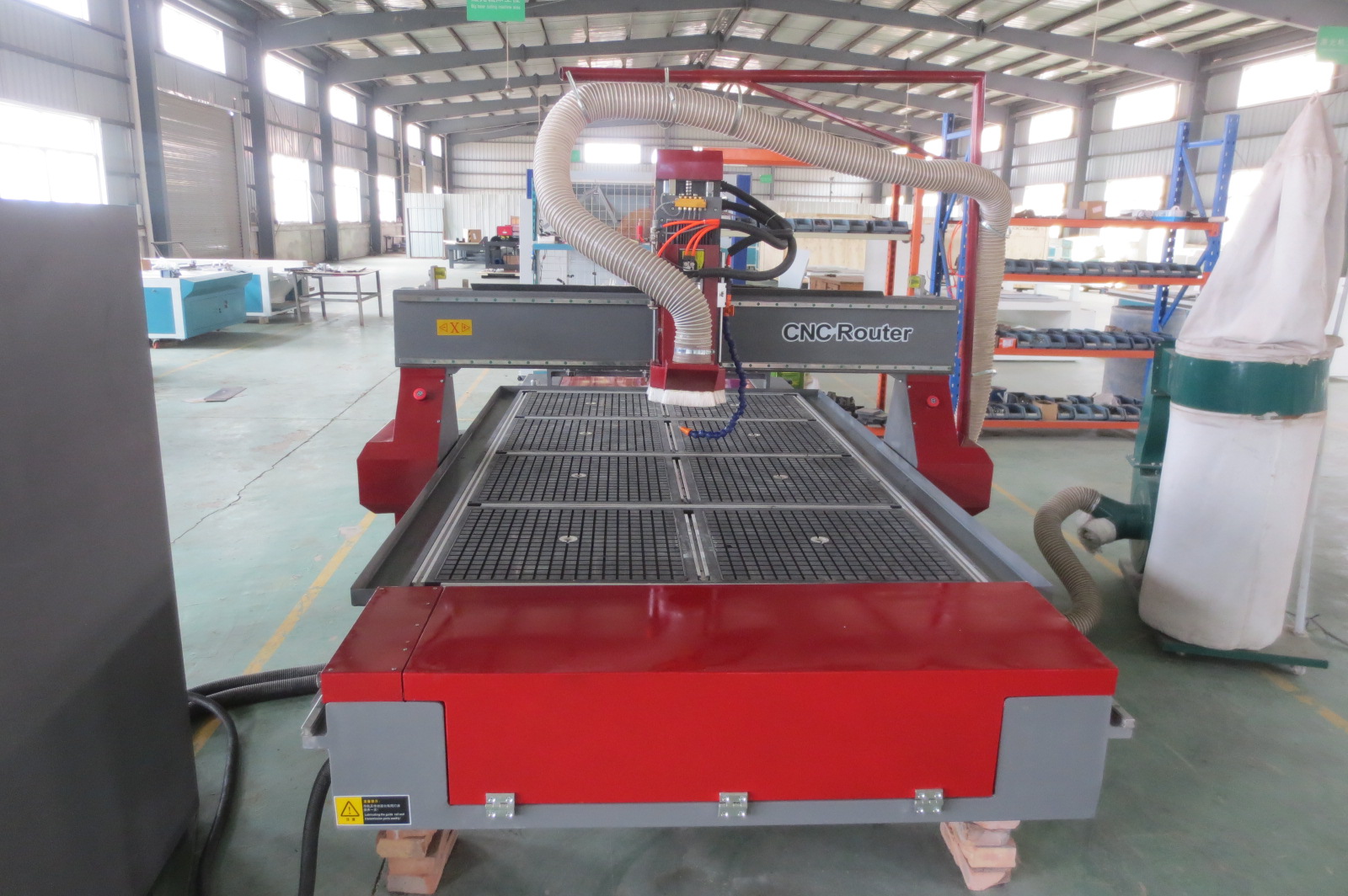

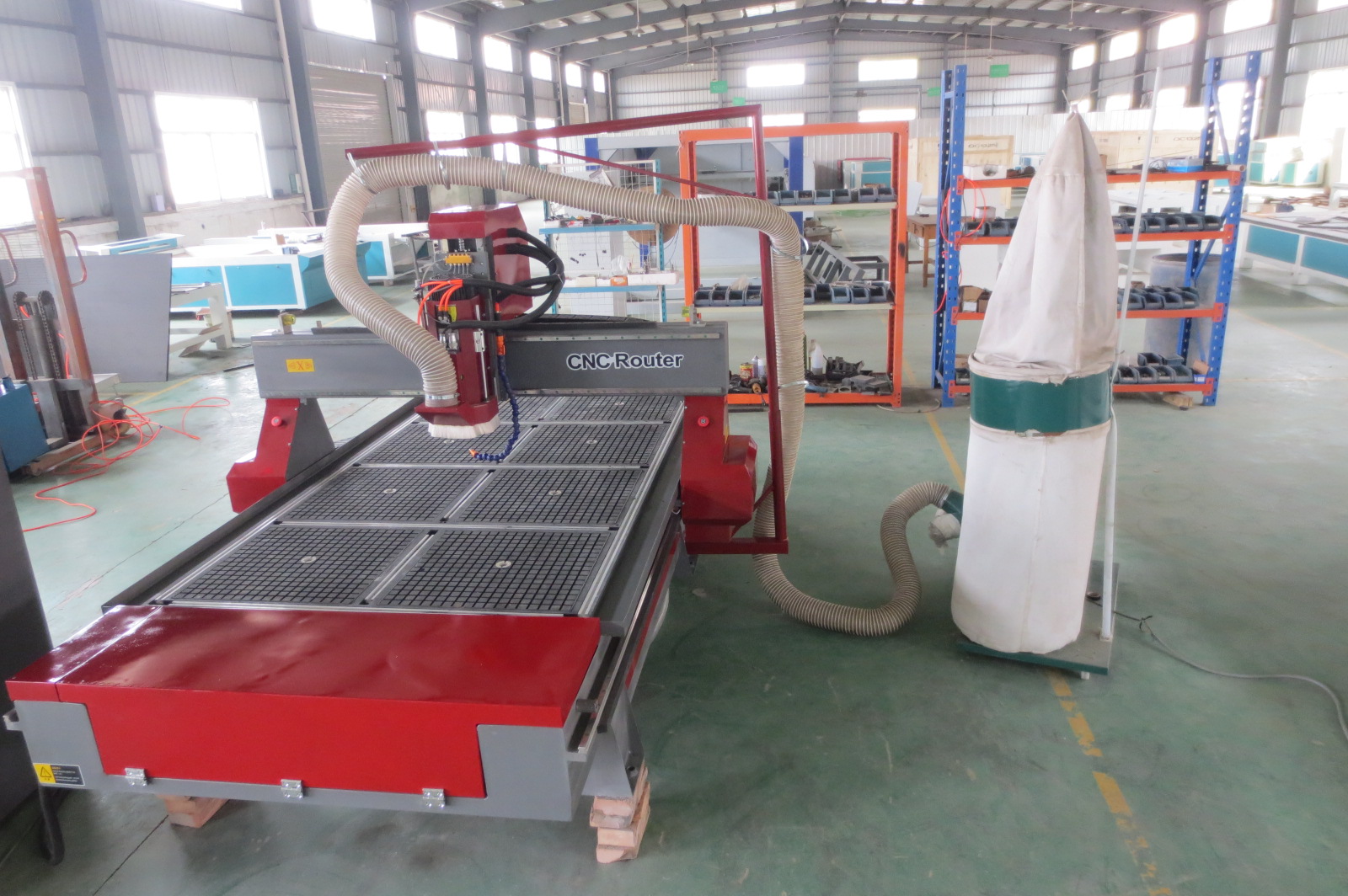

2016 hot sale model china supplier atc cnc router
1. Air cooling spindle----9 KW HQD air cooling spindle. Our domestic Well-known brands , long working life, low noise, strong cutting ability to ensure the long time working. Compared to HSD, this brand lower price, but also good to use.
2SYNTEC6MB control system----Easy operation. Support offline operation, more table. (Optional : Syntec control system)
3. Taiwan delta servo motor----High-performance drive motor to ensure that the machines high speed and accuracy. (Optional: Japan Yaskawa servo motor)
4. HIWIN linear rail 25# from Taiwan ----Smooth and precise transmission, low noise, and lifetime is 10 times longer than common rail way.
5. Vacuum & T-slot combined worktable----Can both absorb big materials by vacuum power and fix small materials by clamps. There is MDF boardon it for protection.
6. Helical rack transmission----Ensure fast speed, big loading capacity, strong power, long lifetime, and it ensures the machine more stable.
7. Carrousel Tool Magazine(ATC 1325 cnc router)---- With 8 tool holders and 8 tool forks, can save working time and will work so convenient. Can also choice the 6 or 10 tool holders and forks.
