| Special Features: | Waterproof / Weatherproof |
|---|---|
| Technology: | Varifocal lens |
| Sensor: | CCD |
| Style: | Bullet Camera |
| Type: | Analog Camera |
| Model Number: | B120CXEV |
| Brand Name: | MiyeaEye |
| Place of Origin: | China (Mainland) |
| Sensor: | 1/3'' SONY CCD |
| Resolution: | 700TVL Effio |
| Lens: | 4-9mm varifocal lens |
Quick Details
Specifications

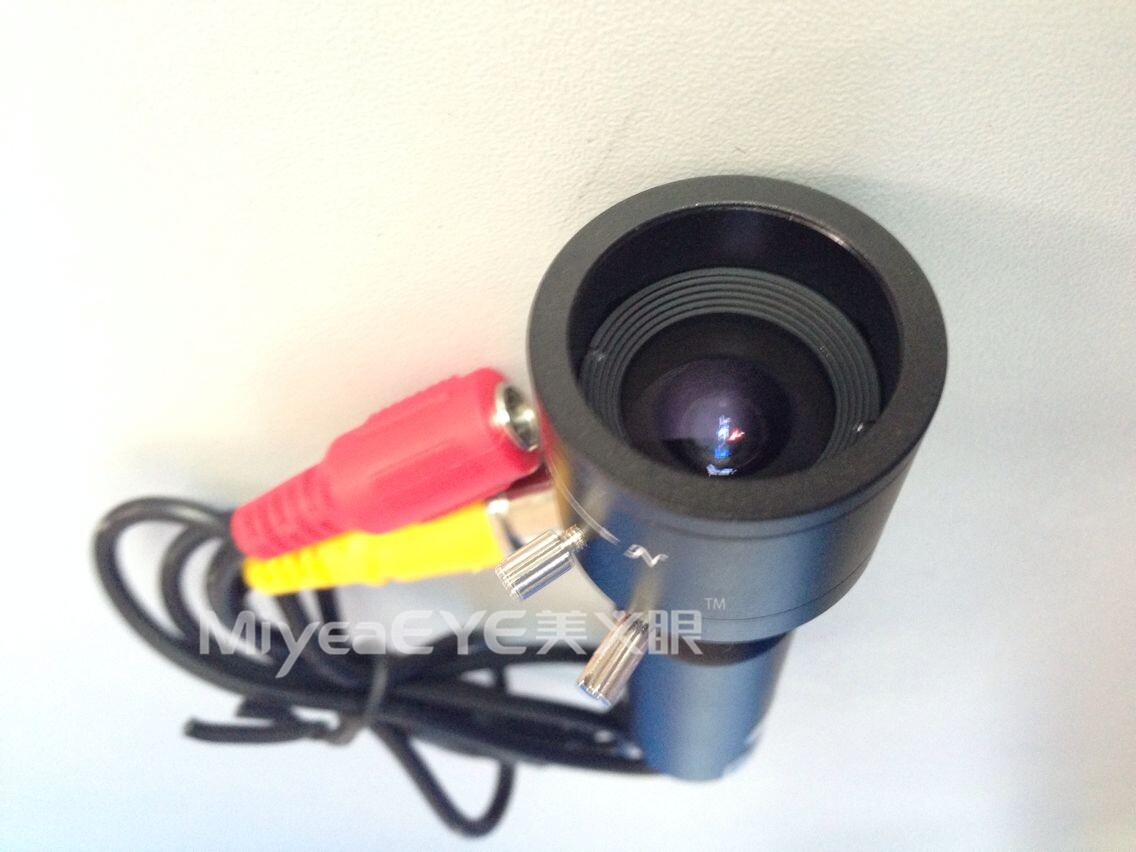

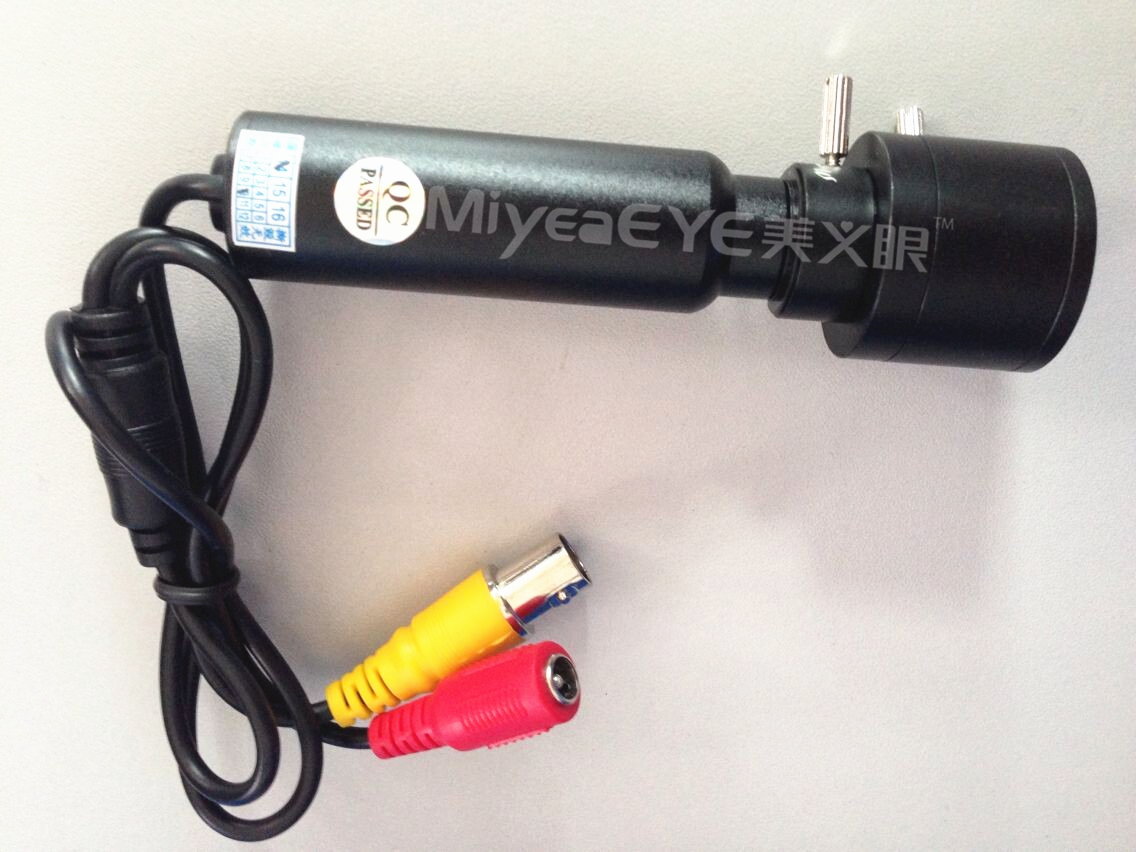

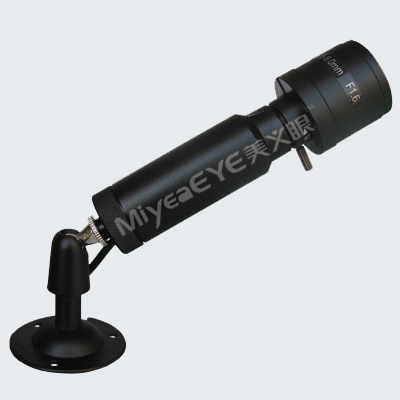

700TVL Varifocal Mini Bullet Camera



CCTV Bullet Camera Feature:
1/3" SONY CCD, EFFIO DSP;
Detailed Specifications Of The Parameters
CCTV Bullet Camera Feature:
1/3" SONY CCD, EFFIO DSP;
700 TV Lines, 0.01Lux;
Metal Casing;
SONY CCD 420TVL, 600TVL, 650TVL, 700TVL available. 600TVL, 800TVL, 1200TVL available.
Metal Casing;
SONY CCD 420TVL, 600TVL, 650TVL, 700TVL available. 600TVL, 800TVL, 1200TVL available.
Detailed Specifications Of The Parameters
|
Model
|
B120CXEV
|
|
Image Device
|
1/3" Sony CCD
|
|
Horizontal Resolution
|
700TVL
|
|
Minimum Illumination
|
0.01Lux
|
|
Effective Pixels
|
PAL: 976(H)*494(V); NTSC: 976(H)*582(V) |
|
Scanning System
|
PAL: 625 Lines, 50 Field/Sec; NTSC: 525 Lines, 60 Field/Sec
|
|
S/N Ratio
|
More Than 48dB(AGC off)
|
|
Electronic Shutter
|
PAL : 1/50~1/100,000 Sec; NTSC : 1/60~1/100,000 Sec, auto
|
|
Gamma Characteristic
|
0.45
|
|
White Balance
|
Auto
|
|
Lens Option
|
4-9mm varifocal lens
|
|
BLC
|
Auto
|
|
AGC
|
Auto
|
|
Sync System
|
Internal Synchronization
|
|
Video output
|
1Vp-p 75 Oms , Negative
|
|
Power Consumption
|
12V± 10%DC, 50mA
|
|
Operation Temperature
|
-10℃ ~ + 50℃, RH 95% Max
|
|
Storage Temperature
|
-20℃ ~ + 60℃, RH 95% Max
|
|
Housing
|
Black
|
|
Dimension
|
? 20*76mm
|
|
Weight
|
50g
|
|
Supplied Accessories
|
User manual, cable, bracket
|
