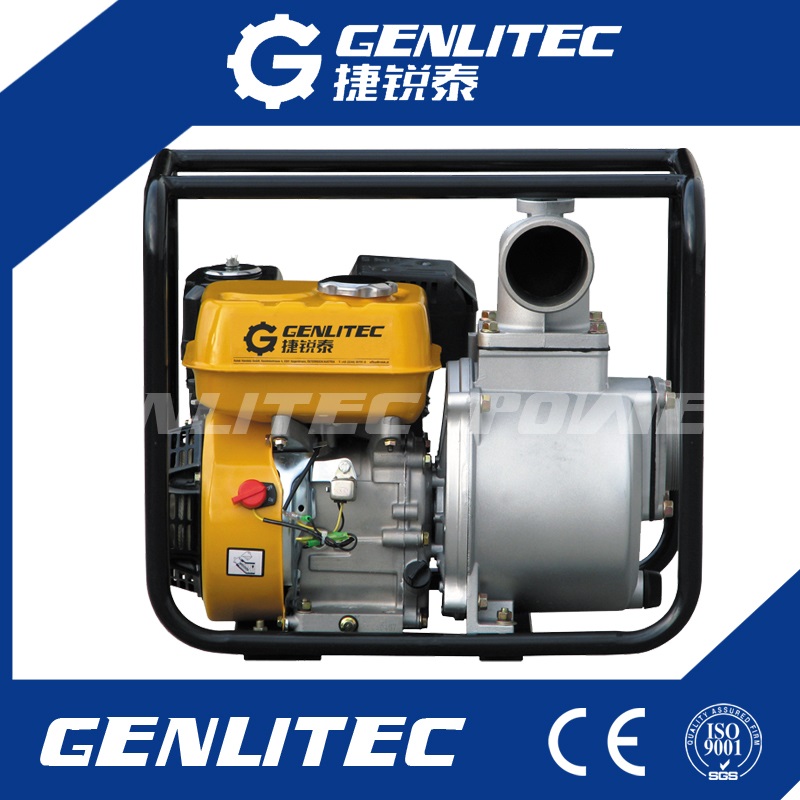

4inch Agriculture Irrigation diesel water pump

Features:

Powered by 4-stroke air-cooled diesel engine
Aluminum alloy high pressure casting
Full frame protection offers exceptional
Performance even in the toughest conditions
Safe engine inspection and easy
Maintenance
Large fuel tank ensures hours of continuous
Running
Big volume water discharge
Highly effective mechanical seal
Compact in structure and light in weight
Pump head as same as HONDA pumps



MODEL			GWP20CL(E)		GWP30CL(E)		GWP40CL(E)
Suction Port Dia. (mm)			50 (2")		80 (3")		100 (4")
Discharge Port Dia. (mm)			50x1		80x1		100x1
Max. Capacity (L/min)[m3/hr]			600 [36]		1000 [60]		1600 [96]
Cont. Capacity (L/min)[m3/hr]			366 [22]		600 [36]		1066 [64]
Self-priming Time (s/4m)			80		120		180
Max. Head (m)			26		25		31
Cont. Head (m)			15		13		16
Max. Suction Head (m)			8		8		8
Engine Model			DE170FA		DE178FA		DE186FA
Type			Single-cylinder, 4-stroke, air-cooled diesel engine
Displacement (cc)			219		306		418
Fuel Tank Capacity (L)			12.5		12.5		12.5
Gross Weight (kg)			41		52		74
Gross Weight (electric) (kg)			44		55		77
DIM (L*M*H) (mm)			485*470*605		565*470*655		675*480*725
20FT Container QTY			144		144		108
40FT Container QTY			300		300		225
40HQ Container QTY			400		400		225

Sales Conditions:
*Delivery time: 20-30days upon received your deposit.
*Payment terms: 30%T/T in advance, balance before shipment.
*Warranty: 12months or 1000 working hours whichever comes first.
*Service and parts are available from GENLITE POWER.



If you are interested in our products, please feel free to contact us for more detail information.
