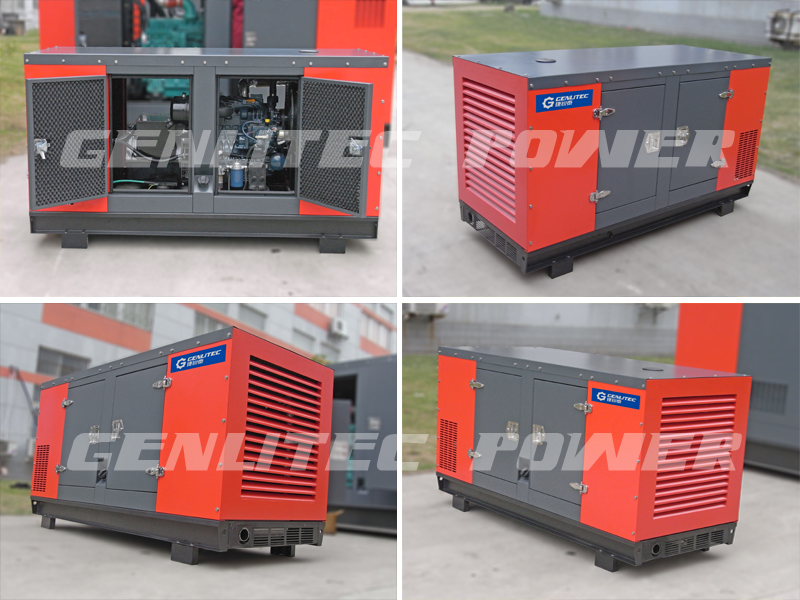

Silent type Water Cooled 8KW/ 10kVA Janpan Kubota Diesel Generator

Original KUBOTA engine features
1. KUBOTA  engine
2. Multi-cylinder in-line or veer engine, 4-stroke, direct injection
3. Naturally aspirated, turbocharged, water cooled or turbocharged with air intercooler
4. Machinery or electronic governing
5. Fuel injection pump
6. Electric motor starting system
7. Forged steel crankshaft, cast iron cylinder and replaceable wet type cylinder liner
8. Low discharge, and low fuel consumption
9. Installed conveniently and maintain easily

Prime Power	8KW/10KVA	Standby Power	8.8KW/11KVA
Rated Speed	1500RPM	Output Frequency	50HZ
Phase	3	Rated Voltage	415V
Engine Model	D1105-BG	Alternator Model	PI044E
Fuel Consumption of 100% load	3.8L/H	Fuel Consumption of 75% load	2.9L/H
Voltage Regulation Rate	≤±1%	Random Voltage Rate	≤±1%
Frequency Regulation Rate	≤±5%	Random Frequency Variation	≤±0.5%
Dimension (open type)	1300×640×910(mm)	Weight (open type)	480kg
Dimension(silent type)	1500×680×1000(mm)	Weight (silent type)	720kg

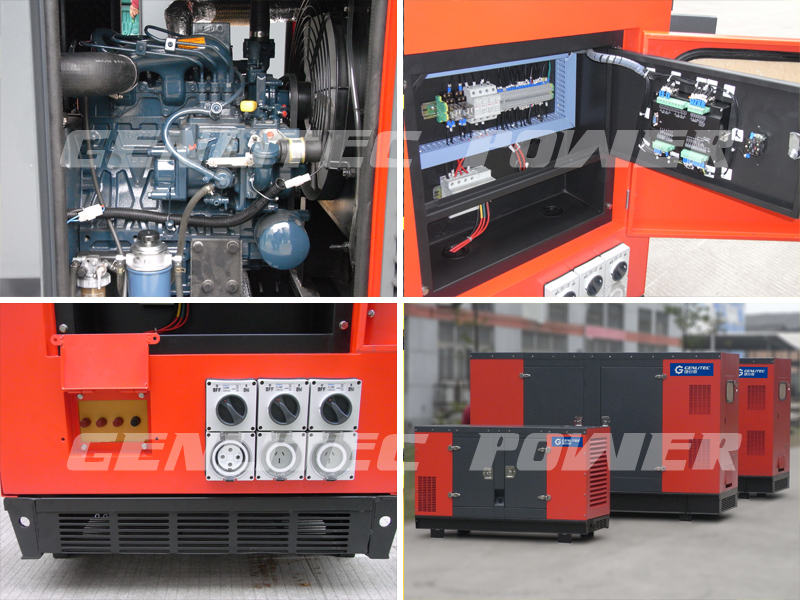

Kubota Diesel Engine

Engine Model	D1015-BG
Number of Cylinder	3
Cylinder arrangement	Vertical in-line
Cycle	Four Stroke
Aspiration	Natural Aspiration
Bore×Stroke (mm×mm)	78×78.4
Displacement	1.123L
Compression Ratio	22.0:1
Prime Power/Speed(KW/rpm)	8/1500
Standby Power/Speed(KW/rpm)	8.8/1500
Speed Governor	Electric
Cooling System	Water-cooled, 4°C Radiator as Standard, 50°C Is Optional
Speed Stability(%)	≤5%
Total Lubrication System Capacity (L)	5.6
Coolant Capacity(without radiator) (L)	5.5
Fuel Consumption at 100% Load(L/Hr)	3.8 (at 1500RPM)
Starter Motor	DC12V
Alternator	AC12V

Stamford  Alternator

Alternator Model	PI 044E
Alternator Brand	Stamford
Exciter Type	Brushless, Self-excited
Rated Output	10kva
Rated Speed	1500RPM
Rated Frequency	50HZ
Phase	Three
Rated Voltage	240V/415V (Available with customer requirements)
Power Factor	0.8
Voltage Adjust Range	≥5%
Voltage Regulation NL-FL	≤±1%
Insulation Grade	H
Protection Grade	IP23

Sales Conditions:
*Delivery time: 20-30days upon received your deposit.
*Payment terms: 30%T/T in advance, balance before shipment.
*Warranty: 12months or 1000 working hours whichever comes first.
*Service and parts are available from GENLITE POWER.

If you are interested in our products, please feel free to contact us for more detail information.
