| Output: | Analog Sensor |
|---|---|
| Theory: | Resistance Sensor |
| Usage: | Pressure Sensor |
| Brand Name: | Innovation |
| material: | Alloy Steel/Stainless Steel |
| Model Number: | IN-RC3 |
| Place of Origin: | China (Mainland) |
| Capacity: | 5t, 10t.,20t, 30t load cell |
| Material: | Stainless of alloy stell+ stainless |
Quick Details
Specifications

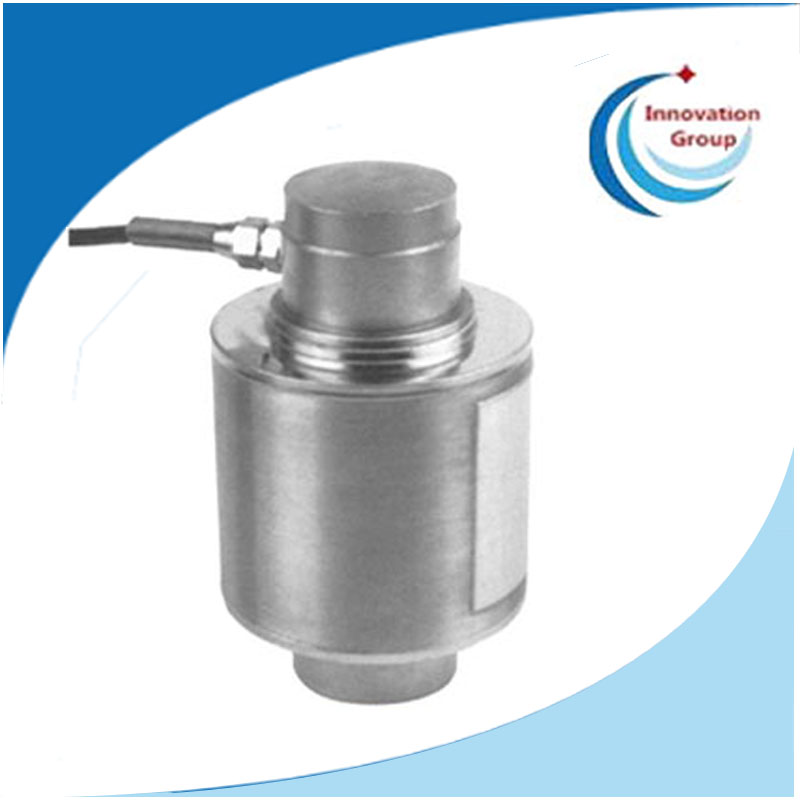

in-RC3 5t, 10t.,20t, 30t Alloy Steel +Stainless Stainless COMPRESSION LOAD CELL
COMPRESSION LOAD CELL in-RC3
5t, 10t, 20t load cell
| Item | Unit | Parameter | |
| Accuracy class to OIML R60 | C2 | C3 | |
| Rated capacity (Emax) | 5,10,20,30 | ||
| Minimum LC verification interval(Vmin) | %ofEmax | 0.0200 | 0.0100 |
| Sensitivity (Cn)IZero balance | mV/V | 2.0±0.002/0±0.02 | |
| Temperature effect on zero balance (TKo) | % ofCn/10K | ± 0.02 | ± 0.0170 |
| Temperature effect on sensitivity (TKc) | % ofCn/10K |
± 0.02 | ± 0.0170 |
| Hysteresis error (dhy) | %ofCn | ± 0.0270 | ± 0.0180 |
| Non-linearity(dlin) | %ofCn | ±0.0250 | ± 0.0167 |
| CEp(dcr) over 30 min. | %ofCn | ± 0.030 | ± 0.0167 |
| Input (RLC) &Output resistance (Ro) |
|
in-RC3:400±10&352±3 in-RC3Y:700±20&706±7 | |
| Nominal range of excitation voltage (Bu) | V | 5---15 | |
| Insulation resistance (Ris) at 50Vdc | MQ | >=5000 | |
| Service temperature range (Btu) | oC | -30...+70 | |
| Safe load limit (EL) & Breaking 10ad(Ed) | %ofEmax | 150 &250 | |
| Protection class according to EN 60 529 (IEC 529) | IP68 | ||
| Material:Measuring element+housing | Stainless or alloy steel +Stainless steel | ||
| MaximumCapacity(Emax) | 5t | 10t | 20t | 30t | |
| Min. Scale verification (emin) according to EN45501 [...#=max. Number of load cells] | kg |
2 [4#] |
5 [6#] |
5 [6#] |
10 [10#] |
| Deflection at Emax (snom),Approx | mm | 0.55 | 0.55 | 0.65 | 0.75 |
| Weight(G),Approx | kg | 1.8 | 1.9 | 2.1 | 2.3 |
| Cable:Diameter:? 6mm Length | m | 8 | 10 | 12 | 15 |
