Gernal Description

10/100M Fast Ethernet Fiber Media Converter achieves the connect transforming from 10/100BASE-TX to 100BASE-FX. It changes the Ethernet transmission distance from cooper' s 100 meter to single-mode optical fiber' s 2-100 Km. What is more; the optical fiber has the advantage of anti-electromagnetic interference, so Fiber Optical Transceivers always apply to long distance and wide bandwidth computer network.

Main Feature:

1. Comply with IEEE802.3/u 10Base-T and 100Base-TX/FX

2. Support 802.3x full duplex flow control and Back Pressure half duplex flow control

3. Link Loss Alarm function

4. Supports MDI/MDI-X auto-sensing

5. Optional internal or external power supply

6. Optional SC, CT, FC, or LC (SFP module) optional fiber connector

7. Provide 1 channel optic interface and 1 channel Ethernet interface

8. Small volume, low power consumption, easy to install

9. Supports 2U, 14-slot rack-mounted (for external power supply, desk type media converter only); supports 2U 16-slot rack-mounted (for card type, gigabit media converter only)

See the table below for the LED indicator lamp

Figure 1 Schematic drawing of connection

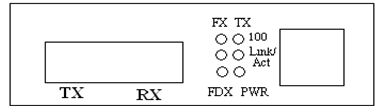

Explanation for LED indicator lamp

LED indicator lamps serve as device monitoring and trouble display. The following is the explanation for each LED indicator lamp.

LED indicator lamp	Status	Explanation
FX Link/Act	On	Connection status display for fiber link. " ON" indicates that Fiber link is in correct connection.
	Blink	Active status display of fiber link " Blink" indicates packet goes through Fx end.
TX Link/Act	On	Connection status display for electric link. " ON" indicates that electric link is in correct connection.
	Blink	Active status display of fiber link " Blink" indicates packet goes through Tx end.
FDX	On	Transceiver works in the full duplex mode.
	Off	Transceiver works in the half duplex mode.
PWR	On	Power is on and normal.
FX100	On	Transfer rate of optical interface is 100Mbps.
TX100	On	Transfer rate of electric interface is 100Mbps.
	Off	Rate of electric interface is 10Mbps

Transmission characteristics of single fiber transceiver

Product model (WDM)	Optical wavelength (nm)	Transmitting optical power(dbm)	Receivingsensitivity (dbm)	Transmission distance (km)
UTP-SM (25km)	1310/1550 1550/1310	-12-6	-12	25
UTP-SM (40km)	1310/1550 1550/1330	-3-5	< -31	40
UTP-SM (60km)	1310/1550 1550/1330	-5-9	< -44	60

Technical Parameter:

Optic Interface

1. Single Mode Transmit Optic Power: -3dBm ~ -9dBm

2. Single Mode Receive Sensitivity: -33dBm ~ -40dBm

3. Fiber Connecter: Dual SC /Dual FC /Single SC is optional;

4. Adaptive fiber: Single Mode, Multi Mode.

Ethernet Interface

1. Provide 1* RJ45 electronic interface, support local switching

2. Comply with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and 100Base-FX

3. Support full duplex IEEE802.3X flow control, half duplex back pressure flow control

4. Interface Speed Rate: 10/100Base-Tx, 10M and 100M

5. Support Broadcast Storm Suppression

6. Support RJ45 interface direct connection/cross line auto-adaptation

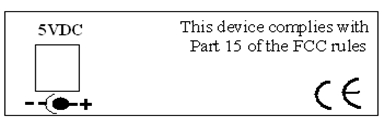

Power Supply Condition

1. DC Power Voltage: -48VDC, Tolerance Range -24V~-72V

2. DC Power Voltage: +24VDC, Tolerance Range +20V~+28V

3. AC Power Voltage: 110V~260V

4. Power Consumption: ≤ 10W

Working Environment

1. Environment Temperature: 0~65℃

2. Relative Humidity: ≤ 90%(35℃)

3. Atmospheric Pressure : 86-106Kpa

Dimension

97mm*70mm*26mm(desktop), can be installed in standard 19" rack

150mm*110mm*28mm Internal power supply.
