USE:

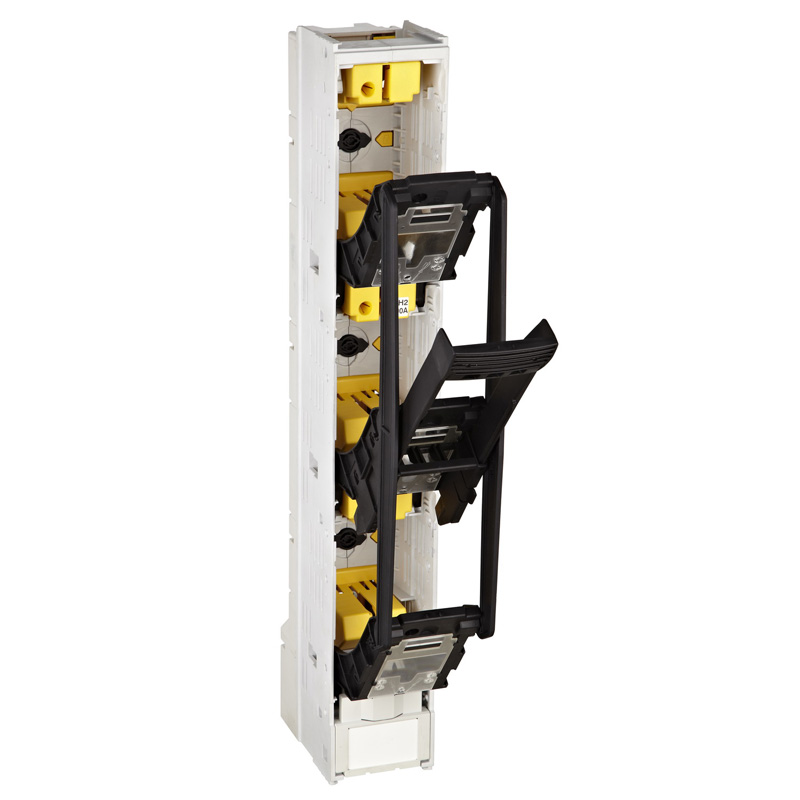

LMHR series in-line Fuse switch disconnector Is integrated with initiating current transformer and fuse switch. the current is 160A-630A, rated frequency 50/60HZ.this fuse switch disconnector provide reliable overload and short-circuit protection for industrial plants or infrastructure, and are suitable for use in various industries. so it has been widely used for distribution facility such as SMC distribution,Switchgear, cable branch box, box transformer, factory, and community etc. It will be a trend in the field of power distribution in the future.

Feature:

1. the flame retardant rating of plastic parts is V0; the protection degree is IP30;

2. the breaking capacity can be reached to 100KA, operation with load reached to1.3times rated current.

3. Maximum flexibility thanks to modular construction and uniform accessories.

4. Extremely simple and fast to install.

5. Reduced cost and space overhead through compact size

6. Quick and safe conversion for cable outlet on top/bottom.

7. Enhanced protection of personnel and plants.

8. Electronic fuse monitoring function incl. Network monitoring

Laiman#    change # to @

Convertional thermal current	Size	Rated insulation voltage	Fuse
			Rated current of fuse(breaking capacity of 415v,500v	Rated current of fuse(breaking capacity of 900v
LMHR-160	00	415v,500v,690v	20 25 32 40 50 63 80 100 125 160(≥100ka)	20 25 32 40 50 63 80 100(≥50ka)
LMHR-250	1	415v,500v,690v	80 100 125 160 200 224 250(≥100ka)	80 100 125 160 200
LMHR-400	2	415v,500v,690v	125 160 200 224 250 300 315 355 400(≥100ka)	125 160 200 224 250 300 315 (≥50ka)
LMHR-630	3	415v,500v,690v	315 355 400 425 500 630(≥100ka)	315 355 400 425(≥50ka)
