| Brand Name: | Genlitec |
|---|---|
| Cold Style: | Air-cooled |
| Cylinder: | Single Cylinder |
| Fuel: | Diesel |
| Condition: | New |
| Warranty: | 1 year |
| Certification: | CE, ISO |
| Weight: | 48kg |
| Dimension(L*W*H): | 417* 470* 494 |
| Model Number: | DE186FA |
| Place of Origin: | China (Mainland) |
| Start: |
Quick Details
Specifications
Please send your inquiry to me via Angela at genlitec doc com

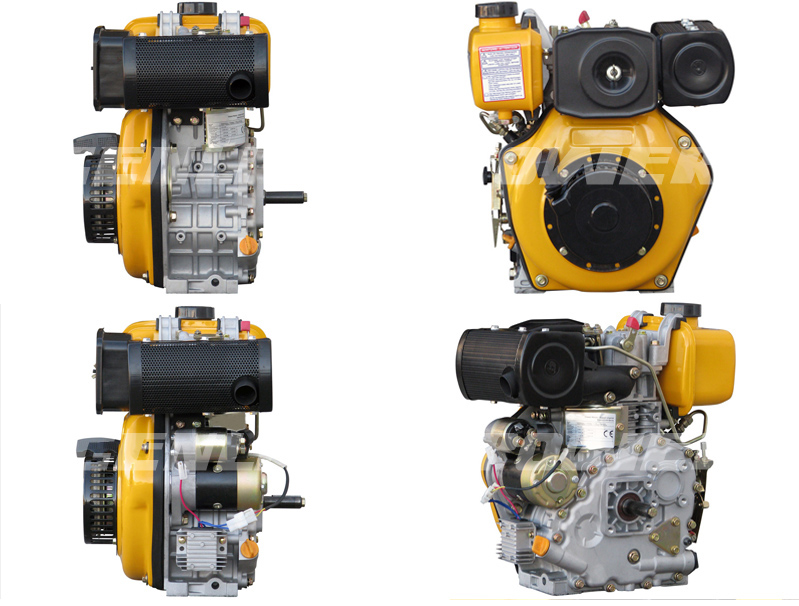

Air-cooled, Single cylinder, 186cc, 10HP diesel engine with CE
Characteristics
1) Direct injection combustion system
2) Efficient air cleaner system
3) Low noise level and stability
4) Compact in structure and small in size
5) Multi-choice PTO shafts
6) Recoil starter or electric starter
Specification:
| Model | DE170F(E) | DE178F(E) | DE186FA(E) | DE188FA(E) | DE192F(E) | ||
| Type | Air-cooled, 4-stroke, Single cylinder | ||||||
| Displacement(cc) | 219 | 306 | 418 | 456 | 498 | ||
| Bore x Stroke (mm) | 70x57 | 78x64 | 86x72 | 88x75 | 92x75 | ||
| Speed(rpm) | 3000/3600 | ||||||
| Max.Power(HP) | 4.0 | 6.0 | 10.0 | 12.0 | 15.0 | ||
| Crandshaft Type | Keyway, Taper or Thread | ||||||
| Starting System | Recoil (Electric Start as Optional) | ||||||
| Fuel tank capacity (L) | 2.5 | 3.5 | 5.4 | 5.4 | 5.4 | ||
| Oil capacity (L) | 0.8 | 1.1 | 1.65 | 1.65 | 1.65 | ||
| Fuel comsuption (g/kw.H) | 220 | 215 | 210 | 205 | 200 | ||
| Chargeing system | 12Volt, 15Amps(for electric Start models) | ||||||
| Fuel Type | 0#(Summer), -10#(Winter) | ||||||
| Oil Grade | SAE 10W30(above CC grade) | ||||||
| Dimension (L x W x H) mm | 427x380x462 | 475x455x518 | 525x480x518 | ||||
| Gross Weight (kg) | 29 | 36 | 50 | 55 | 56 | ||
| 20FT Container Qty(units) | 410 | 240 | 192 | 192 | 192 | ||
*Payment terms: 30%T/T in advance, balance before shipment.
*Warranty: 12months or 1000 working hours whichever comes first.
*Service and parts are available from GENLITE POWER.
If you are interested in our products, please feel free to contact us for more detail information.
