Features:

Convenient &skillful

Providing the most practical measuring solution

Providing the index of reliable measuring function and efficiency because of its excellent structure

Achieving various complicated measurement based on different kinds of configurations

Integrated size norms

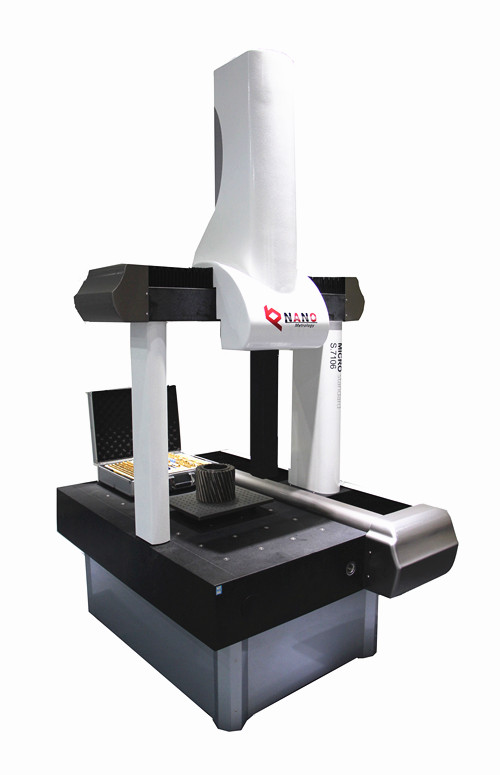

Technical Description :
1. Adoption of advanced F.E.M. (finite element method) makes it have a strong rigidity, small geometry error, high precision, high performance and high stability.
2. the mechanical overall structure adopts strong rigidity, light weight and close frame movable bridge structure, which is simple, compact and has strong loaded capacity and good moving performance.
3. Granite fixed worktable ensures strong heavy load, expanse and simplicity for loading and  unloading.
4. Y axis guide-way adopts dove tail type, which has high precision and good stability.
5. Three axis's adoption of quality granite guarantees small coefficient in thermal expansion and uniform temperature specialty so that it serves to excellent stability in temperature,Good anti-transmogrification, strong rigidity and small geometrical error in motion.
6. Three axis's adoption of quiescent air pressure air-bearing guide way, comprised of air  bearings which are self-cleaning, pre-loading and high precision, guarantees the large span of bearings, strong anti-sways, small resistance, no abrasion and stable motion.
7.  Adoption of world famous reflecting metal tape measuring scale system, which has a close  thermal expansion coefficient with most work piece and assure a good repeatability.
8. Drive system adopts world famous high performance DC servo drive system and dentiform tape gearing, which guarantee the drive's fastness, precision and perfect movement.
9. Z-axis adopts cylinder equilibrator system, which improves orientation precision and stability greatly for Z axis.
10. Control system adopts well-known exclusive Europe Internationally advanced up-down dual computers control system, which improves the system's reliability and anti-jamming capacity greatly.
