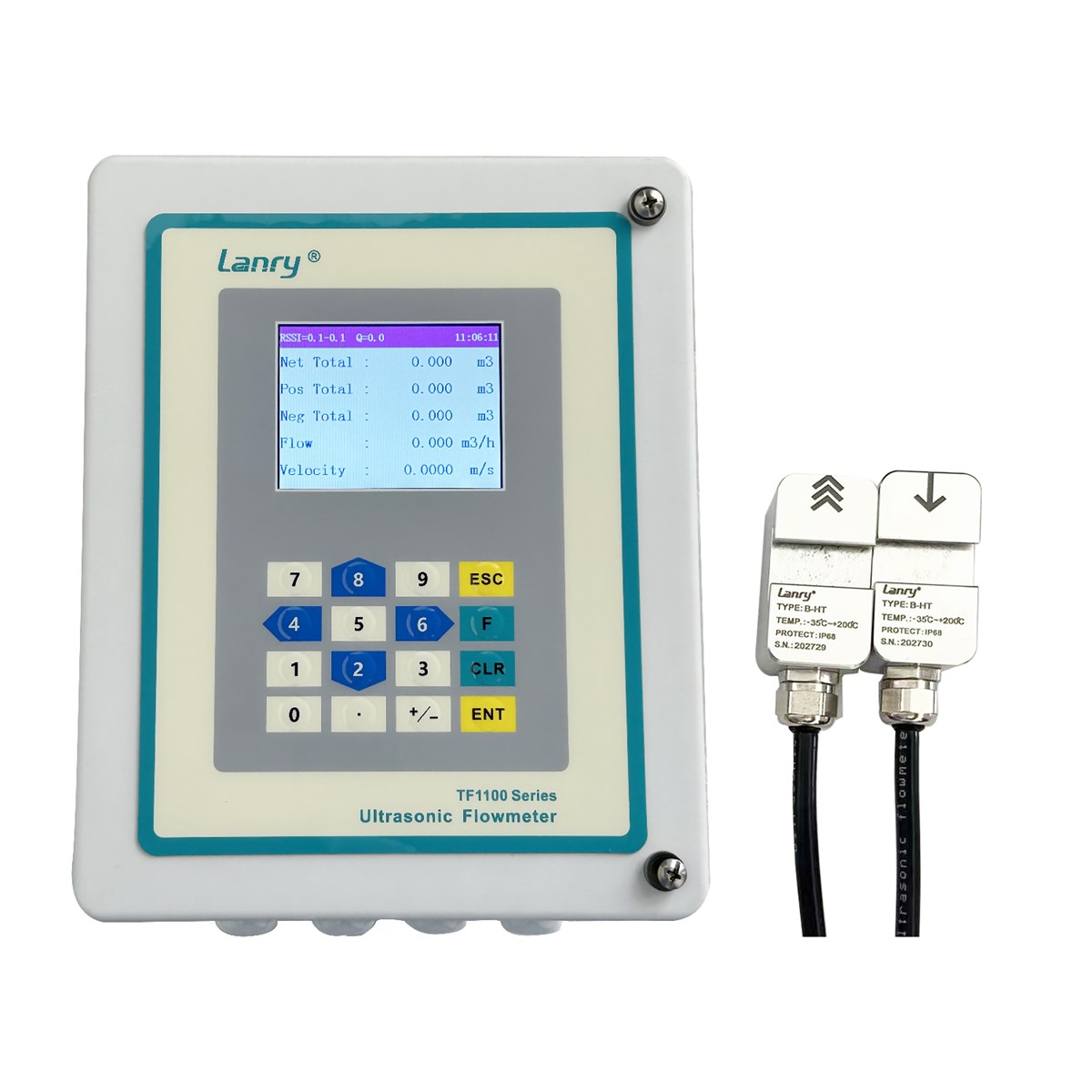

| Model Number: | TF1100-EC |
|---|---|
| Brand Name: | Lanry |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function.
4. Thermal energy measurement capability can be optional.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.
6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.
Applications:
|
Water and waste water industry - hot water, cooling water, potable water, sea water etc.) Petrochemical industry Chemical industry -chlorine, alcohol, acids, .thermal oils.etc Refrigeration and air conditioning systems Food , beverage and pharmaceutical industry Power supply-nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc Metallurgy and mining applications Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection. |
|
General ● Service and maintenance ● Replacement of defective devices ● Support of commissioning process and installation ● Performance and efficiency measurement - Evaluation and assessments - Capacity measurement of pumps - Monitoring of regulating valves ● Energy efficiency audits |
Specifications: Transmitter
|
Measurement principle |
Ultrasonic transit-time difference correlation principle |
|
Flow velocity range |
0.01 to 12 m/s, bi-directional |
|
Resolution |
0.25mm/s |
|
Repeatability |
0.2% of reading |
|
Accuracy |
±1.0% of reading at rates >0.3 m/s);±0.003 m/s of reading at rates<0.3 m/s |
|
Response time |
0.5s |
|
Sensitivity |
0.003m/s |
|
Damping of displayed value |
0-99s(selectable by user) |
|
Liquid Types Supported |
both clean and somewhat dirty liquids with turbidity <10000 ppm |
|
Power Supply |
AC: 85-265V DC: 24V/500mA |
|
Enclosure type |
Wall-mounted |
|
Degree of protection |
IP66 according to EN60529 |
|
Operating temperature |
-20℃ to +60℃ |
|
Housing material |
Fiberglass |
|
Display |
4 line×16 English letters LCD graphic display, backlit |
|
Units |
User Configured (English and Metric) |
|
Rate |
Rate and Velocity Display |
|
Totalized |
gallons, ft3, barrels, lbs, liters, m3,kg |
|
Thermal energy |
unit GJ, KWh can be optional |
|
Communication |
4~20mA(accuracy 0.1%),Frequency(1-9999Hz), Relay, RS232, RS485 (Modbus),Logged data |
|
Security |
Keypad lockout, system lockout |
|
Size |
244*196*144mm |
|
Weight |
2.4kg |
Specifications: Transducer
|
Degree of protection |
IP65 according to EN60529.(IP67 or IP68 Upon request) |
|
Suited Liquid Temperature |
Std. Temp.: -35℃~85℃ for short periods up to 120℃ |
|
High Temp.: -35℃~200℃ for short periods up to 250℃ |
|
|
Pipe diameter range |
20-50mm for type S, 40-1000mm for type M, 1000-6000mm for type L |
|
Transducer Size |
Type S 52(h)*28(w)*26(d)mm |
|
Type M 60(h)*34(w)*32(d)mm |
|
|
Type L 80(h)*40(w)*42(d)mm |
|
|
Material of transducer |
Aluminum for standard temp. sensor,and peek for high temp. sensor |
|
Cable Length |
Std:10m |
|
Temperature Sensor |
Pt1000, 0 to 200℃, Clamp-on and Insertion type Accuracy: ±0.1% |
