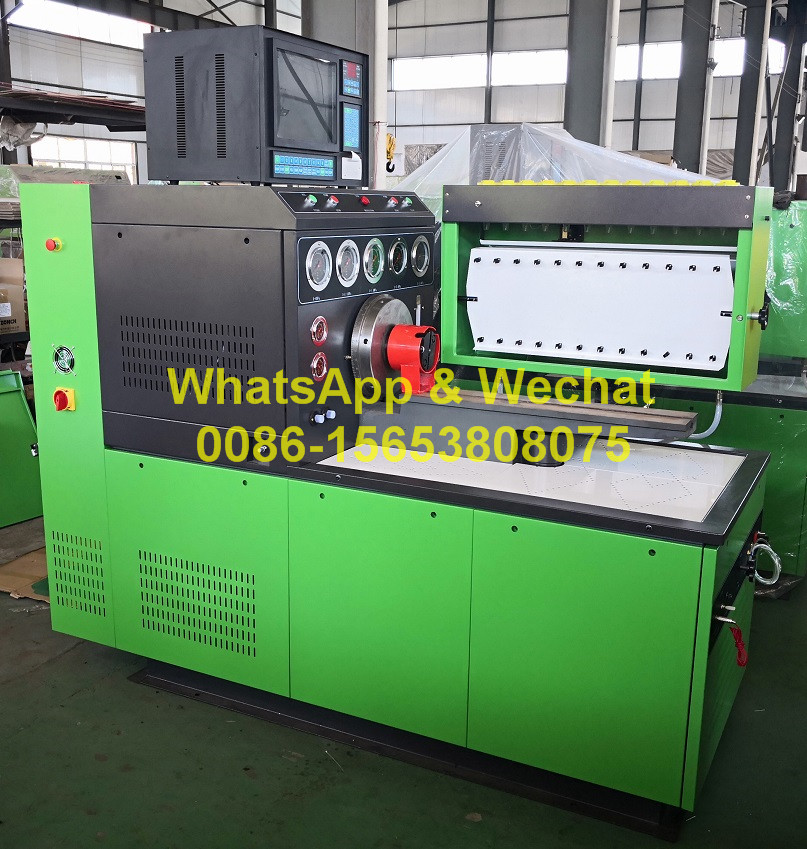

PS2000-IIIDiesel Fuel Injection Pump Test Bench:

Test diesel mechanical pumps ( in line pumps and rotary pumps).

Characteristics:

1.Main motor frequency conversion adjust speed(0~4000 r/m adjust)

2. SMall value of reduction of speed, Large output torque

3. HIgh measurement accuracy

4. THe function of overvoltage, Overload and short circuit

5. Many kinds of rotation speed presetting

6. COnstant temperature controlled

7. Ultra low noise

8. BuilT-in air supply

9. Advanced angle, Rotation speed, Count, Temperature, Are displayed on 17''LCD

10. PRessure, Rack bar are displayed on 17"LCD ( Optional )

10.Operating position: Arbitrary side of the two work sides of the test bench

11.Built-in lube system ( Optional)

12.Two display ( Screen display and digital display ),

   twoOperation system, Can operate separately.

Functions:

1. TEst each cylinder'S oil supply capacity at various  Rotation speed

2. TEst each cylinder'S injection time with static state

3.   Test the mechanical speeds governor

4. TEst electromagnetic valve of distribution pump

5. CHeck pressure compensators

6. Test the sealing performance of injection pump

7. Test the oil-return quantity of distribution pump

8.TEst inner pressure distributor pump

9. Checking of the pneumatic speed governor'S vacuum performance

10. Measurement of rack travel

11. Measurement of advanced angle

12. Ten kinds of rotation speeds presetting

13. Measurement of speed governor curve ( optional )

14. Test the injection angle of lube ( optional )

15.Large-scale data base, search and print easily ( Optional)
