| Warranty: | 1 year |
|---|---|
| Type: | processing machine |
| Usage: | Fruit & Vegetable |
| Brand Name: | CFM |
| Condition: | New |
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Model Number: | CFM-SJJ02 |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Application

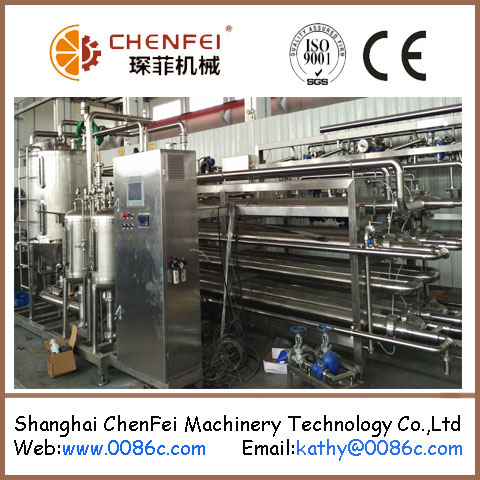

It is mainly Applicable to the heat exchanging technology of materials such as jam and Pulp(high intensity with a content of disposable dry material80% )
Features
Low energy Consumption, high heat exchanging efficiency,high capacity and easy cleaning
Technical Parameter
Model |
CFM-UHT-PP1.5 |
CFM-UHT-PP3 |
CFM-UHT-PP5 |
Capacity(L/H) |
1500 |
3000 |
5000 |
Inlet Temperature() |
25-40 |
25-40 |
25-40 |
Holding Time(s) |
120-180 |
120-180 |
120-180 |
Sterilizing Temperature() |
95-121 |
95-121 |
95-121 |
Outlet Temperature() |
25-35 |
25-35 |
25-35 |
Cooling Water T() |
30 |
30 |
30 |
Steam Pressure |
0.5MPa |
0.5MPa |
0.5MPa |
Steam Consumption |
`150Kg/h |
`210Kg/h |
`280Kg/h |
Compressed Air pressure |
0.6MPa |
0.6MPa |
0.6MPa |
Compressed Air consumption |
50L/H |
50L/H |
60L/H |
Machine Size(LxWxH) |
7000x2000x2000 |
7000x2000x2000 |
7000x2000x2000 |
Weight |
1700kg |
2000kg |
2200kg |
