| Head Code: | round |
|---|---|
| Shape: | Equal |
| Connection: | Flange |
| Brand Name: | lanphan |
| Model Number: | VSSJAF |
| Place of Origin: | China (Mainland) |
| Type: | Flange |
| Technics: | Forged |
| Material: | Carbon Steel |
| Max size: | 3500 |
| Lining: | rubber |
| Market: | Saudi Arabia |
| HS code: | 73079900 |
Quick Details
Specifications
Product Description

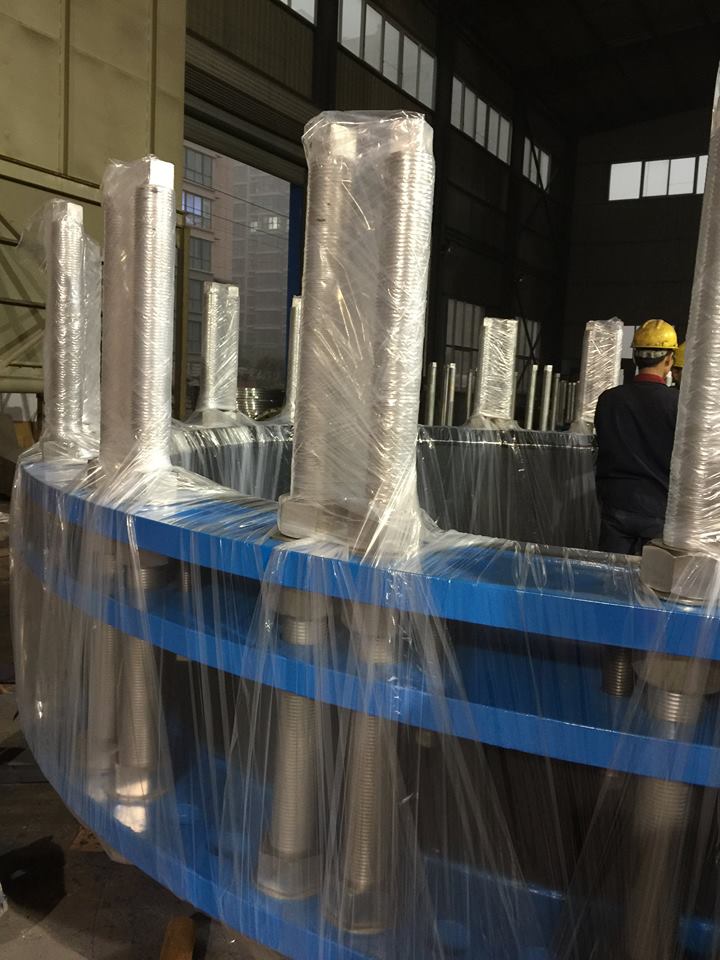

VSSJAF double flanges transmission joint(DISMANTLING JOINTS), also known as expansion joints, compensator. Double flange transmission joint is composed of body, sealing ring, follower and expansion short pipe, it is suitable for pipeline whose both sides are connected to flange, when installation, adjust length of product at both ends with flanges, screw down gland bolts and make it into a whole, and has certain displacement amount, to convenient for adjust dimension when installation. Double flange transmission joint is a new product for pump and valve products to connect to pipeline. It can also pass the axial thrust to the entire pipeline, which not only improve efficiency, and play a protective role for pump, valves and other equipment.
Flange drilling: DIN2501,BS4504,EN1092,JIS,ASME,AWWA C207
VSSJAF double flanges transmission joint(DISMANTLING JOINTS), also known as expansion joints, compensator. Double flange transmission joint is composed of body, sealing ring, follower and expansion short pipe, it is suitable for pipeline whose both sides are connected to flange, when installation, adjust length of product at both ends with flanges, screw down gland bolts and make it into a whole, and has certain displacement amount, to convenient for adjust dimension when installation. Double flange transmission joint is a new product for pump and valve products to connect to pipeline. It can also pass the axial thrust to the entire pipeline, which not only improve efficiency, and play a protective role for pump, valves and other equipment.
|
NO |
NAME |
QTY |
MATERIAL |
|
1 |
Body |
1 |
QT450-10, Q235A |
|
2 |
Sealing |
1 |
NBR,CR,EPDM |
|
3 |
Follower |
1 |
QT450-10, Q235A |
|
4 |
Limited short pipe |
1 |
Q235A |
|
5 |
Bolt |
n |
Q235A,35# |
|
6 |
nut |
n |
Q235A,20# |
Flange drilling: DIN2501,BS4504,EN1092,JIS,ASME,AWWA C207
Working pressure range:PN0.25-PN100bar
