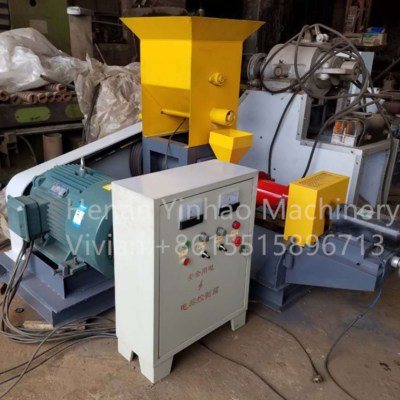

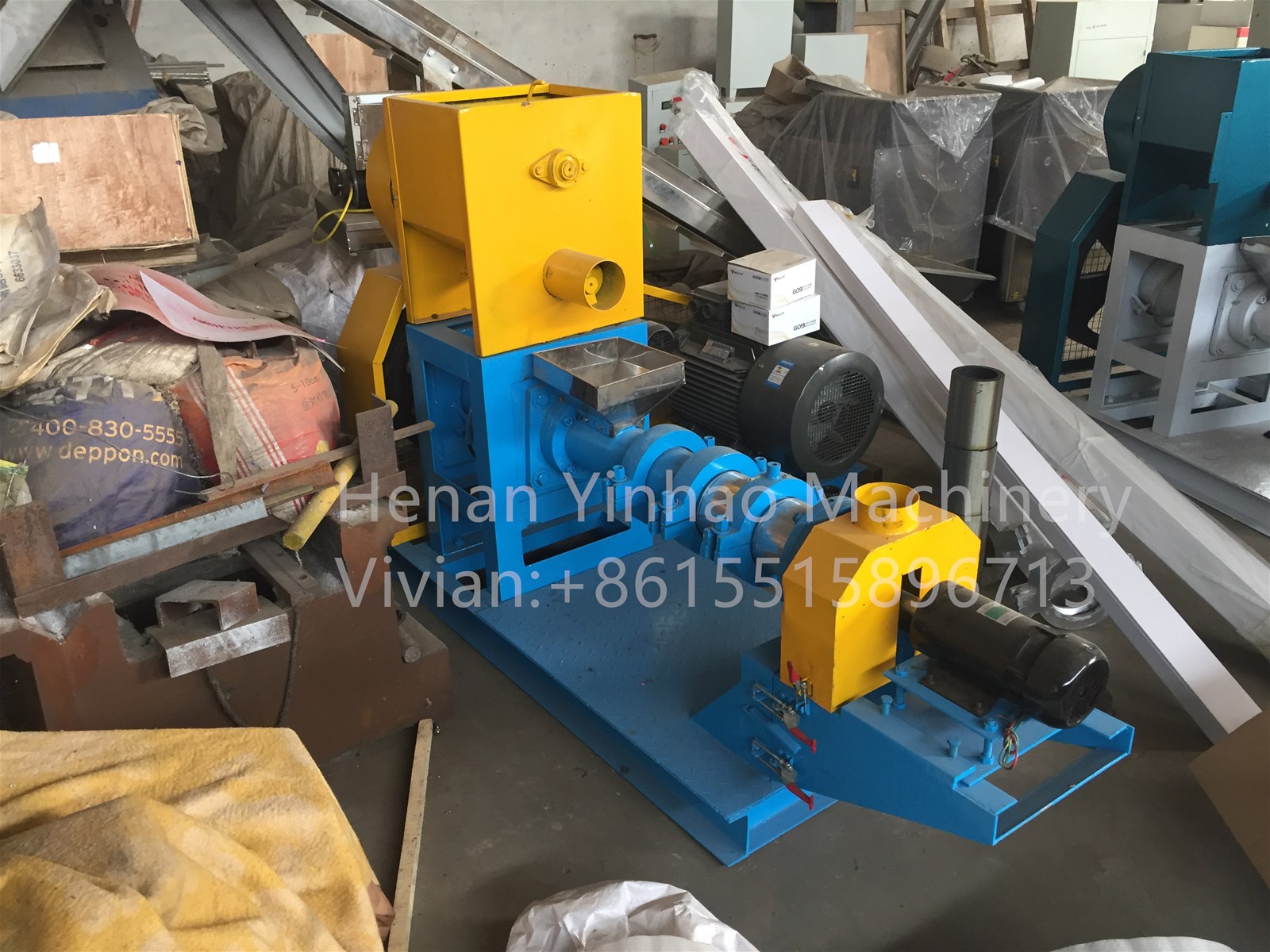

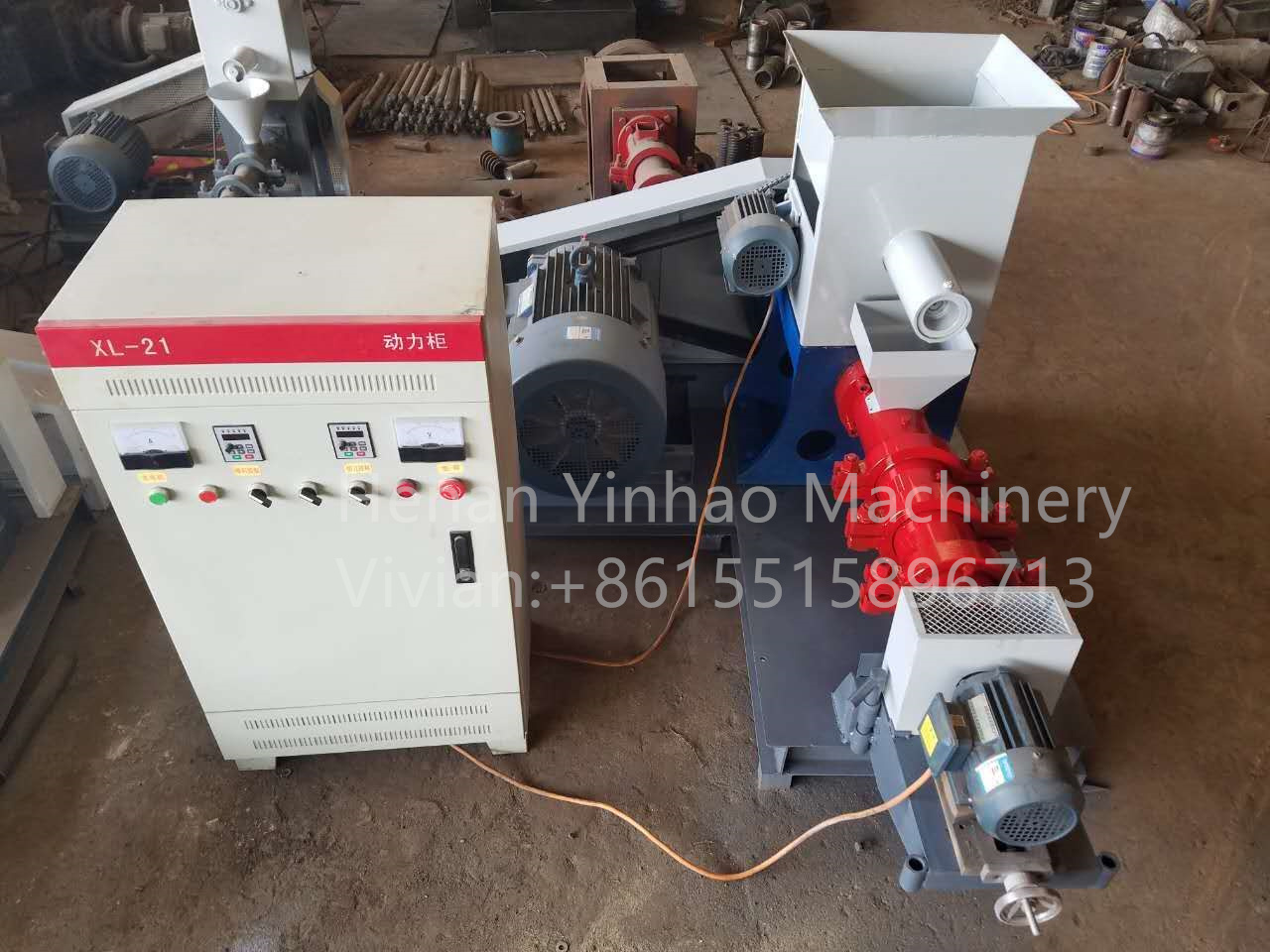

Small dog food processing equipment fish shrimp crab puffed pellet machine soybean meal multigrain feed machine I. Introduction for fish pelletizer machine

It Is widely used for producing maize flour, soybean flour or compound Powder, wheat bran into high grade aquatic feed pellets for fish, Catfish, shrimps, dog,.Cat etc. the puffing fish feed pellets can float on the water surface for over12 hours without water polution. According To your requirement and production scale, floating fish feed machine can Be classified into dry type machine and wet type machine.

II. Working principle for fish pelletizer machine

after the material is sent into feeding device, they will be extruded and Expanded by the screw shaft with high pressure and temperature which Makes the raw material fully cooked and sterilized. Then the expanded Material will be formed into pellets by shaping mould. You can change Different moulds to make pellets with different diameters. after that a Cutting device will cut the formed pellets into different length as Required.

III.Features for fish pelletizer machine

1.According to different requirements, variety shapes of high-grade feed pellets for fish, shrimps.Etc

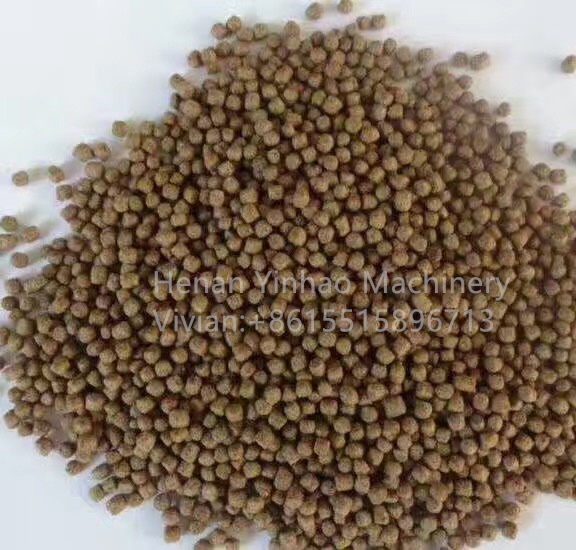

2.the finished pellets can keep floating for 12 hours without pollution to water.
3.the floating time can be controlled by the puffing degree adjustment
4.Floating fish feed machine can make pellet from diameter 1mm-12mm just by changing the mould.
5.Electric heating device is adopted which can improve the feed expansion rate and pellets floating time.
6.High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and
Also makes the pellets easily to digest.
7.the cutting device can be adjusted to make pellets of different length.
8.the Wet type machine needs a boiler to make steam which can conduct steam to the conditioner and ripen the raw material in advance.

IV. Complete flow chart for fish pelletizer machine

Raw material preprocessing--crushing--mixing--extruder--cooler--dryer--flavoring

V. Technical datas for fish pelletizer machine

Model	Capacity kg/h	Motor Power kw	Cutting Power	Screw Diameter
YHFP50	60-80	11 kw	0.4 kw	50 mm
YHFP60	120-150	15 kw	0.4 kw	60 mm
YHFP70	180-250	18.5 kw	0.4 kw	70 mm
YHFP80	300-350	22 kw	0.4 kw	80 mm
YHFP90	400-450	30 kw	1.1 kw	90 mm
YHFP120	500-700	55 kw	1.1 kw	120 mm
YHFP135	800-1000	75 kw	1.1 kw	133 mm
YHFP160	1200-1500	90 kw	1.5 kw	155 mm
YHFP200	1800-2000	132kw	1.5 kw	195 mm

Service

1 year warranty for whole machine(except for the mould and rollers).

24 hours techinical support online.

Calling service.

Company information

Henan Yinhao Machinery Equipment Co.,Ltd (Original Zhengzhou Huizhong Machine Factory)is located in Zhengzhou. Yinhao Machine Co.,Ltd is a nation-appointed professional manufacturer of Machine for agriculture, forest, fertilizer for many years. Now it becomes a technology enterprise that integrates scientific research, exploitation and manufacture as a whole. this company has not only researched three series of Pellet mill, briquette press, crushers, hammer mill, mixer, cooler and dryer Machinery but also the Complete sets of feed, forest, fertilize, charcoal coal energy machinery equipment with more than ten kinds of high-quality products!

They have been exported to Southeast Asian, Europe, Africa, and America, and so on.Main products: Biomass pellets and briquettes pressing machines, wood chipper, shredding, grinding machines, air flow drier and cooler, rotary drier, screener and other related equipment. They have passed the strict technical test by the related government offices and got good reputation form the customers!

Yinhao Machine Company is always proving the customers with the first-class service and high-quality products, specially the high technology. with the idea of making contributions to the human beings and repay our country with industry, the company will create a bright future together with the friends from all over the world.

Our company is always improving his design to confirm to the world market. High quality, creativeness, reliability are our strong points.Your satisfaction is our permanent pursue!

Old and New friends, welcome to our factory!

FAQ

1.Q:Are you a factory or trading company?

A:We are the professional manufacturing factory and we have exported our products to many foreign countries.

2.Q:Where is your factory located? how can I visit there?

A:Our factory is located in Zhengzhou City( Henan Province, China, ).You can fly to Zhengzhou Xinzheng International Airport and we can go to airport to pick you up directly.

All our clients from home or abroad are warmly welcome to visit our factory and inspect our products!

3.Q:how does your factory do regarding quality control?

A:"Quality is priority. We always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained CE, SGS authentication.
