| Brand Name: | Lensen |
|---|---|
| Model Number: | LS-RDIO0808 |
| Place of Origin: | China (Mainland) |
| Working Frequency: | 433MHz |
| Port Number: | 8 |
| Type: | Other |
| power output: | 1w |
| communication way: | radiowave |
| frequency: | UHF |
| input type: | 8 active digital input |
| output type: | 8 relay output |
Quick Details
Specifications
Introduction

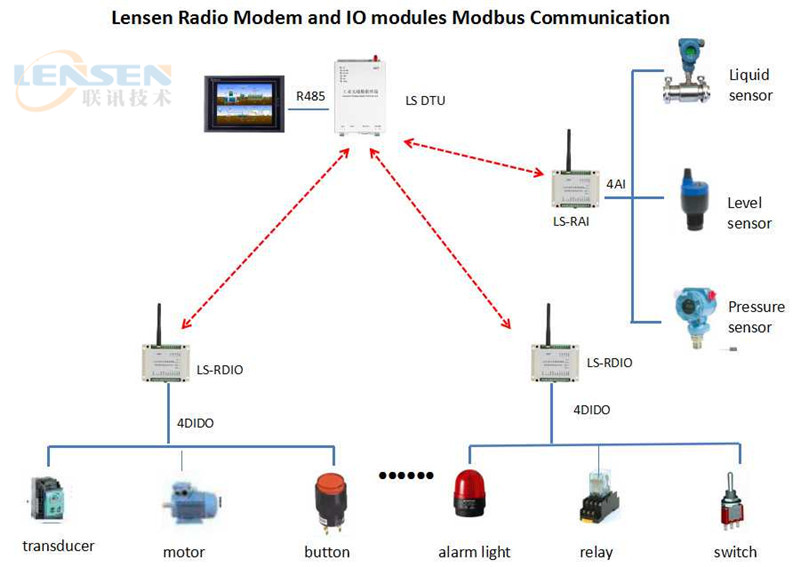

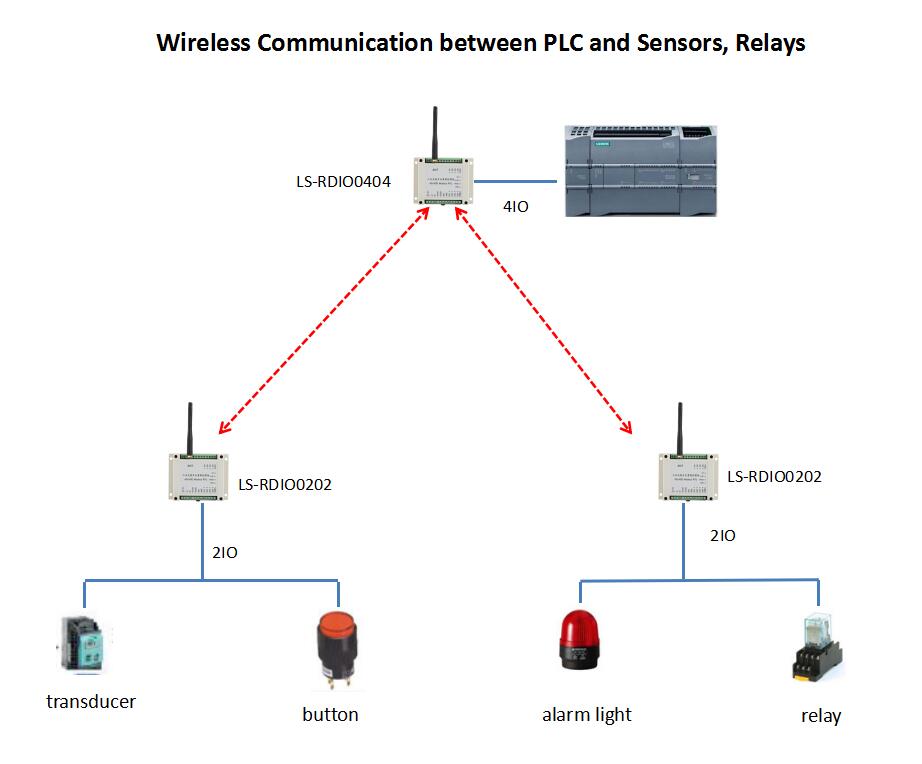

LS-RDIO0808 Modbus RTU is a 1W I/O module, 8 isolated digital inputs, 8 isolated relay outputs, 1RS485 (wireless RS485 customizes).Wireless control 2km-3km. Use for pump control, water levelMonitoring, andmotor, valve, light on-off wireless control.
· Transparent I/O System, no programming required
· Not need internet, no third party cell, no monthly fees
· You have full control over your own carrier
· Real time status feedback from the remote site
· Fast installation and easy setup
Parameter:
· Input: 8 isolated digital active inputs (passive input customize)
· Output: 8 isolated relay passive contact outputs, contact load 5A@220V AC, 5A@30V DC.(active output customize)
· Protocol: Modbus RTU
· Collocated with a wireless data module whose transmitting distance is about 2km-3km; the working frequency 433MHz (400-470MHz); RF power: 1W; Receiving sensitivity: -123dBm
· Receiving current: <50mA; transmitting current: 600mA
· Power supply: DC 9V-36V
· Dimension: 145mm*90mm*40mm
· Application:
· Lighting Control Systems
· Wireless Pump Control
· Wireless Valve Actuation
· Conveyor Control
· Grain Augers
· Engine Control
· Tank Level Monitoring
· PLC Activation
· SCADA
