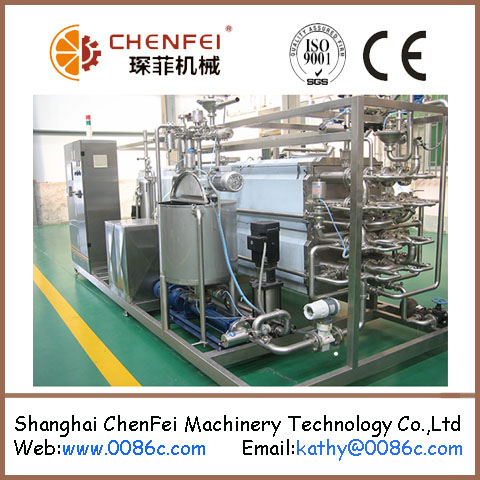

Tubular sterilizer(Aseptic Type)

the equipment is made of the material barrel; Conveying pump, tubular heat exchanger, retainer, hot water system, CIP Cleaning system and control system and etc. In the design regenerative heat Exchange technology is used, improving the heat transfer efficiency and save Energy.
Operating system uses HMI, which is convenient to intuitively grasp at Equipment running status and to control system equipment for real-time control, Collection and storage temperature.

Include:

Tubular Heat exchange: the heat exchange area is large, low energy consumption

Centrifugal Pump:Used for sterilization and washing water

Retainer: Materials in the retainer for sterilization

Hot Water generator: plate structure,Used for the Production of hot water

Independent SIP system: Independent SIP Tank,Increase the system security Performance, reduce production auxiliary time.Heat reRecovery System, saving energy about 35%

the shell side of the pipeline cleaning, Prevent pipe scale, increase the heat transfer effect

Pipeline emptying system, prevent the PipelineFrost Splitting



Technical parameter:

            Capacity 3000L/H

Mechanical Size:8500x2250x2200mm

Inlet Temperature 20~60

Outlet Temperature 36~38

Sterilizing Temperature125

Sterilizing Time             15S

            Steam Consumption:850Kg(5kg/cm2)

Cooling Water temperature 25

             Cooling water consumption 80T/H

after Sterilization all connection and valves have steam protection

Hot Water heating plate,Sealed tank

Independent Control cabinet, PLC man-machine interface control
