| Type: | Other |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | CE |
| Weight: | 1400kgs |
| Voltage: | 0 |
| Brand Name: | YAHANDA |
| Usage: | Used for fixing and clamping workpieces flexibility |
| Dimensions: | 3000x1500x850mm |
| Model Number: | YHD28S3015 |
| Place of Origin: | China (Mainland) |
| Surface Treatment: | Hard chrome plating |
| Material: | C45R |
| Thickness: | 12.5 & 18 & 25mm |
| Grid pattern: | 50x50mm & 75x75mm & 100x100mm |
Quick Details
Specifications

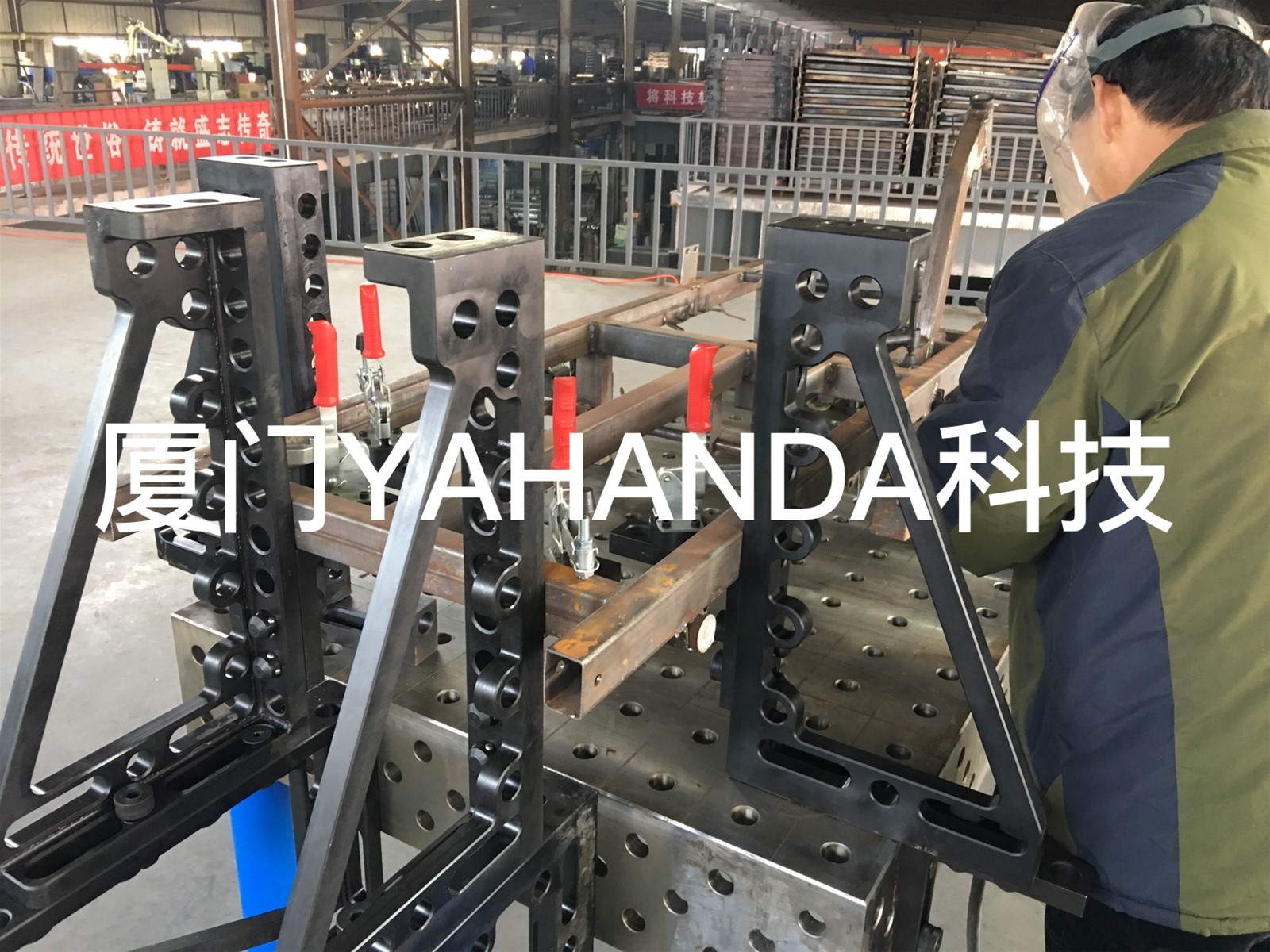

Product Name: 3D Welding table
Series: D28 & D22 & D16
with the universal 3D welding table, any work pieces can be positioning and clamping.
3D clamping system is today indispensable in steel fabrication and construction and anywhere else where welding, clamping and positioning is done.
You can accurately and rapidly position, clamp, tack and weld for the machine construction, vehicle production, the steel and pressure vessel industries, in prototype shops and in testing facilities.
with the universal 3D work and welding table, there is now a surface that meets every requirement both in the horizontal and vertical range. You can precisely and rapidly fabricate your components with this modular system; machine housings, racks, frames, cross beams, brackets, handrails, stairs, doors, control cabinets, sheet metal coverings, etc.
Product Features:
1. Modularity and flexibility.
Can be connected and changed arbitrarily according to the shape of workpiece.
2. High precision.
the precision can reach decimillimetre(dmm) for fixing and clamping.
3. Quick fixing and clamping.
Only spending a few minutes to fix and clamp workpieces from one to another.
4. Ease to operate.
Only 2 hours, any worker can learn how to use it quickly.
5. High price-performance ratio.
1 set of modular flexible fixture can replace all traditional dedicated fixtures.
Saved a lot of time, labor, material resources and funds for enterprises.
6. Clean, tidy and environmental Friendly.
Compared with mountains of rusty dedicated fixtures, modular flexible fixtures are the optimal choice.
Product specifications:
YHD28S1010 1000x1000x200mm / YHD16S1050 1000x500x100mm
YHD28S1212 1200x1200x200mm / YHD16S1010 1000x1000x100mm
YHD28S1515 1500x1500x200mm / YHD16S1015 1000x1500x100mm
YHD28S2010 2000x1000x200mm / YHD16S1020 1000x2000x100mm
YHD28S2412 2400x1200x200mm / YHD16S1212 1200x1200x100mm
YHD28S3015 3000x1500x200mm / YHD16S1515 1500x1500x100mm
YHD28S4020 4000x2000x200mm / YHD16S2412 2400x1200x100mm
