Specifications

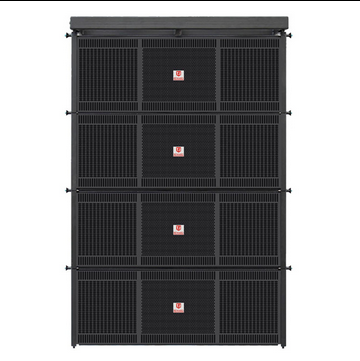

The large format LA-215 is with 2*15''LF, 4*8''MF, 3*3''HF, 4 way line array. This externally powered, high efficiency line array module integrates low, mid and high frequency transducers in a single unit. Designed for use in large-scale events in stadiums and arenas, the LA215 offers a number of important improvements in terms of performance and weight reduction.

The rugged, trapezoidal enclosure is built using Birch plywood and covered with a durable paint finish. The captive rigging system splay angles range from 0o to 9.6o and can be adjusted in 0.8o increments from 0o to 3.2o and 1.6o increments from 3.2o to 9.6 o allowing a wide range of column curvatures to be accomplished.

Model	LA-215
Frequency response	60Hz-18KHz(±3dB) 55Hz-20KHz(-10dB)
Sensitivity	LF 99dB MF 103dB HF 112dB
Max SPL	LF136dB MF 139dB HF 141dB
Nominal Impedance	LF 2x8 ohms MF 8ohms HF 16ohms
Power Handling	LF2x700watts MF 700watts HF 300watts
Crossover Frequency	680Hz/2.8KHz
Dispersion(-6dB)on	Horizontal 90°Varies with array size and configuration
Suspension Hardware	Proprietary QH rigging system
Input Connectors	2x8-core plug 1& 2(HF) 3& 4(MF) 5& 6(LF) 7& 8(LF)
Dimensions(HxWxD)	72x1390x595mm
Net Weight	85kg

Feature :
◆Three-way large-format line array module

◆Components: 2X15"ND+4X8"ND+2X3"ND+Horn

◆RMS Power Handling: LF: 1200W MF: 500W HF: 300W

◆Captive rigging system integrated in the cabinet design

◆Detachable front dolly panel

Applications:
Medium-large scale venues including Touring performance , Stadium Theater
, concert hall, auditorium, theatre, Music Halls, Night clubs, Large Discotheques,
touring show, rental market etc
Company introduction

Company introduction

T. I Reward Audio CO., LTD is a global designer, manufacturer and distributor of high quality pro audio equipment, our production line including indoor outdoor line array speaker, pa speaker, pro subwoofer, monitor speaker, power amplifier, processor and wireless microphones. OEM and customized service is well provided for our customers.

T. I Reward Audio with the highest lever and most luxury raw material in the world, and offer to clients with the normal Chinese price.

1. Pure Iron System, it's the main part of the speaker driver units, such as pure iron, titanium, using electrical pure iron, high permeability, is the industry's most extravagant speaker material, compared to the speaker than ordinary iron sheet used 80 times to 100 times, particularly low temperature, characterized by a continuous sound particularly good, there is no magnetic circuit eddy current status, linear supple, not in haste.

2. Conical Wood horn, wood horn made from a more high-quality Russian birch plywood in high temperature and pressure, and unit-specific parameters of our own research and development agreement, wooden horn production cost is 5 times that of conventional plastic horn, professional PA system HI FI level production, is characterized by not with vibration woofer cavity interference sound particularly clear, detailed, this wooden horn sound reduction is particularly high.

3. Speaker research and production, our company has independent R & D capability of the speaker, from raw material procurement until the operating instructions issued to the final speaker line QA QC made by our technical team tracking execution. With the development and production of world-class speaker level.

For example, we strictly control the voice coil wire purity level, especially in the voice coil made of glue when we certified by the EU more than 220 degrees Celsius, 100 hours of power test, can provide relevant information parameters. Our usual cone of high- quality British UKN cone, he can better restore and release sound. We use a magnet Y35 quality international standards. T Washer We use top electrical iron, 900 degrees C after 8 hours-temperature annealing processing, so that the carbon content close to zero. Our Speaker Box frame belongs to our specially treated surface temperature electrostatic spray, and balanced treatment, such as selvedge position plucked location, location washer, we use CNC lathe finishing to ensure that the speaker is not at work There is an equilibrium problem. We open with a mold clamping, so that the speaker does not work exist selvage shedding problem.

We focus on new audio technology, fashion appearance, market flexible structure research. Our PA products in pursuit of high technology, fashion, plasticity characteristics.

Over 20 years of technical experience of our sound engineers are the foremost guarantee to all of our operation. Our electro-acoustic professionals and staffs are working for the company dedicatedly and energetically. Insistent training with serious, systematic and sophisticated QA concept to our staffs had built up solid foundation to our quality as well as to our success in the industry.

T. I Reward audio products ideal for rental market, installation market for events, multimedia, musicals, concert halls, theatres, church and other application …We never stop the music. We can easily meet all requirements for clients in quality, price and box design. Browse & our products & contact us for professional help and advice .
