| Use: | Coal Mining |
|---|---|
| Processing Type: | Forging |
| Material: | Carbide |
| Certification: | AISI |
| Machine Type: | Drilling Tool |
| Type: | Drill Bit |
| Model Number: | 1304 |
| Brand Name: | TIANYU |
| Place of Origin: | China (Mainland) |
| Product name: | Non leached PDC cutters for PDC drill bits |
| Process: | Forging |
| Material: | Diamond powder and tungsten carbide |
| Use: | To make PDC drill bits |
| Application: | Geological drilling and water well drilling |
| Diameter: | 13.35 |
| Thickness: | 4.5 |
| PDC layer: | 1.2-1.4mm |
| Other Size: | 1004PN 1204PN 1304PN |
| We also supply PDC cutters: | For oil and gas drilling PDC drill bits |
Quick Details
Specifications
PDC cutter is made of superior diamond powder and tungsten carbide substrate,
adopt new process. Complete C-C bond between the diamond particles makes the diamond layer
have high and wear-resistance and strength. Multi-tooth structure and post process makes the
Interface combined with more solid, uniform and has higher heat stability and impact toughness.
Coal mining Series product Sequence table/size
Product specification
D(mm)
H(mm)
PCD layer(mm)
1004PN
10.40
4.5
0.9-1.1
1204PN
12.40
4.5
1.2-1.4
1304PN
13.35
4.5
1.2-1.4
1308PN
13.35
8.0
1.4-1.6
Oil
exploration Series PDC Cutter

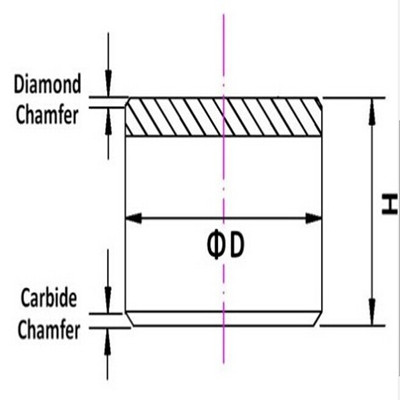

Dimension code
Diameter(D)
Height total(H)
Height diamond(E)
Diamond Chamfer
Carbide Chamfer
1308
13.44
8.0
2.0-2.5
0.3×45°
0.5×45°
1310
13.44
10.0
2.0-2.5
0.3×45°
0.5×45°
1313
13.44
13.2
2.0-2.5
0.3×45°
0.5×45°
1610
15.88
10.0
2.0-2.5
0.3×45°
0.5×45°
1613
15.88
13.2
2.0-2.5
0.3×45°
0.5×45°
1913
19.05
13.2
2.0-2.5
0.5×45°
0.5×45°
1916
19.05
16.0
2.0-2.5
0.5×45°
0.5×45°
Tydrillbits supply PDC cutters for coal mining and oil exploration. Welcome to purchase quality and
best price PDC inserts cutters from our company.

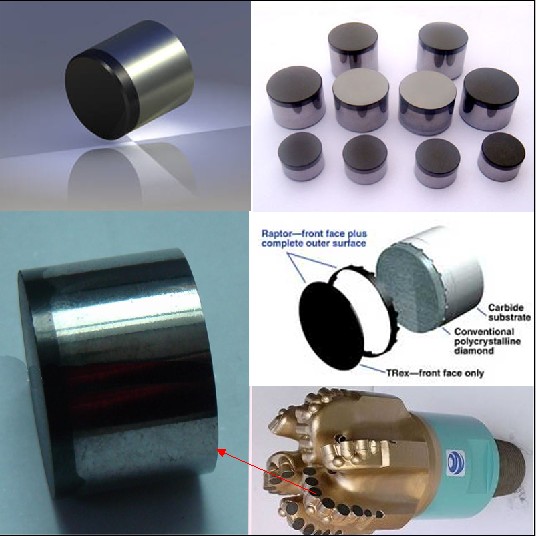

Application of PDC cutters
Packaging and shipping
Packaging and shipping
Packaging is in plastic box, 50 pieces or 100 pieces are in one box.
Shipping: Samples are shipped by express, batch products are shipped by sea or by air.
