| Brand Name: | PANIO |
|---|---|
| Products Status: | Stock |
| Color: | BLACK |
| Thermal conductivity: | HDMI |
| Specific Gravity: | HDMI |
| Place of Origin: | Taiwan |
| Model Number: | HD1000 1002 |
Quick Details
Specifications

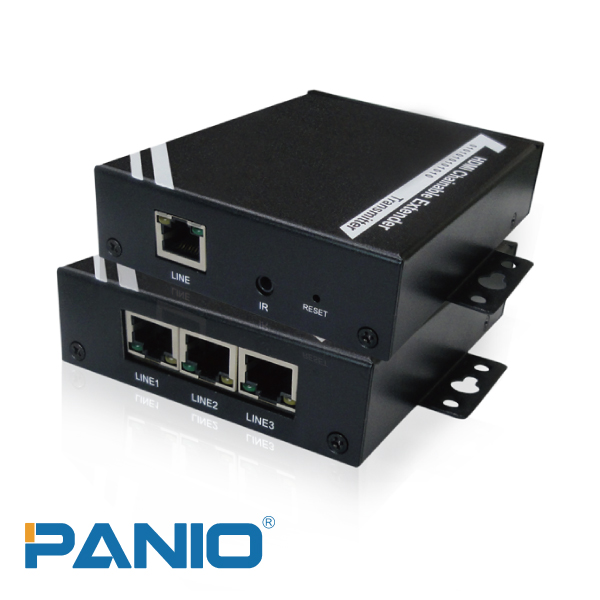

HDMI / RS-232 / IR Daisy Chain over IP Extender |
[HD1000-1002] is the high performance, cost-effective HDMI Extender over CAT. 5e/6 up to 100m at the best strengthened competitive price in the market. HD1000 / 1002 supports Full HD 1080p video and cascaded-chainable with high flexibility for expansion. |
Uses easy to install, inexpensive CAT. 5e/6 cables |
Cascaded-chainable receiver up to 32 layers(1000M 1080P) |
HDMI Digital Audio/Video extended distance up to 100 meters (330 feet) between Transmitter(HD1000) and Receiver(HD1002), supports with HD video 1080P and PC resolution 1920x1200@60Hz signals, over CAT.5e/6 cabling. |
Supports video high resolution up to 1920x1080, 1080p |
Supports HDMI 1.3a |
HDCP compliant |
Supports Default EDID, and Selected EDID modes. |
HDTV compatible (720p, 1080i, 1080p) |
Supports RS-232 (Serial) |
IR (Infrared remote) enabled |
Supports Local HDMI monitoring port |
No software / driver installation required. |
Each receiver (HD1002) links cascade-chainable 2 receivers(HD1002) |
Rack mountable |
Made in Taiwan. |
Remark: Suggest using , use other poor quality cable may lead to signal weaken that unable to achieve the satisfactory performance. |
