Introduction

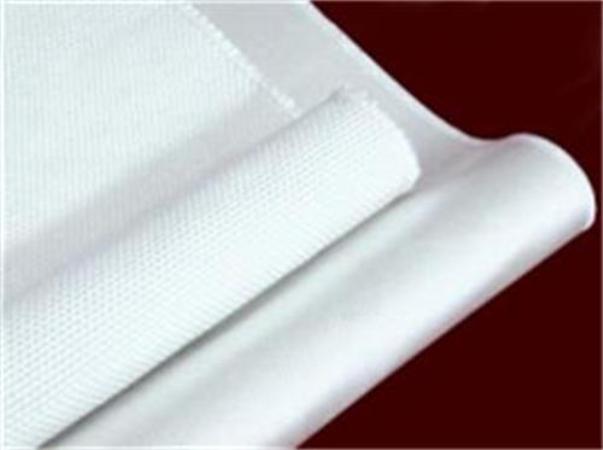

Fiberglass Cloth is produced by high quality fiberglass fiber and woven from yarn. It can be used for different environment according to the pre-texturized or not. the working temperature is 550°C (1020°F), and has good electrical insulation properties, thermal insulation properties and mechanical properties.

Specifications

Type	Thickness (mm)	Width (mm)	Weight (g/m2)	Weave	Texturized	Roll Length (m/roll)
GC0.6	0.6	1000	610	Plain	Yes	100
GC0.8	0.8	1000	680	Plain	Yes	50
GC1.2	1.2	1000	850	Plain	Yes	50
GC1.4	1.4	1000	1000	Plain	Yes	50
GC1.7	1.7	1000	1200	Plain	Yes	30
GC2.0	2.0	1000	1300	Plain	Yes	30
GC3.0	3.0	1000	2000	Twill	Yes	30
GC200	0.19	1270	204	Plain	No	200
GC430	0.43	1000	430	Twill	No	100
GC650	0.6	1000	650	Satin	No	100

Note:the aboveThickness,widthandWeightData are there in the actual production range of±10%

Main Performance

?Could be used in the environment of -70°C~1000°C and can be instantaneous high temperature resistance;

?Resistance to ozone, oxidation, light and weathering;

?High strength, high modulus, low shrinkage, no deformation;

?Good thermal insulation;

?There is still some residual strength when operated over the working temp;

?Resistance to corrosion;

Application

?Reinforcing material for demanding personal security and mechanical properties;

?Basic cloth for fire curtain, welding curtain and coating cloth;

?the boiler insulation and pipe bandaging;

?Used in boat building and repair;
