Introduction

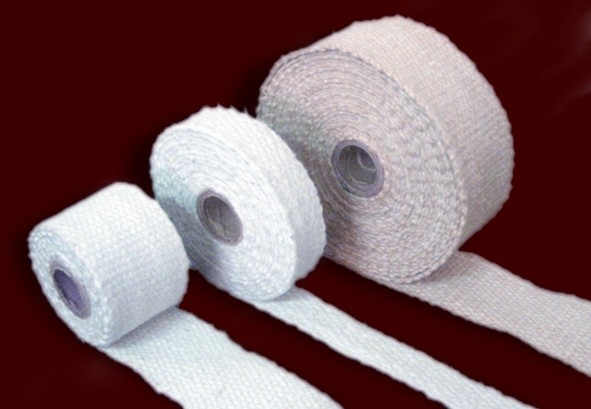

Fiber Tape is produced by high quality refractory ceramic fiber and woven from yarn. It can be used for high temperature applications up to1050°C. the cloth is reinforced with fiberglass filament, and optional SUS304 wire (Inconel/alloy steel wire). Or even short working temperature could be reached to1260°C. It has good resistance to acid corrosion, resistant aluminum, zinc and other molten metal erosion.

Parameter table

Type	Data
Color	White
Max working temp	1260°C
Fiber diameter	3~5μm
Heat shrinkage(1232°C,24h)	3.5%
Thermal conductivity(538°C,8pcf)	0.130w/mk
Al2O3	45~48%
Fe2O3	0.7~1.2%
CaO&NaCl	0.43%
Shot	< 8.5%
Breakdown voltage	5kv/mm
Resistance	5x10 10Ω
Moisture content	< 2%
Organic fiber content	< 20%

Continuous working temp:1050°C(1900°F);

Maximum working temp:1260°C(2300°F);



 Ceramic fiber tape(Metric system)

Articles	Working Temperature (°C)	Width (mm)	Thickness (mm)
Reinforced by E-glass filament	650	30,40,50,60,70,75,80, 100,120,150	2,3,5
Reinforced by stainless steel wire	1050
Sintered Tape(not burning)	1050

Articles	Working Temperature (°F)	Width (in)	Thickness (mm)
Reinforced by E-glass filament	1200	1/2", 1", 1-1/2", 2", 3", 4", 6"	1/16" 1/8"
Reinforced by Inconel/alloy steel wire	1900
Sintered Tape(not burning)	1900

Note:

1. All the listed are plain weave with selvage.

2. Roll length is30m(100ft) or50m(164ft).

3. the other special specifications, please contact us.

Application

lHigh temperature insulation of kilns, pipes and vessels;

lSealing of doors, valves, flanges;

lRaw material of fire doors and fire shutters;

lHigh temperature furnace curtain;

lInsulation of engine and instrument;

lFireproof cable coverings and high temperature fireproof materials;

lCovering insulation cloth;

lFlue liner and other high temperature filtration;

lSound-absorbing and other used to replace asbestos applications;
