Introduction

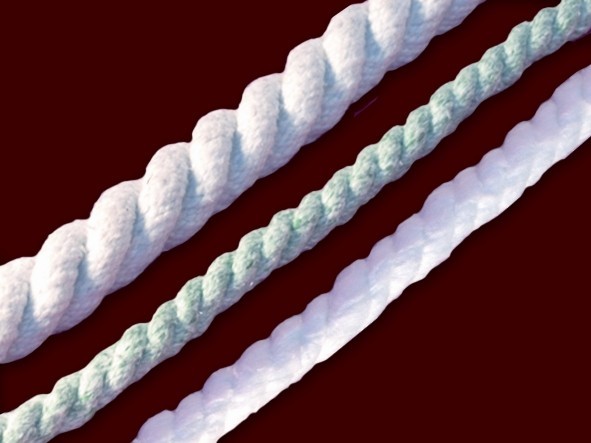

Fiber Braided rope is produced by high quality refractory ceramic fiber and woven from yarn. It can be used for high temperature applications up to1050°C. the cloth is reinforced with fiberglass filament, and optional SUS304 wire (Inconel/alloy steel wire). Or even short working temperature could be reached to1260°C. It has good resistance to acid corrosion, resistant aluminum, zinc and other molten metal erosion.

Parameter table

Type	Data
Color	White
Max working temp	1260°C
Fiber diameter	3~5μm
Heat shrinkage(1232°C,24h)	3.5%
Thermal conductivity(538°C,8pcf)	0.130w/mk
Al2O3	45~48%
Fe2O3	0.7~1.2%
CaO&NaCl	0.43%
Shot	< 8.5%
Breakdown voltage	5kv/mm
Resistance	5x10 10Ω
Moisture content	< 2%
Organic fiber content	< 20%



Continuous working temp:1050°C(1900°F);

Maximum working temp:1260°C(2300°F);

1.Ceramic fiber twisted rope

Reinforced	Working Temperature (°C)	Diameter (mm)
E-glass filament	650	3,4,5,6,8,10,12,14,15, 16,18,20,25,30,35,40,50
Stainless steel wire	1050

 2.Ceramic fiber 3 strand twisted rope

Reinforced	Working Temperature (°C)	Diameter (mm)
E-glass filament	650	6,10,14,16,20 22,25,30,40,50
Stainless steel wire	1050



3.Ceramic fiber 3 strand roving twisted rope

Reinforced	Working Temperature (°C)	Diameter (mm)
E-glass filament	650	6,9,13,16,20 22,25,32,38,40,50

Application

L        High temperature insulation of kilns, pipes and vessels;

L        Sealing of doors, valves, flanges;

L        Raw material of fire doors and fire shutters;

L        High temperature furnace curtain;

L        Insulation of engine and instrument;

L        Fireproof cable coverings and high temperature fireproof materials;

L        Covering insulation cloth;

L        Flue liner and other high temperature filtration;

L        Sound-absorbing and other used to replace asbestos applications;
