Features:

1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.

2.Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.

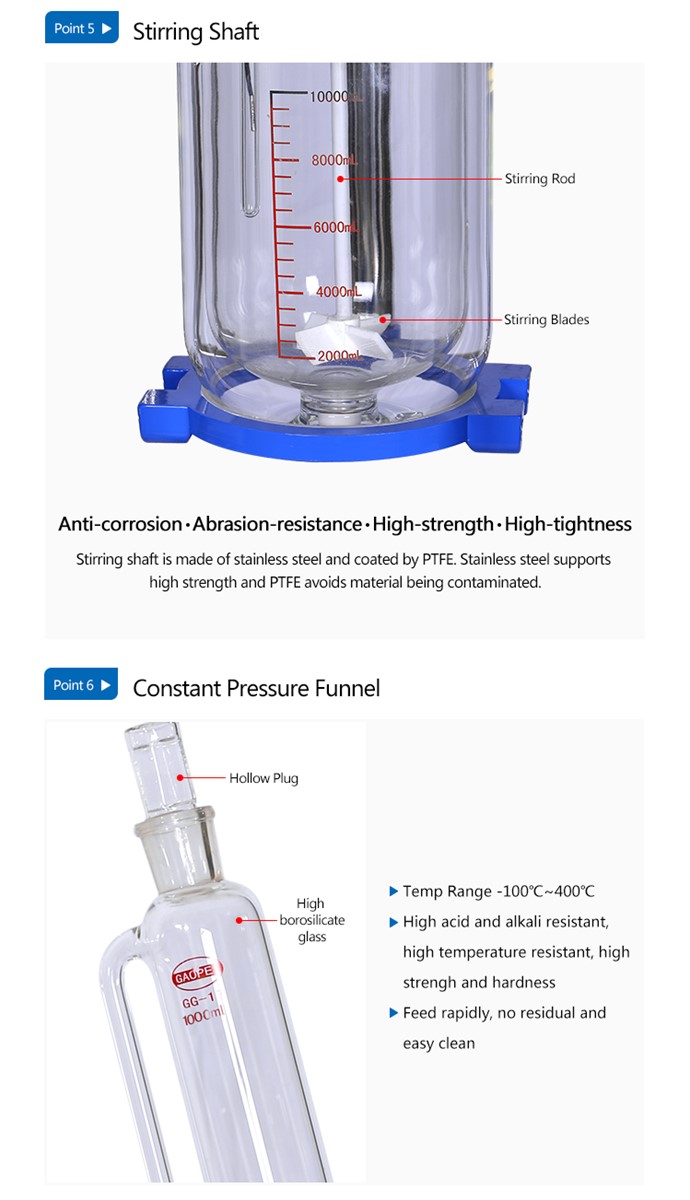

3.Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.

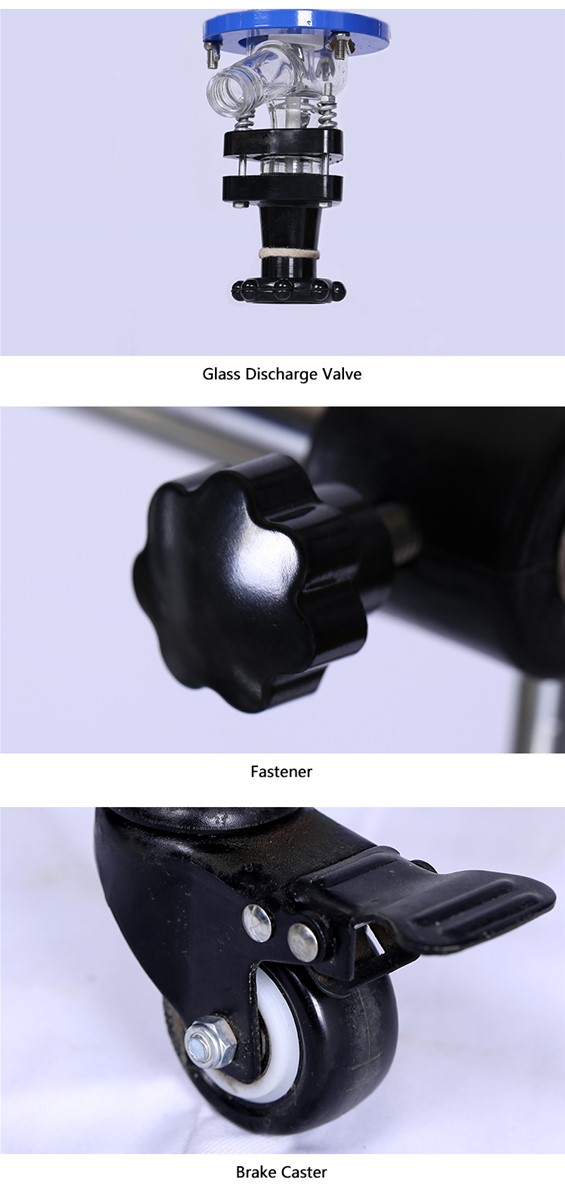

4.Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.

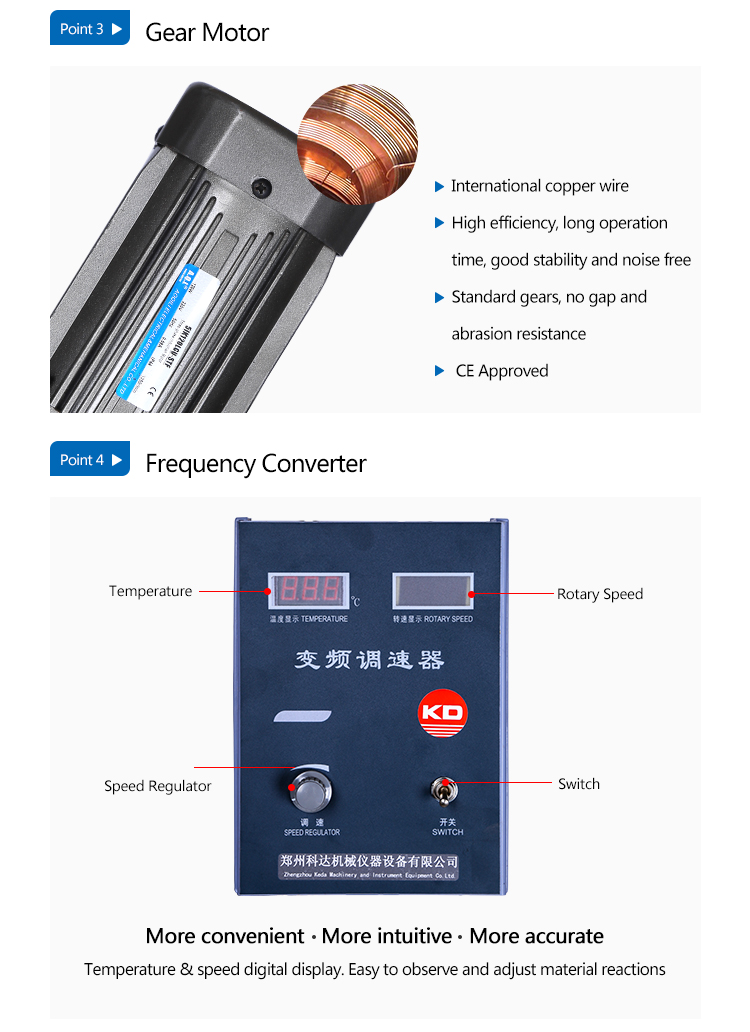

5. Frequency control speed gear motor, smooth running, high torque, automatic booster, , domestic industry-leading.

9.Explosion proof is optional.

Ancillary equipment:

_{Circulating water vacuum pump:To provide a vacuum source}

_{Cool chiller:low temperature reaction and Re-flux, condensation}

_{Circulating water/oil bath:Thermal power}

_{High and low temperature machine: high and low temperature experiment reaction}

_Notes:

_{1.Keep every glass part clean before installation.}

_{2.Each standard port, milling mouth and sealing surfaces should be coated with a small amount of vacuum grease, to keep good sealing.}

_{3.Please read the manual carefully before installation,use, maintenance.}

_{4.Your voltage should be in consistent with the provisions of this instrument.}

_{5.No load is not suitable for high speeds.}

_{6.The ambient temperature and humidity have big effects on the the electrical box life. Please keep the governor and motor dry.}

_{7.The installation and use should be operated by professional operators.}

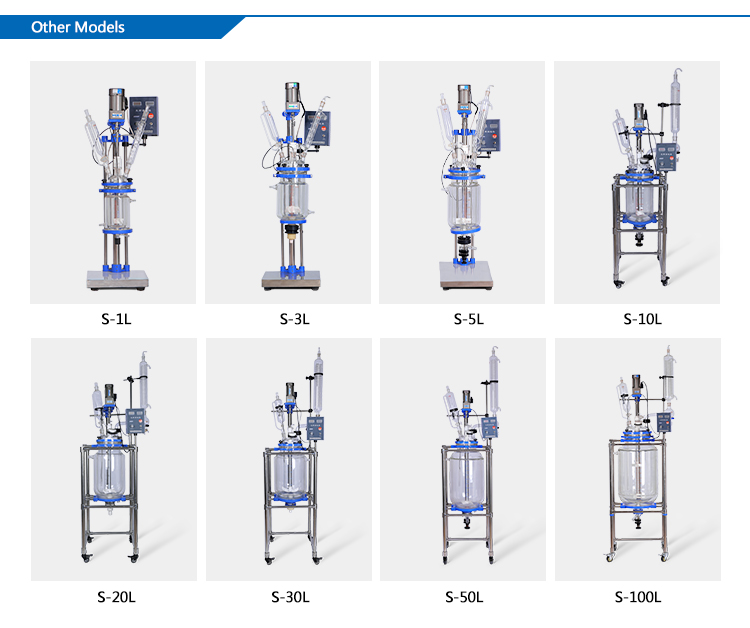

Model	S-1L	S-2L	S-3L	S-5L	S-10L	S-20L	S-30L	S-50L	S-100L
Power supply	AC 220V/50HZ 110V/60HZ
Stirring power(W )	60 1/3  Gear Motor				120 1/3  Gear Motor				180  1/3 Gear Motor
Stirring speed(rpm)	0~600   (Max. 1300)
Motor torque (g/cm)	2000	2400	2400	4800	1000	1200	1200	1500	3000
Capacity(L)	1	2	3	5	10	20	30	50	100
Frame	Floor Type				Overall 304 Stainless Steel Frame

1. Explosion-proof: The Stirring Power: 180W, 250W, 370W.

2. Power Supply: 220V/50HZ or 110V/60HZ
