| Type: | TFT |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | MCU interface |
| Resolution: | 320x240 |
| application: | TFT |
| Model Number: | LMT035KDH03 |
| Place of Origin: | China (Mainland) |
| resolution: | 320x240 |
| Size: | 3.2 inch |
| Interface: | MCU |
Quick Details
Specifications
3.5 inch 320xRGBx240 TFT
-QVGA 65K colors
-Parallel or SPI Interface
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
-QVGA 65K colors
-Parallel or SPI Interface
-Low Power Consumption
-Built-in TFT Controller
--LED Backlight Driver and touch panel optional.
| Item | Description |
| Product Name | 3.5 Inch 320x240 TFT with touch screen |
| Model No. | LMT035KDH03-NHA |
| Number of dots | 320 X 3(RGB) x 240 |

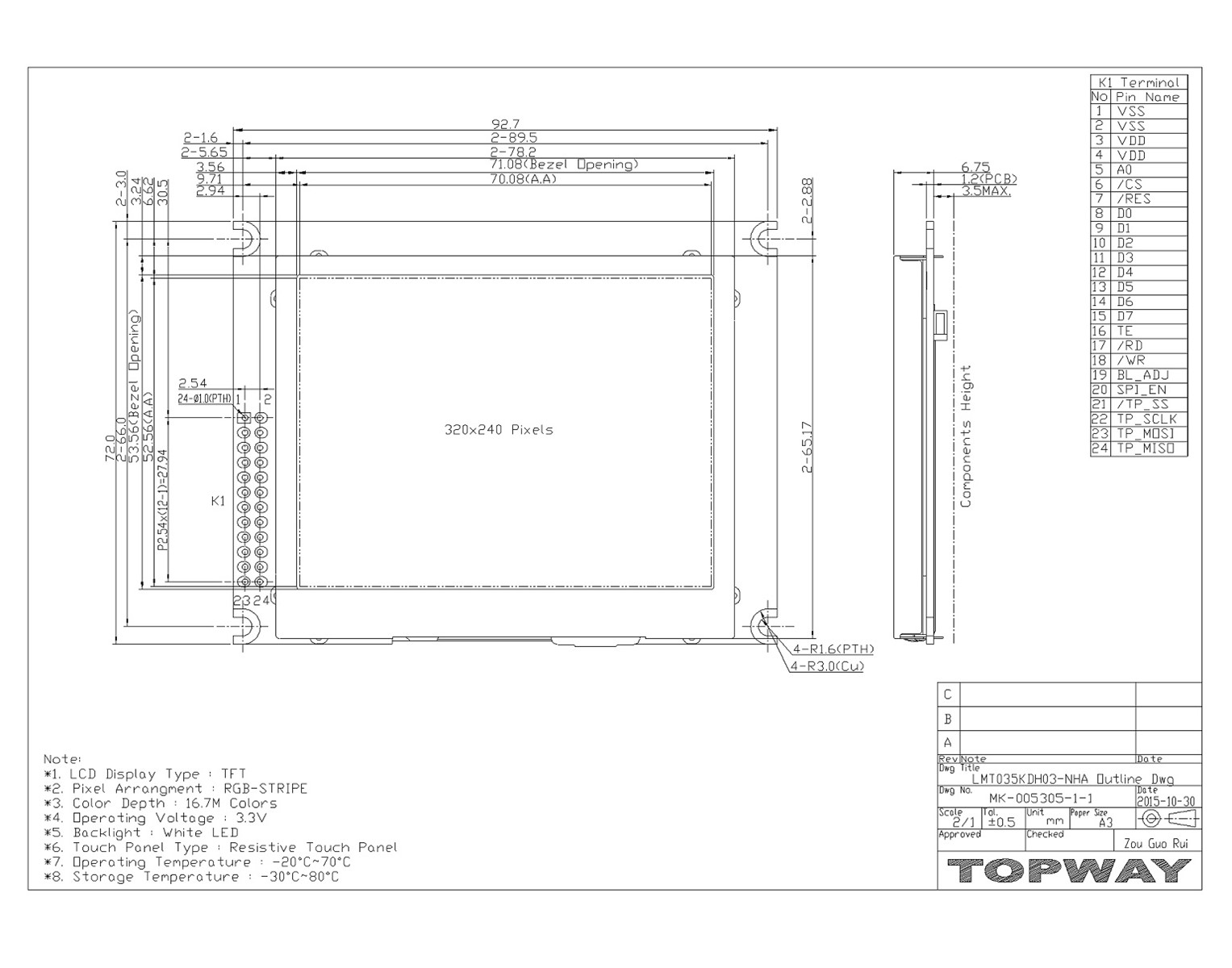

| Outline Dimension(mm) | 92.7 X 72.0 x 10.25 |
| Active Area(mm) | 70.08 X 52.56 |
| Backlight | LED |
| Power supply | 3.3V |
| Interface | 8-bit Data MCU or TTL |
| Touch panel | Optioanl |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
