| Type: | Graphic |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel or Serial |
| Resolution: | 216x64 |
| application: | LCM |
| Model Number: | LM6069D |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
Description:
216*64 dots Monochrome graphic LCD modules.
1)216*64 dots, COG type, 3.3V Power supply
2)Parrale or Serial interface optional
3)Super exquisite dots and ultra high contrast
4)STN-Blue & FSTN-Positive optional
5)Widely used on Audio player
216*64 dots Monochrome graphic LCD modules.
1)216*64 dots, COG type, 3.3V Power supply
2)Parrale or Serial interface optional
3)Super exquisite dots and ultra high contrast
4)STN-Blue & FSTN-Positive optional
5)Widely used on Audio player
| Item | Description |
| Product Name | COG display 216 x 64(LM6069D) |
| Model No. | LM6069DCW |
| DotFormat | 216 x 64 |

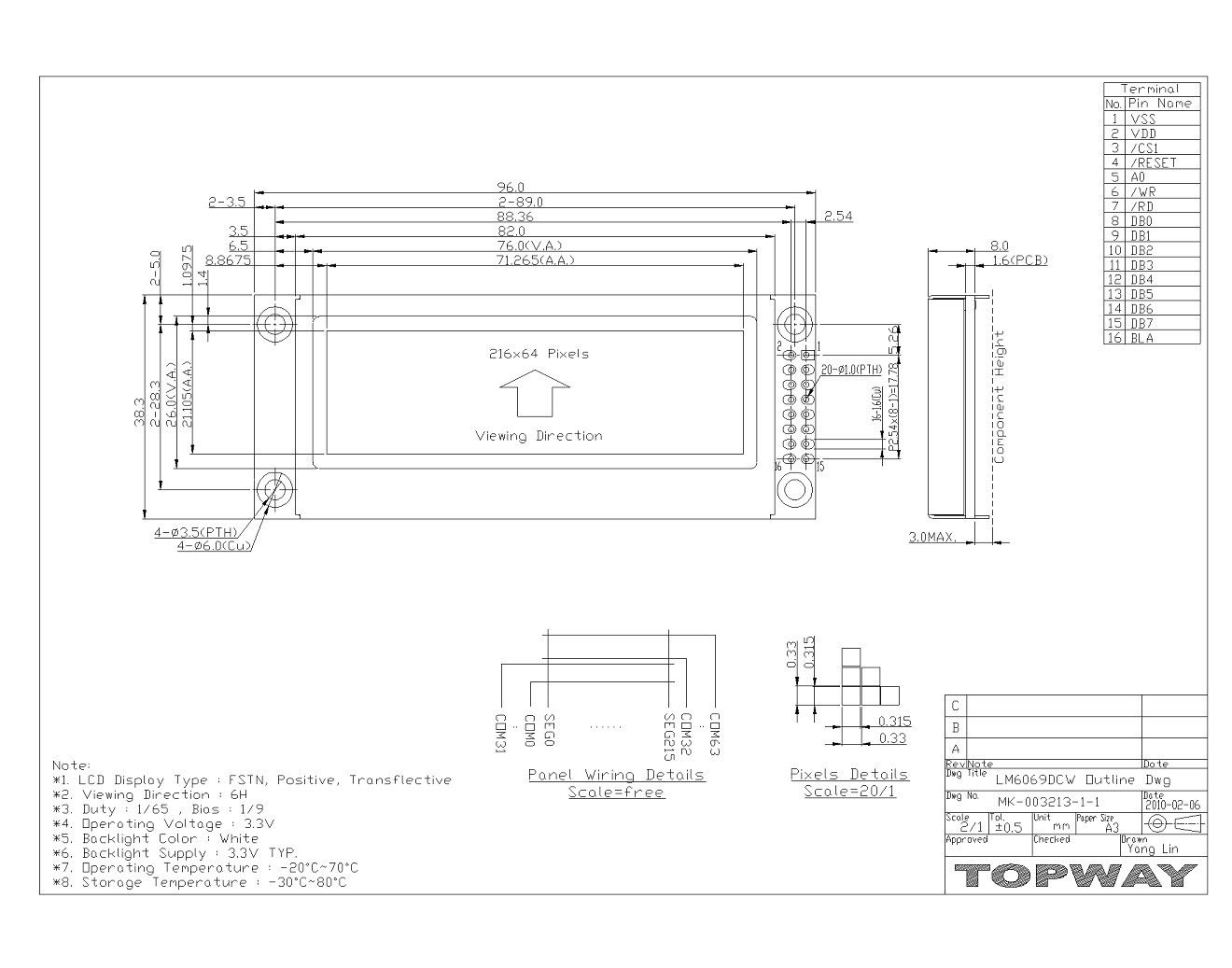

| Outline Dimension(mm) | 96.0 x 38.3 x 12.0MAX |
| Viewing Area(mm) | 76.0 x 26.0 |
| DotSize( mm) | 0.315 x 0.315 |
| Viewing Angle | 6 O' clock |
| LCD Type | STN-Blue, FSTN-Pos |
| Backlight | White LED backlight |
| Driver IC | IST3020 |
| Power supply | 3.3V |
| Interface | Parallel or Serial |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
