| Type: | COG |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | Parallel or Serial |
| Resolution: | 240x120 |
| application: | LCM |
| Model Number: | LM240120B |
| Place of Origin: | China (Mainland) |
| Power supply: | 3.3V |
Quick Details
Specifications
1. COG LCD Module
2. Dots Format: 240 X 120
3. Controller: UC1608 or EQUIV
4. Backlight: White
5. STN-blue, FSTN-positive display results as option
6. Widely use on Hand-held device.
2. Dots Format: 240 X 120
3. Controller: UC1608 or EQUIV
4. Backlight: White
5. STN-blue, FSTN-positive display results as option
6. Widely use on Hand-held device.
| Item | Description |
| Product Name | COG display 240 x 120(LM240120B) |
| Model No. | LM240120B |
| DotFormat | 240 x 120 |

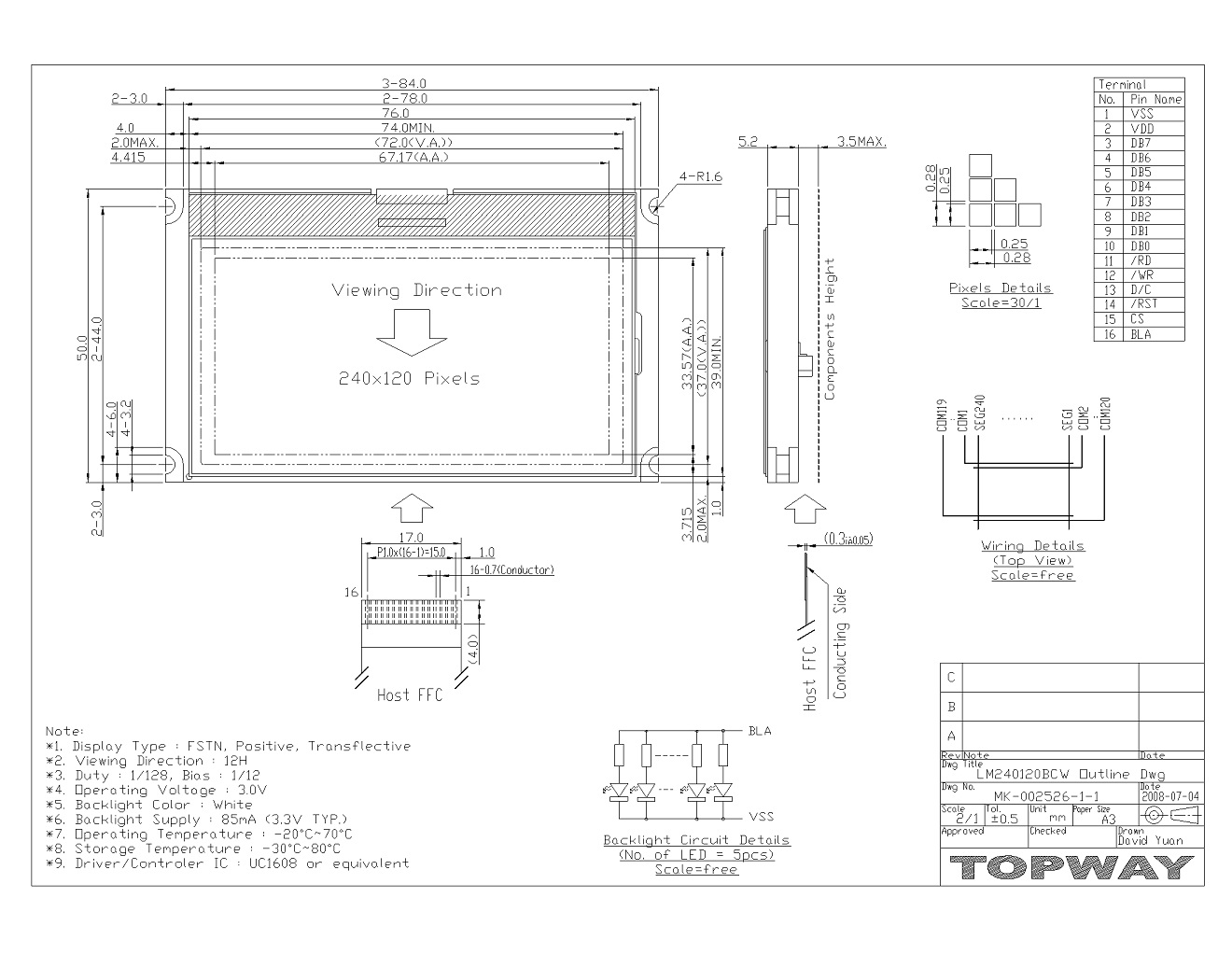

| Outline Dimension(mm) | 84.0 x 50.0 x 8.7MAX |
| Viewing Area(mm) | 72.0 x 37.0 |
| DotSize( mm) | 0.25 x 0.25 |
| Viewing Angle | 12 O' clock |
| LCD Type | STN-Blue, FSTN-Pos |
| Backlight | White LED backlight |
| Driver IC | UC1608 |
| Power supply | 3.3V |
| Interface | Parallel or Serial |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
| Touch screen | Optional |
