| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Power(W): | 35 kw |
| Brand Name: | Dongguan Songhu Plastic |
| Application: | Pipe |
| Condition: | New |
| Certification: | CE |
| Weight: | 2500 |
| Dimension(L*W*H): | 15*1.5*2.3M |
| Voltage: | Cutomized |
| Model Number: | SHSJ-45 |
| Place of Origin: | China (Mainland) |
| Automatic Grade: | Automatic |
| Screw Design: | Single-screw |
| Product Name: | 0.5mm Coating Layer Thickness Pipe PE Coating Machine |
| Suitable Raw Material: | PE PVC PP |
Quick Details
Specifications

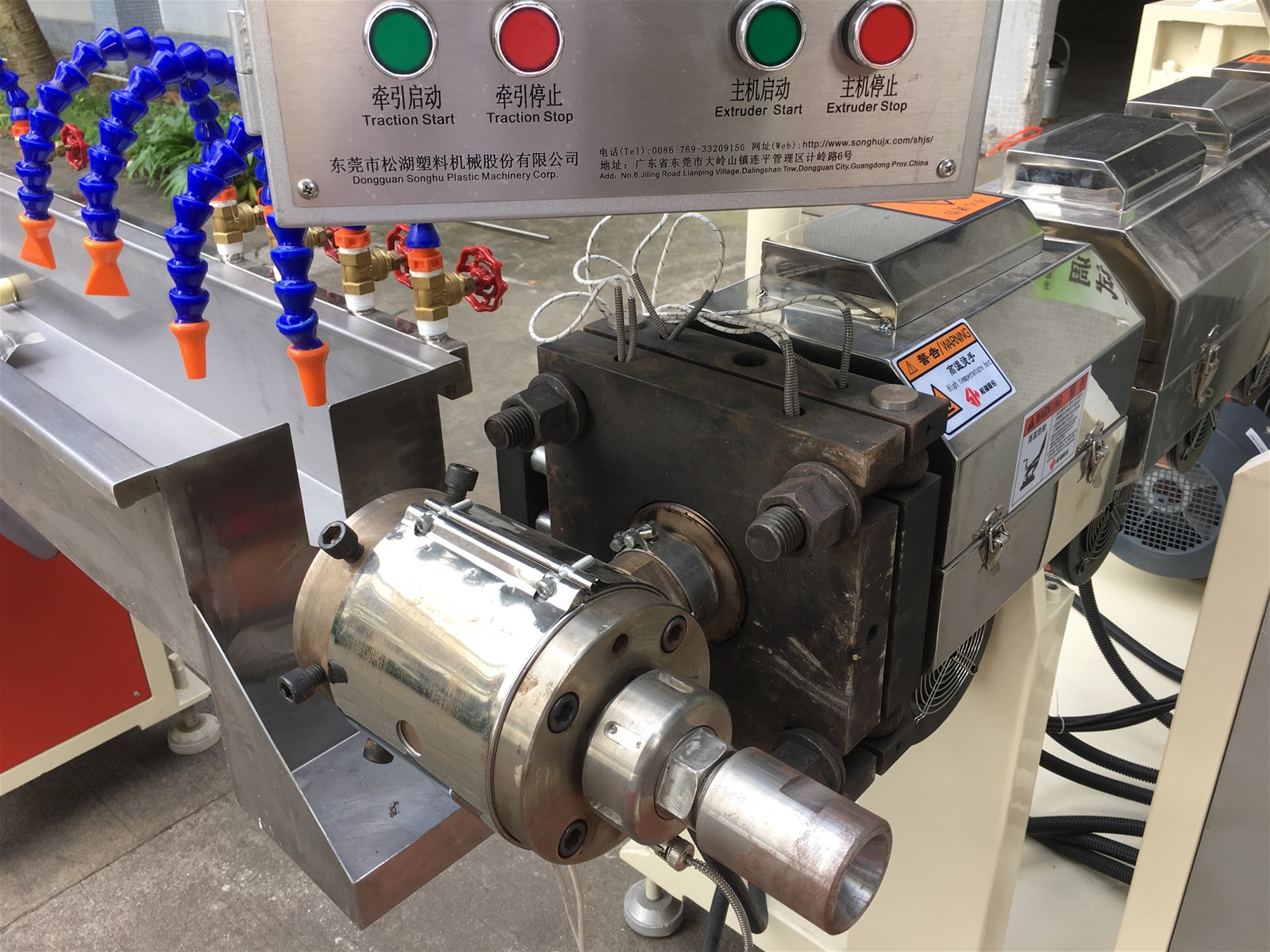

0.5mm Coating Layer Thickness Pipe PE Coating Machine
Plastic PE PVC Coated Metal Pipe Extrusion Line and Steel pipe PE coating extrusion line
Introduction of Plastic Coating Pipe Extrusion Line:
Designed and manufactured by DONGGUAN SONGHU PLASTIC MACHINE CORP.,
this Coating Pipe Extrusion Line is designed for coating one or several PVC, PE, PP or ABS layer around common iron pipe, stainless steel pipe and aluminum Pipe etc. Plastic coating
Pipe is suitable for both outdoor and indoor applications, Especially for decoration, heat solution and anti-corrosion etc.
this Plastic Coating Pipe Extrusion Line is composed of steel pipe stacking conveyor,
Haul-off (front and back for each set), high frequency heating device, right angle Coating mold, single screw extruder, cooling equipment. Each steel pipe can be Connected by special connector, realize continuous coating extruding production. the final product has features of dense coating, uniform thickness plastic layer, stable Dimension, smooth and clean surface.
Model Max. Coating pipe diameter(mm) Thickness of plastic layer (mm) Screw diameter(mm) Max. Producing speed(m/min) Installation power(kw)
Model |
Max. Coating pipe diameter(mm) |
Thickness of plastic layer (mm) |
Screw diameter(mm) |
Max. Producing speed(m/min) |
Installation power(kw) |
SJ-50 |
25 |
0.2~5.0 |
50 |
12 |
50 |
SJ-65 |
50 |
0.2~5.0 |
65 |
16 |
75 |
SJ-75 |
110 |
0.2~5.0 |
75 |
18 |
90 |
the machine consists following equpments:
1.Pay off stand: one set
2. Straightening unit: one set
3.Coating extruder machine: one set
4. Water cooling tank: one set
5. Haul-off unit: one set
6. Winding or cutting unit: one set
