| Packaging Details: |
1) plasic bag,or poly bag 2) standard export carton size 43X34X24cm 3) paper or wooden pallet 4) Also based on your requirement |
| Delivery Detail: | 5-20days;According to customer's order QTY |

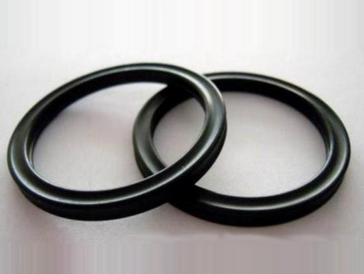

Quad ring(X-ring) also named Four-lobes seals is one of our main products,featuring its high quality and a wide rang of applications.
Four-Lobed seals are electrometric seals rings.
It offers 4 contact areas for sealing instead of the 2 of the conventional standard O-ring.
The unique cross section has good sealing characteristics built in as part of its design,and because of this double seal action,less squeeze is required to keep effective seal.This reduction in squeeze mean less friction and hence,
improves seal life.
At pressure varies,Four-Lobed seals perform less movement from side to side.
the parting lines of quad-rings are not on any of contacted areas.they are installed between the lobes away from the sealing surface.the design prevents problem of leakage.
For automobile, motorcycle, resilient as a rest, support or shock absorber for high safety. Custom made, up to your requirement.
1) Good price, good quality
2) Material available, silicone, NR, EPDM, NBR, etc ( According to your decision or the performance or function of your product)
3) OEM/ODM both welcome
4) New product according to your design
5) Your samples & drawings are highly welcome( any size and shape )
6) Packing: carton, also can based on your requirement
7) More details can be discussed in further step
1.Rubber Seal ring Information:
|
Brand |
BiLi, OEM/ODM welcome |
|
Material |
NR,SBR,CR,EPDM,NBR,MVQ,FKM viton,etc. |
|
Color |
Black, or as you request |
|
Standard |
ROHS,ISO 9001:2008,FDA,SGS |
|
Application |
usually in industry, auto or house-hold appliance, etc. |
|
Working temperature |
-50 to +260 Degrees Centigrade (up to 300C for short periods) |
|
Size |
As per your request |
|
Certification |
FDA, RoHS certificate, and ISO9001 |
|
Grade |
Industrial grade, Food grade(FDA approval), Medical grade. |
|
Hardness |
30-90 shore A |
|
Function |
Chemical resistant, Anti-aging |
Further information about Bili:
Our factory has many years specilized producing rubber products.Like rubber roller and
rubber grommet,rubber bellows and rubber handle,rubber tubing and any other sealing profiles products,etc.Most of our products are exported to USA, Australia,France and
Germany,etc.We can produce custom made,so your drawings and samples are available.
We have been producing the rubber parts and extrusion seals products for famous
company Fagor Sapin customer and Joyoung Chinese customer and so on.
Sincerely welcome your inquires and hope to work with you in the future!
