| Application: | Laser Cutting |
|---|---|
| After-sales Service Provided: | Engineers available to service machinery overseas |
| Certification: | ISO |
| Model Number: | 1325/1530 |
| Brand Name: | Leynon |
| Place of Origin: | China (Mainland) |
| Graphic Format Supported: | AI,BMP,DST,DWG,DXF,DXP,LAS,PLT |
| Control Software: | DPS control system |
| Cooling Mode: | Water Cooling |
| CNC or Not: | Yes |
| Cutting Speed: | 1-16m/min |
| Cutting Area: | 1300*2500mm/1500*3000mm |
| Cutting Thickness: | 0.2-3mm tainless steel /0.2-4mmcarbon steel |
| Applicable Material: | Acrylic,Glass,MDF,Metal,plastic,Plexiglax,Plywood,Rubber,Stone,Wood |
| Laser Type: | Fiber Laser |
| Condition: | New |
| Laser model: | 1325/1530 |
| Laser wavelength: | 1080nm |
| Processing range: | 1300*2500mm/1500*3000mm |
| Cutting thickness: | 0.2-3mm stainless steel /0.2-4mmcarbon steel |
| Laser output power: | 300w/500w/1000w |
| Machine drive mode: | imported ball screw |
| Cutting speed: | 1-16m/min |
| Cutting line width: | 0.02mm |
| Machine area: | 4.0*2.5*1.5m |
| Machine weight: | 3500kg |
Quick Details
Specifications

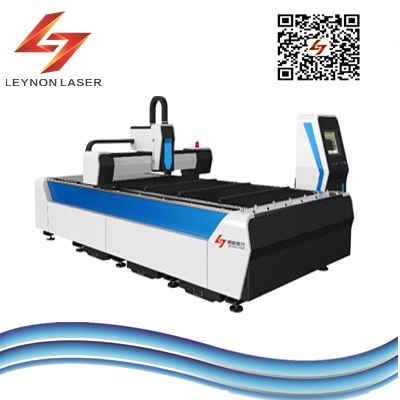

laser cutting machine manufacturers direct marketing business
specification
| Laser machine model | 1325/1530 |
| Laser wavelength | 1080nm |
| Processing range | 1300*2500mm/1500*3000mm |
| Cutting thickness | 0.2-3mm stainless steel/0.2-4mm carbon steel |
| Laser output power | 300w/500w/1000w |
| Machine drive mode | imported ball screw |
| Cutting speed | 1-16/min |
| Machine area | 4.0*2.5*1.5m |
| Cutting line width | 0.02mm |
| Machine weight |
3500kg |
Product features
? Steel-welded structure bed ,making process after stress eliminated by annealing, a better way to remove the stress caused
by welding and processing .
? Fiber laser cutting machine with high precision servo screw drive system, equipped with Taiwan imported ball screw, ensuring
the operation accuracy and stability.
? Fiber laser cutting machine, adopting RAYCUS UK import system, fine light, long service life, short maintenance cycle, and
low maintenance cost.
? Fiber laser cutting machine, adopting high sensitive laser cutting machine system and fiber control system, ensuring of a stable
and correct processing.
Applicaton industry
? Applid in large quantities of high precision sheet metal industries like aerospace technology, elevator manufacturing, ship
manufacturing, metal cutting , kitichen furniture, auto parts, cooling and ventilation ducts, chassis cabinets, kitchen cabints,
machinery manufacturing and advertising decoration, etc..
Application materials
? Mainly used in the fast cutting of stainless steel, carbon steel, manganese steel, galvanized sheet, all kinds of alloy plates, precious
metals amd other materials.
