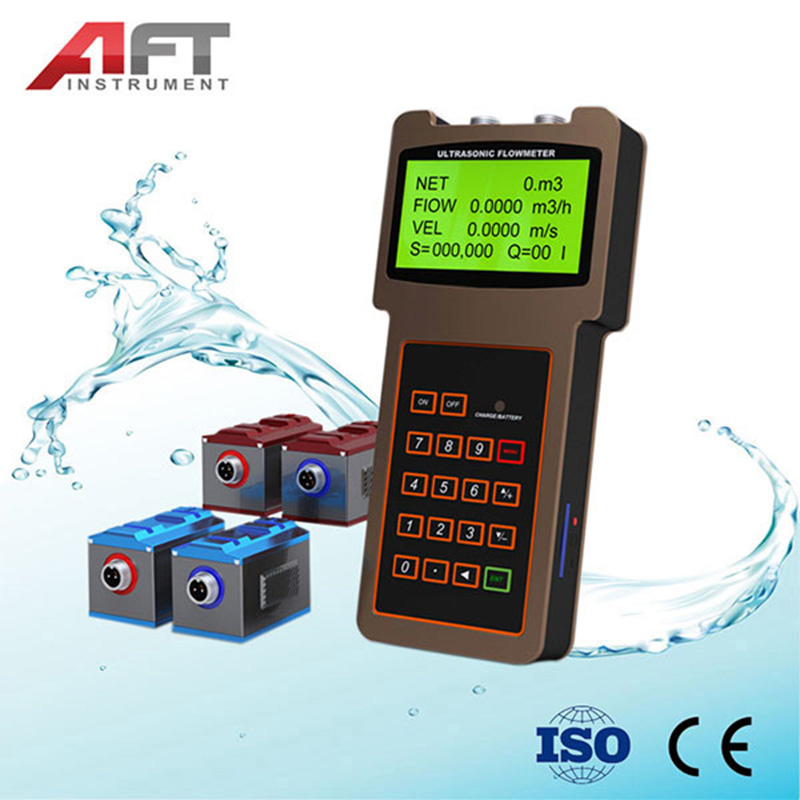

Handheld ultrasonic digital flowmeter diesel flowmeter

Introduction

the AFT handled ultrasonic flowmeter is designed to work with clamp-on transducers to enable the flow of a liquid within a closed pipe to be measured accurately without needing to insert any mechanical parts through the pipe wall or protrude into the flow system.



Using ultrasonic transit time techniques, the is controlled by a micro-processor system which contains a wide range of data that enables it to be used with pipes with an outside diameter ranging from 15mm up to 6000mm (depending on model) and constructed of almost any material. the instrument will also operate over a wide range of fluid temperatures.



Feature



High accuracy

    Accuracy better than 1%.

Wide Measurement Range

    Measurement range from DN15~DN6000mm

Rechargeable Power Supply

    Built-in high-capacity NiMH rechargeable batteries will last more than 10 hours(Fully charged).

Non invasion measurement

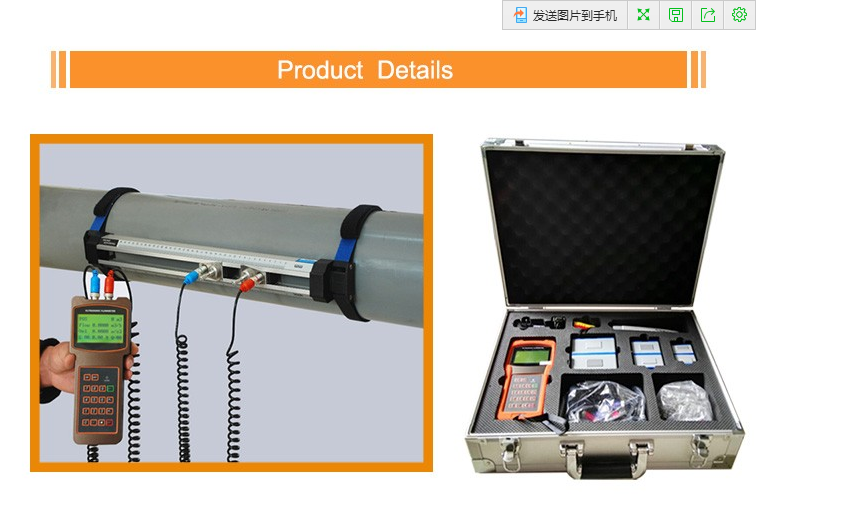

    Can achieve measurement with clamp on sensors

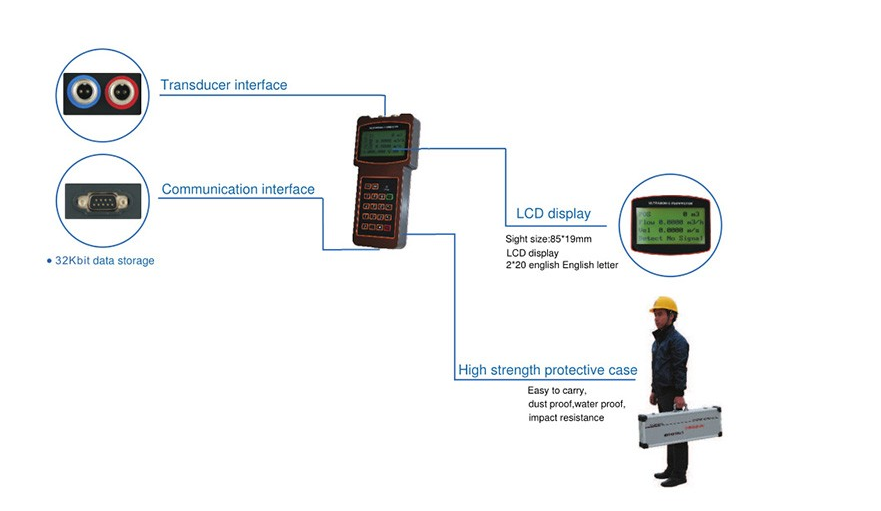

Data Storage

    32K BIT built-in data storage,can store two thousand rows of data

LCD display

    LCD display can display the instant flow,total flow,flow velocity and working condition

Basic Parameter:

Type		Performance parameter
Transmitter	Principle	Ultrasonic transit-time principle, Four-byte IEEE754 floating arithmetic
	Accuracy	Flow: Better than 1%
	Display	LCD display with Chinese, English, Italian language
	Output	One OCT pule output(pules width 6-1000ms, Default 200ms)
	Data Interface	Isolation of 232 communication interface, can upgrade flowmeter through PC
Pipeline Conditions	Pipe Material	Steel, Stainless steel, Cast iron, copper, PVC, aluminium, FRP etc.(liner allowed)
	Diameter	15~6000mm
	Installation	Upstream 10D,downstream 5D,30D away from the pump outlet(D for diameter)
Medium	Fluid	Water,sea water,acid liquid,beer,alcohol,oil and any other liquid that can spread sonic
	Temperature	Temperature: -30~160oC
	Turbidity	10000ppm and with little bubbles
	Velocity	0~10m/s
Operating Environment	Temperature	Transmitter: -20~60oC; Transducer: -30~160oC
	Humidity	Transmitter: 85%RH; transmitter protection grade: IP67
Power	Three internal 1.2V, 2000mAH rechargeable Ni-MH battery. Can work 12 hours fully charged. Can achieve continuous measurement with AC100-240V power adapter
Comsumption	1.5W
Case Material	Flame retardant ABS
Weight	Transmitter: 514g
