| Brand Name: | AFT |
|---|---|
| Accuracy: | 0.5-1.5 |
| Power Supply: | 220V/24V |
| output: | 4-20MA/PLUSE |
| Medium: | LIQUID/GAS |
| Model Number: | LGB |
| Place of Origin: | China (Mainland) |
| Caliber: | DN50-DN1000 |
| Pressure: | 40MPA |
| Material: | carbon steel, stainless steel |
| Repeatability: | 0.1% |
| Connection: | Flange |
Quick Details
Specifications
Standard Orifice -plate throttling Flow meter
Purchase our standard orifice-plate customers:
Why Choose us?
- "Time is gold " for you and for us, we have professional team work who can make nice quality in short time.
"with us your money in safe your business in safe " full refund in case of bad quality or delay delivery time, we also accept payment by paypal.
- We are the leader of flow meter manufacturer in china.
- Alibaba Assessed Gold Supplier.
- Inspected by the Inspection Institution of Bureau Veritas Certification.
- 100% QC inspection Before Shipping.
- Exports to many countries.
Introduction of standard orifice-plate
Standard orifice plate is one product of the throttle device which has simple structure,installation convenient and has the most adaptable,its design manufacture and use are suitable for international standard ISO 5167 or GB/T rules.

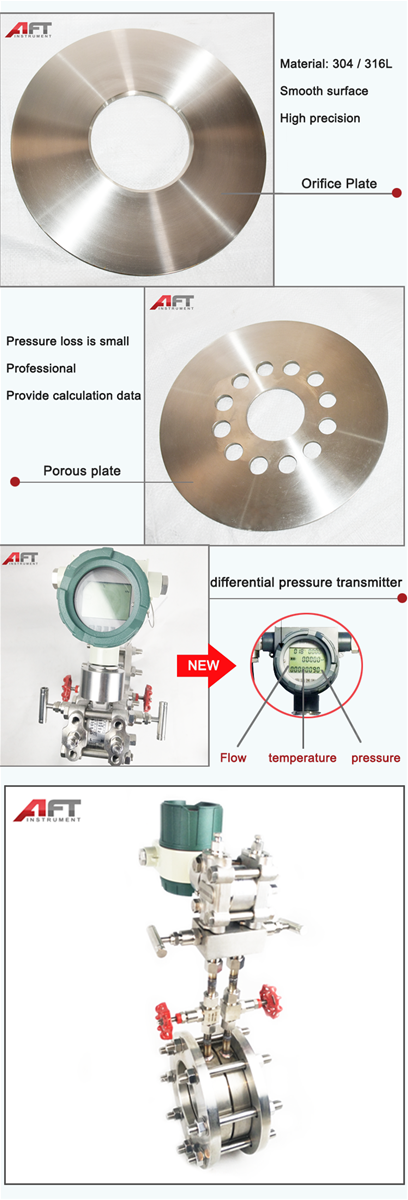

Standard orifice-plate display
Feature of standard orifice-plate
1. Simple structure,strong,convenient installation.
2. Can measured all kinds of flow of gas,steam and liquid,and wide usage.
3. Don't need real flow calibration,with moderate precision.
4. Attachment is complete,it can design and calculation for the user.
5. It be can equipped with Intelligent differential pressure transmitter, and realize temperature,pressure compensation or the scene concentric line communicating mode.
Taking pressure mode: Corner joint (Riting chamber or drill alone )taking pressure, Flange taking pressure, D-D/2 taking pressure
- Nominal pressure: 40Mpa,(when 20Mpa,it can use high pressure lens orifice plate or welding type)
- Caliber: 50~1000mm(standard orifice plate) or<50mm(ensemble plate)>1000mm(plate orifice-plate)
- Accuracy(Inderterminacy): 0.5% ~ 1.5%
- Range of application: open hole diameter(mm):d 12.5(standard orifice plate)
open hole diameter rate:0.1 0.75
Reynolds number range ReD: 0.1 0.75
107 ReD5000 and ReD107 2D:D can be use (mm)show
We have a professional sales team, we can choose the most suit yours standard orifice-plate
