| Feature: | Jib Crane |
|---|---|
| Capacity: | 20t |
| Lifting height: | 18m |
| Span: | 25m |
| power source: | as your advice |
| steel materials: | Q235 |
| Electric components: | Schneider brand |
| Motors: | Nanjing Motors |
Quick Details
Specifications

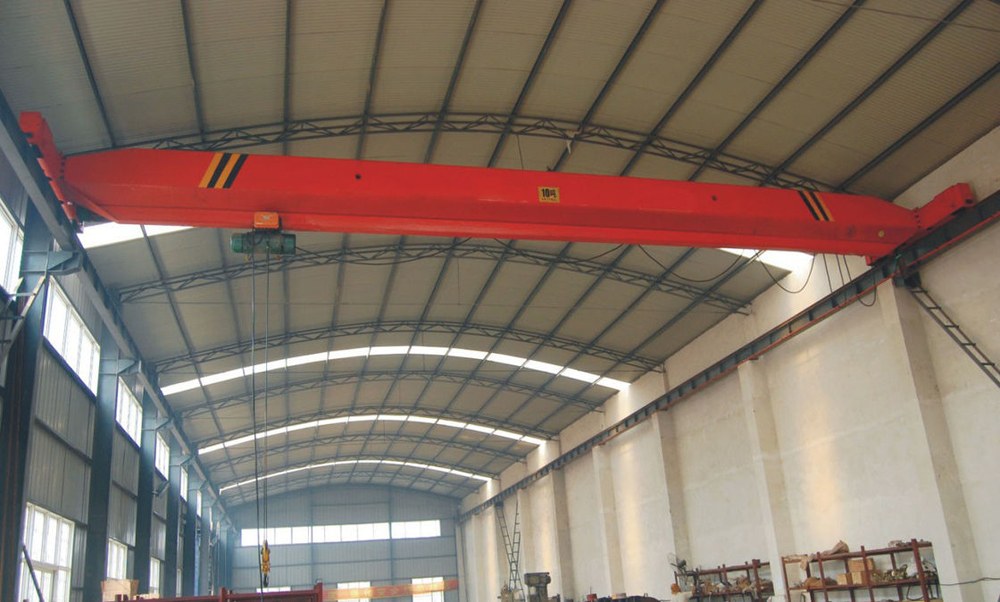

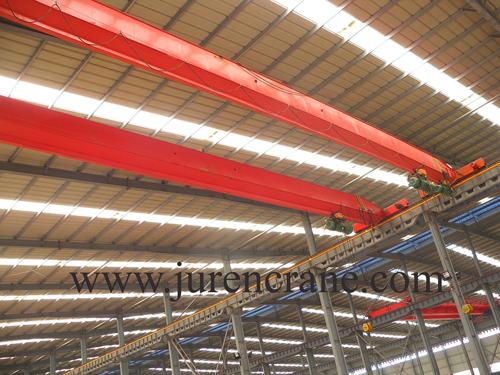

Single Girder Overhead Crane
Brief Introduction
Brief Introduction
1. This overhead crane is characterized by more reasonable structure and higher strength steel as a whole, the main beam and end carriages are made by U-section steel frame.
2. This overhead crane is used together with CD1/MD1 model or HC/HM model wire rope electric hoist as a complete set.
3. This overhead crane is medium duty class overhead crane, the capacity from 1ton to 20 tons. The span from 7.5m to31.5m, the working grade is A3. Working temperature within -25 to +40 centigrade.
4. This overhead crane is widely used in plants, warehouses, material stocks to lift goods. It is prohibited to use the equipmenmt in the combustible, explosive and corrosives environment.

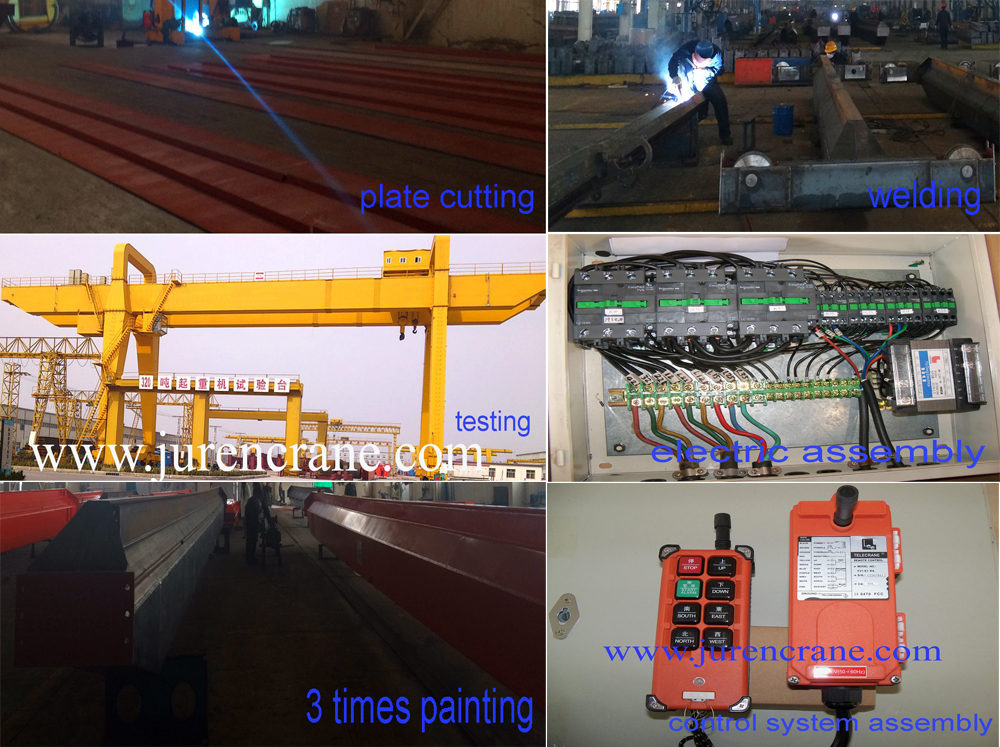

Crane making progress
The main girder:
- Rigid welded box Girder or sturdy hollow steel section
- Modula design
- Made of steel Q235 or Q345
The end carriages (travelling mechanism) :
- Rigid welded box type end carriage
- Modula design
- Cone squirrel cage motor or soft start motor as option
- Travelling speed: Single or Dual or Step less as per required
- Combine with Main Beam, Wheel, Motor, Reducer, Brake and Other Parts
- Steel plate adopts shot blasting and high quality painting
Monorail wire rope electric hoist
- Lifting speed: single or dual as per required( CD type has single speed while MD type has double speed to satisfy accurate operating.)
- High performance with most economical price
