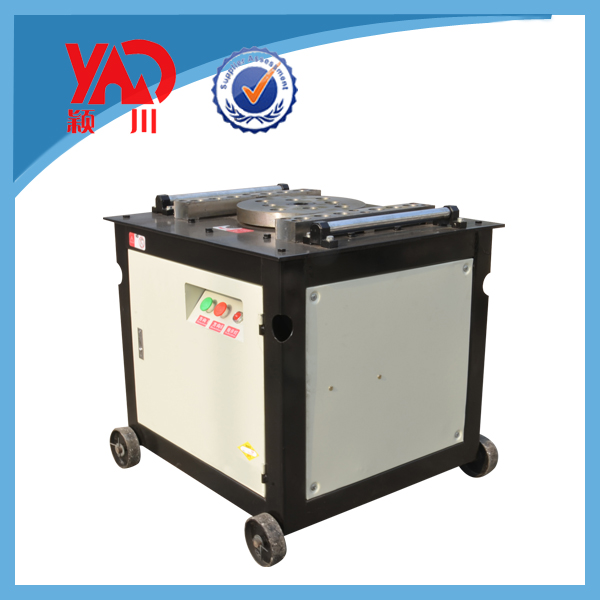

GW42 full-auto steel bar bending machine is a kind of steel bending equipments for construction. It features simplified bending process, high efficiency, convenient angle adjustment and neat bending. the machine could bend round steel of 3mm-42mm to various geometrical shapes as your requirement.

GW42 full-auto steel bar bending machine application:

GW40 series rebar bar bending machine is widely used in construction system,rail way system,high speed way system and other area.The 3KW copper motor and high-tech design make it has 2 years warranty.

GW42 full-auto steel bar bending machine Specification:

1.the working disk is inserted into the working table which made the external appearance pleasant at sight and the operation easy to handle.

 2.Adopted the fully ENCLOSED TYPE CASE so that distortions, which happen under the condition of heavy load, can be avoided.

 3.GEAR, GEAR SHAFT, WORKING DISK, STOP GAUGE  and PILE HEAD are made of high quality ALLOY STEEL which has undertaken the HEAT TREATMENT (quenching and tempering), this is in order to make sure that the important parts can ensure REALIABLE OPERATION also under heavy load conditions and guarantee LONG-LASTING WORKING LIFE.

Model	GW42
	? 6- ?42mm
Working disc diameter	?320mm
Work speed	3,7,14r/min
the whole machine weight	318kg
the motor power	3kw(4a)
Overall dimensions	850*700*900mm

Steel bar bending machine adopts thickening frame, assembled with high quality accessories, thickening panel(10mm), steel bearing cover, steel disc and steel square bar, thickening scroll volute, thickening worm, soild steel external wheel, International 4KW copper wire motor, big support, thickening feed roller, steel precision milling accessories. the working disc should be changed 180 degree after working period, in this way, the inner parts are also changed 180 degree, and the spare parts can be worn evenly to prolong using life of the machine.
