| Brand Name: | AFT |
|---|---|
| Accuracy: | 0.5% |
| Power Supply: | 220V/24V |
| output: | 4-20MA |
| Medium: | LIQUID |
| Model Number: | AFTLD |
| Place of Origin: | China (Mainland) |
| Product name: | Sinatary Type Megnetic Flow Meter |
| Temperature: | 0-180 degree |
| Material: | carbon steel |
| Accuracy: | 0.5% |
| Electrode material: | 316L/Hastelloy C22 / Platinum |
| Power supply: | 220VAC/ 24VDC |
| Output: | 4-20mA /RS485 |
| Connection: | DN6-DN3000 |
| Medium: | Liquid |
| Liner Material: | PTFE/PFA/F46/Neoprene/Polyurethan |
Quick Details
Specifications

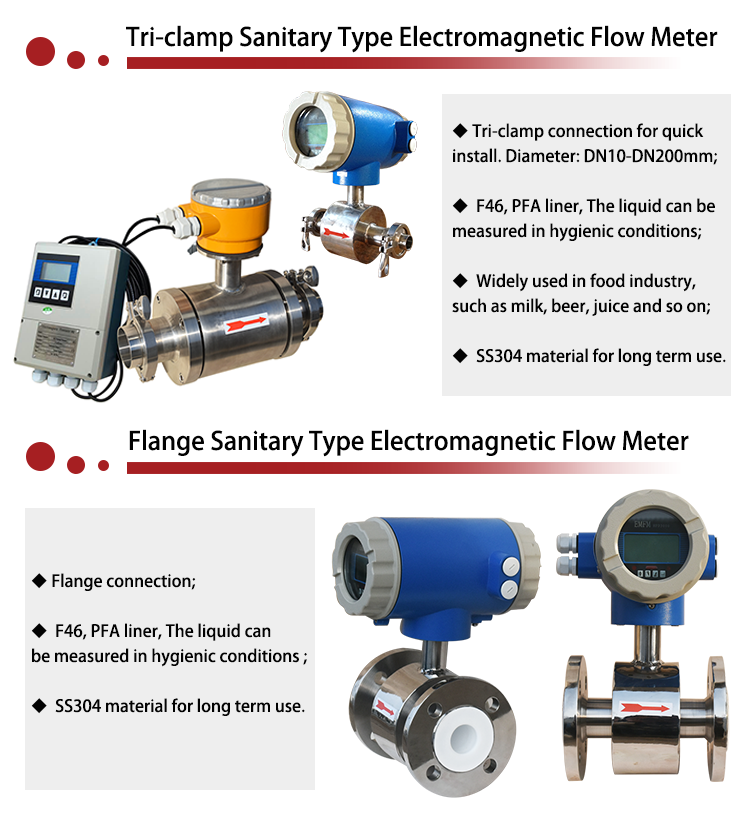

Sanitary Type Electromagnetic Flow meter
Product Description

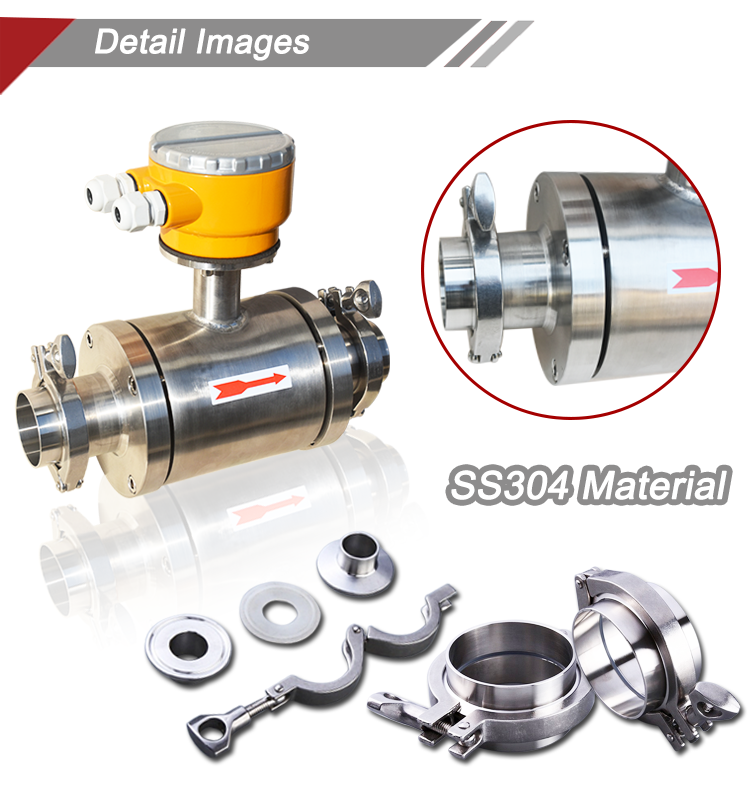

Detail images of Sanitary type flow meter
Technical Parameters
Caliber(mm) |
DN10~DN200 | |
Nominal pressure |
0.6~1.6MPa | |
Accuracy |
0.5% of the value displayed,0.3% or 0.2% are selected | |
Medium temperature |
Integrate type |
-10~+80 |
Remote type |
-25~+160 | |
Ambient temperature |
-20~+60 | |
Conductivity |
20s/cm | |
Liner material |
PFA,F46 | |
Electrode material |
Stainless steel SUS316,Hastelloy B,Hastelloy C,Titanium,Platinum-iridium | |
Electrode type |
Conventional electrode,electrode can be lean down | |
Structure type |
Integrate type, remote type,submersible type,ex-proof type | |
Protection class |
IP65,IP68(Optional) | |
Ex-proof Mark |
ExmdBT4 | |
Main electrode material of Sanitary type flow meter
Electrode material |
Application |
316L |
Applicable in water,sewage and corrosive medium.Widely used in industies of petrol,chemisty,carbamide,etc |
Tungsten Carbide |
Applicable in medium of no corrosive and low abration |
Hastelloy B |
Having strong resistance to hydrochloric acid of any consistence which is below boiling point.Also resistable against vitrol,phosphate,hydrofluoricacid,organic acid,alkali and non oxidable salt. |
Hastelloy C |
Be resistant to oxidable acid such as nitric acid,mixted acid as well as oxidable salt such as Fe+++,,Cu++ and sea water |
Ti |
Applicable in seawater and kinds of chloride salt,oxidable acid(including fuming nitricacid),organic acid,alkali etc.Not resistant to a pure reducing acid(such as sulphuric acid hydrochloric acid) corrosion.but if acid contains antioxidant(such as Fe+++,Cu++) is greatly reduce corrosion. |
Ta |
Having strong resistance to corrosive mediums that is similar with glass.Almost applicable in all chemical mediums except for hydrofluoric acid,oleum and alkali. |
Platinum-iridium |
Almost be applicable in all chemical mediums except for aqua fotis,ammonium salt. |
