| Brand Name: | AFT |
|---|---|
| Accuracy: | 0.2%/0.5% |
| Power Supply: | 220VAC/ 24VDC |
| output: | 4-20mA /RS485/HART/PROFIBUS DP |
| Medium: | LIQUID |
| Model Number: | AFTLD |
| Place of Origin: | China (Mainland) |
| Caliber: | DN6-DN3000mm |
| Pressure: | <=4.0MPA |
| Temperature: | -25~ +150 degree |
| Material: | carbon steel |
| Liner: | PTFE , Rubber,F46,PFA |
| Protect grade: | IP65 / IP 68(optional) |
| Connection: | Flange,Clamping, thread, clamps |
Quick Details
Specifications
RS485 Electromagnetic Water Flow Meter
Product Description

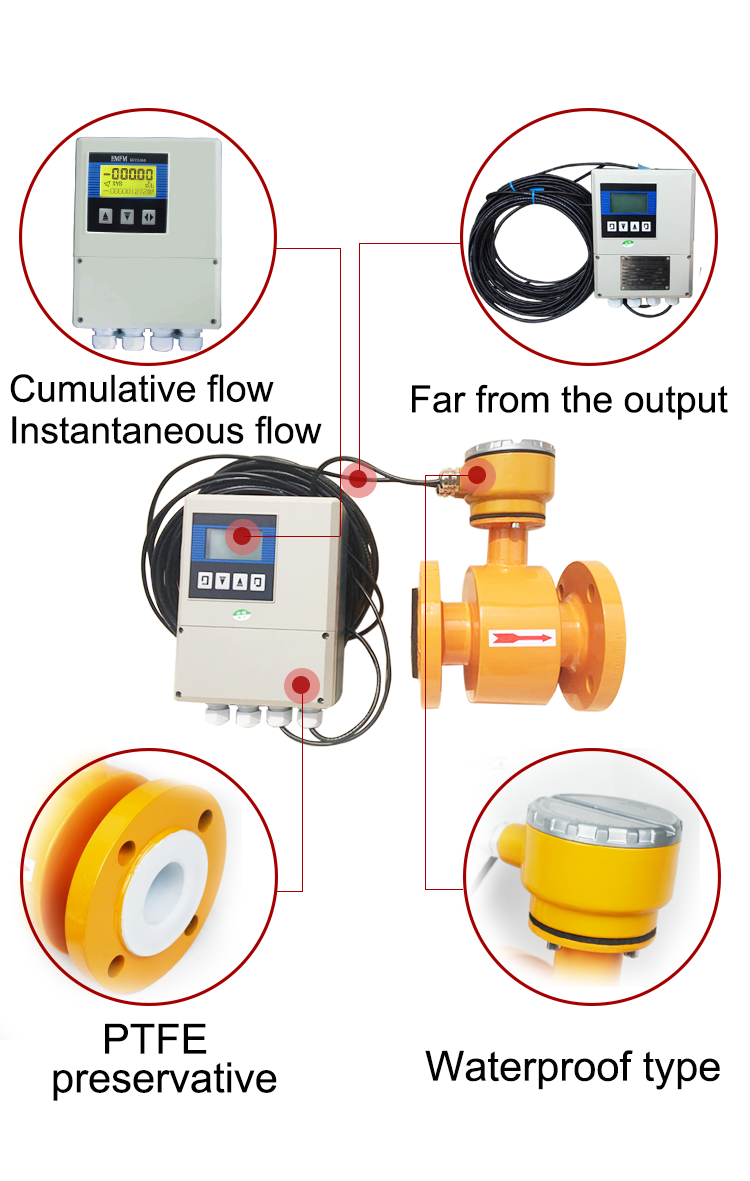

Details show with 2018 newRS485 Electromagnetic Water Flow Meter:
Technical Parameters
| Product name | 2018 new RS485 milk beer drink water electromagnetic flow meter | ||
Caliber |
DN6-DN3000mm | ||
Nominal Pressure |
0.6-4.0Mpa (Special pressure can be made to ) | ||
Accuracy |
0.5 of the value displayed,0.3% or 0.2% are selectable | ||
Liner material |
Teflon,PFA,F46,Neoprene,Polyurethane | ||
Electrode type |
General type,scraper type and replaceable type | ||
Medium temperature |
Integrate type |
-20~+60 | |
Remote type |
Neoprene & Polyurethane Liner |
-20~+60 | |
PTFE liner /PFA Liner /F46 Liner |
-40~+180 | ||
Ambient temperature |
-25~+60 | ||
Ambient humidity |
5-100%RH(relative humidity) | ||
Medium electrical conductivity |
20s/cm | ||
Measuring range |
1500:1,flow rate <15m/s | ||
Structure type |
Integrate type, remote type,submersible type,ex-proof type | ||
Protection class |
IP65,IP68(Optional) | ||
Ex-proof Mark |
Exd BT4 | ||
Product standard |
JB/T9248-1999 Electromagnetic Flow meter | ||
Company Information
Why choose us?
We have related certifications of RS485 Electromagnetic Water Flow Meter as follows:
Kaifeng AFT Instrument Co., Ltd. Mainly produces electromagnetic flow meter.
We can produce all kinds of electromagnetic flow meter. There are pipe flow meter,
A plug-in electromagnetic flow meter, sanitary electromagnetic flow and so on.
We have a professional sales team, supply most suit yours competitive advantageRS485 Electromagnetic Water Flow Meter
Our RS485 Electromagnetic Water Flow Meter is used in many industries:
We have a lot of foreign customers and cooperation, welcome to our company to visit:
