Product Main

Quick Details

Item Type: Street Lights
Light Source: LED
Model Number: PL-LS120WA
Brand Name: PL
Place of Origin: China (Mainland)
Warranty(Year): 5
Certification: CE,EMC,GS,LVD,RoHS,SAA
IP Rating: IP66
Lamp Body Material: Aluminum Alloy
Working Lifetime(Hour): 50000
Working Temperature(℃):
Color Temperature(CCT): Cool White
CRI (Ra>): 85
Lamp Luminous Efficiency(lm/w): 115
Lamp Luminous Flux(lm): 16200
Lamp Power(W): 135
Input Voltage(V): 100-277VAC
LED Light Source: Cree Chip or Bridgelux chip
LED Driver: MeanWell
Driver Efficiency: > 90%
Operating Humidity:: 10% to 90%
Application: Square,Park,countryyard,high way,path,subway,warehouse,etc
Heat Radiator: Anodized Aluminum
Fixture Weigh: 8.1KG
Fixture Dimension: 655(L)*300(W)*105(H)mm
Lens: PC (UV resistance)
IK: 10

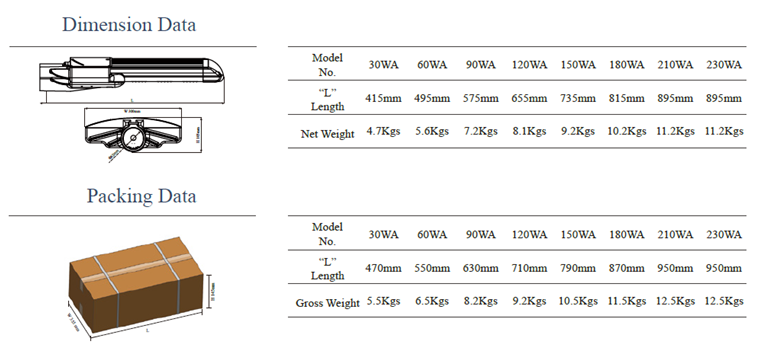

Specifications

              Detailed Images

        135W Bridgelux LED Street Light With Mean Well Driver IP66 Aluminium 120lmw
      LED Street Light:

       High power led street light,it's a typical green lighting.
      ·Energy Saving: saving energy more than 75% than the tradtional lamp.
      ·Low Operating Temperature:Never fever or burn out the cover.
      ·Environment Friendly :Without harmful radiation and lead-free.
      Low Tension:Much more safe to fix up.

      135W Bridgelux LED Street Light With Mean Well Driver IP66 Aluminium 120lmw

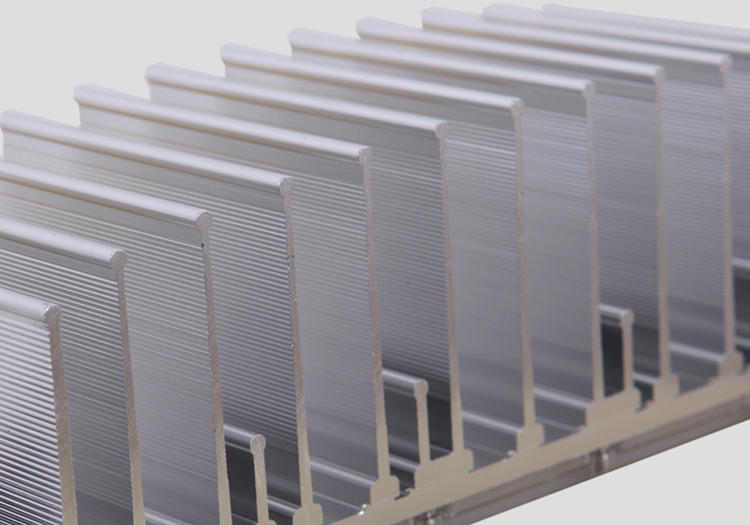

    Heat Sink

     Reasonable heat sink design, not only keep ventilation but also avoid laceration.
      135W Bridgelux LED Street Light With Mean Well Driver IP66 Aluminium 120lmw

    Screw

     stainless steel hex socket cap screws.

135W Bridgelux LED Street Light With Mean Well Driver IP66 Aluminium 120lmw

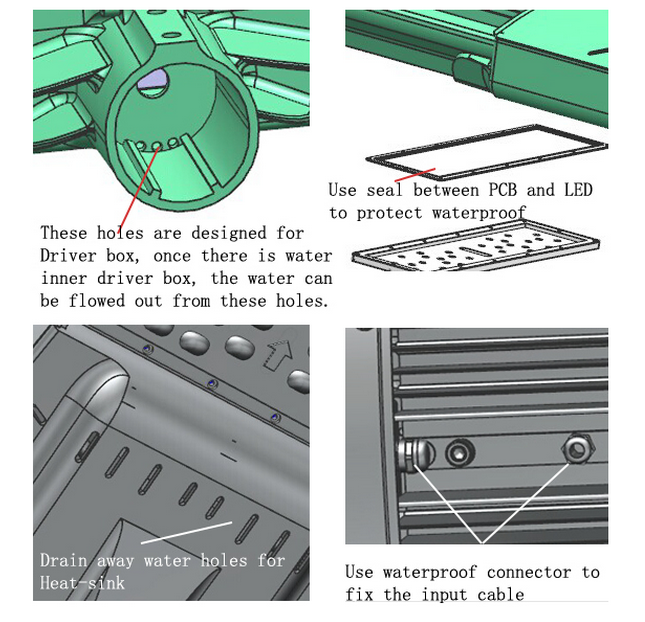

  Reasonabel design for Waterproof

         Packing & Delivery

135W Bridgelux LED Street Light With Mean Well Driver IP66 Aluminium 120lmw
