Description:

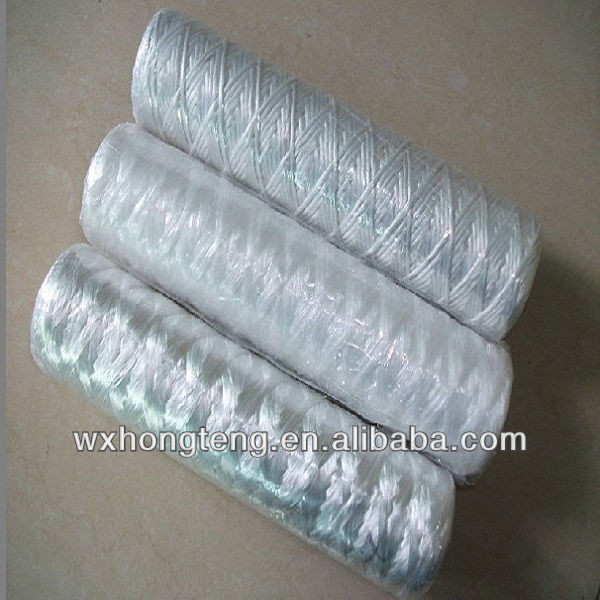

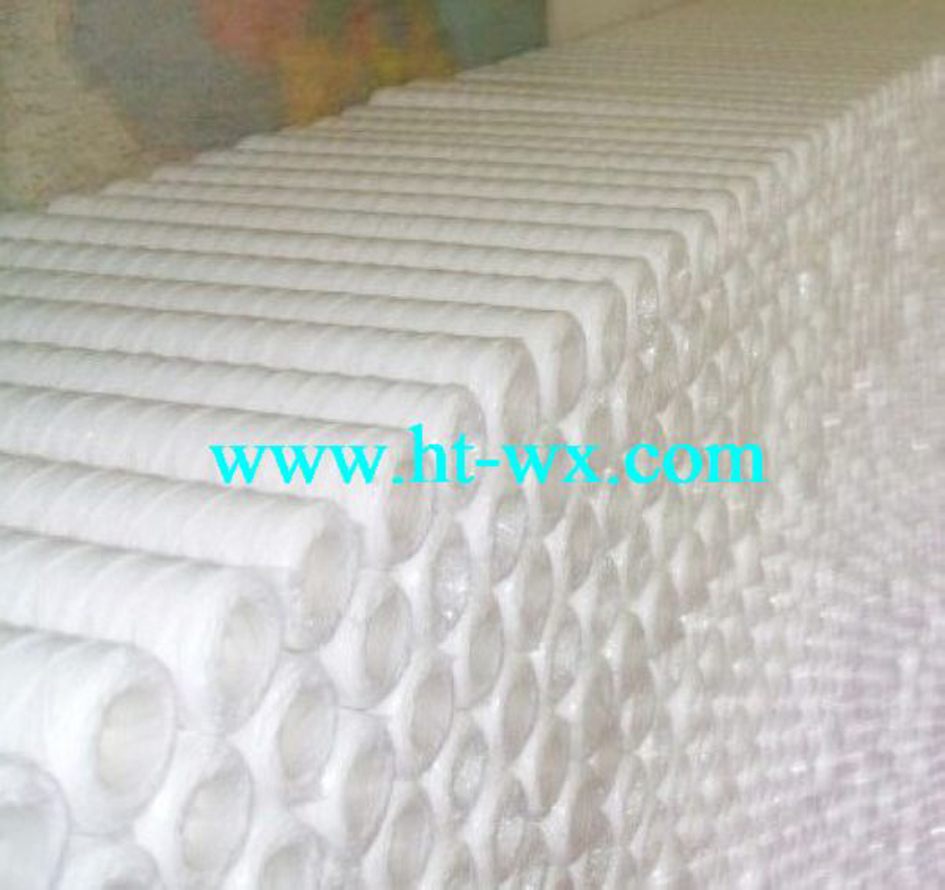

String wound filter cartridge is a kind of deep filter cartridge, which is made of the textile fabric string(polypropylene, absorbent cotton and so on) preciously winding on to the multihole axles according to the specific technology. With the honey-comb structure of loose outside and tight inside, it mainly filter the low viscosity and impurity matters, such as the suspension, particles, rust and other impurities.

Application:

1. Bulk and batch chemical prefilration.

2. Photographic solutions.

3. Organic solvents.

4. Ultrasonic cleaning solutions.

5. Paints, resins, and inks, syrups and beverages prefiltration.

6. Electroplating solvents and solutions.

7. Emulsions, gelatins and glues, machine oils and cutting oils industrial water treatment.

8. Cooking oils and vegetables oils prefiltration for final filters.

Specifications:

Length	5"/ 10"/ 20"/ 30"/ 40".....100"
Precision	0.5μm/ 1μm/ 5μm/ 10μm/ 20μm....
Inner diameter	28mm,  30mm
Outside diameter	29mm~200mm
Max Temperature	Polypropylene materials--Maximum temperature 80℃ Absorbent conton fiber--Maximum temperature  120℃
Maximum pressure	≤0.4Mpa
Other type and size can be customized



Advantages:

1. High filtration precision

2. Large flow rate, small pressure difference

3. Large dirty holding capacity, high filtertion effiency

4. Long service life
