| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Brand Name: | WXHT |
| Condition: | New |
| Certification: | CE&ISO9001 |
| Medium Material: | Stainless steel |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
the whole set include 11 parts as below:
| Item | Quantity |
| Screw-air compressor | 1 |
| Air tank | 1 |
| Air heating machine | 1 |
| Automatic feeding machine | 1 |
| Extruder | 2&3 |
| Mould | 2&3 |
| Receiving machine | 1 |
| Automatic cutting machine | 1 |
| Big controller | 1 |
| Small controller | 1 |
| Molds cleaning oven | 1 |
Parameters of PP melt blown filter cartridge machine
the rated power: 54.7KW (whole production line)
the actual power: 27kw-32kw
Production capacity:3200-3800pcs/day
Filter precision:1micron,3mciron,5micron,10micron...
the raw material:100%polypropylene
Speed of machine:0-1400r/min(adjustable)
Inner diameter:Default 28mm (other size could satify according to customers requirment)
Outside diameter:38mm-120mm (if the inner diameter is 28mm)
Length:5'', 10'', 20'', 30'', 40''.............100''
Filter Precision:1-100
Operation conditions:
1)Max operating temperature: 70C
2) Materials: 100% polypropylene
3)Interface of filter cartridge: flat,dotted,grooved,carved,etc
4) Max differential pressure: Positive 0.4Mpa
Filter precision ( m) |
1 |
3 |
5 |
10 |
20 |
30 |
50 |
Initial precision ( m) |
10-15 |
15-25 |
25-35 |
30-40 |
35-50 |
40-60 |
60-90 |
Max particle ( m) |
15 |
25 |
35 |
40 |
50 |
60 |
90 |
Flow (L/min) |
10 |
14 |
17 |
20 |
24 |
28 |
32 |
Parts Detailed Pictures for your referrence:
1.Adopts best quality electric appliance:ABB inverter,Omron ammeter,Schneider MCCB.

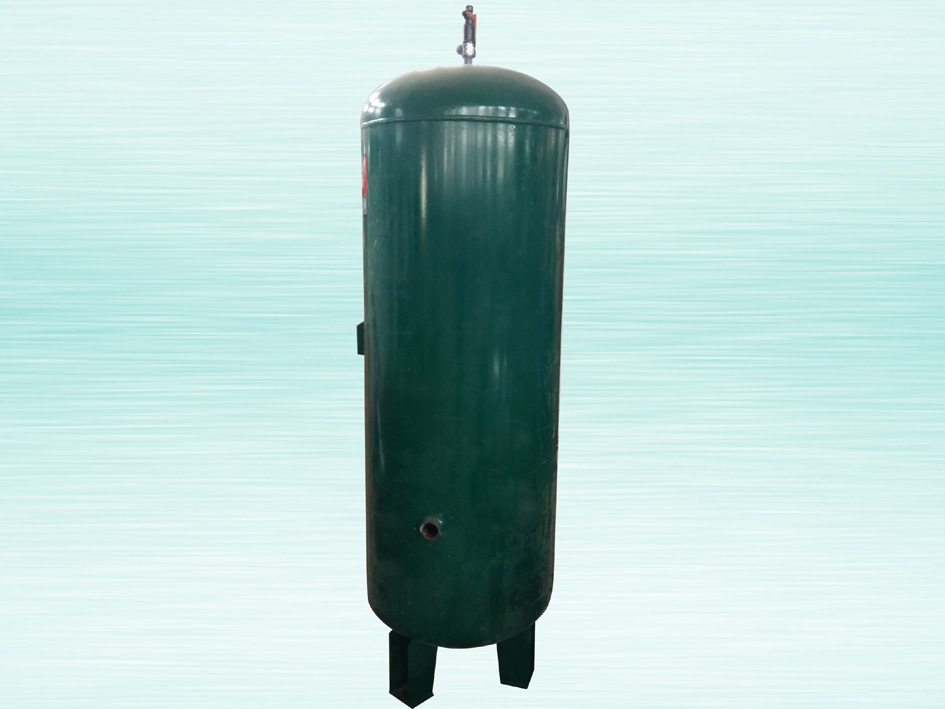

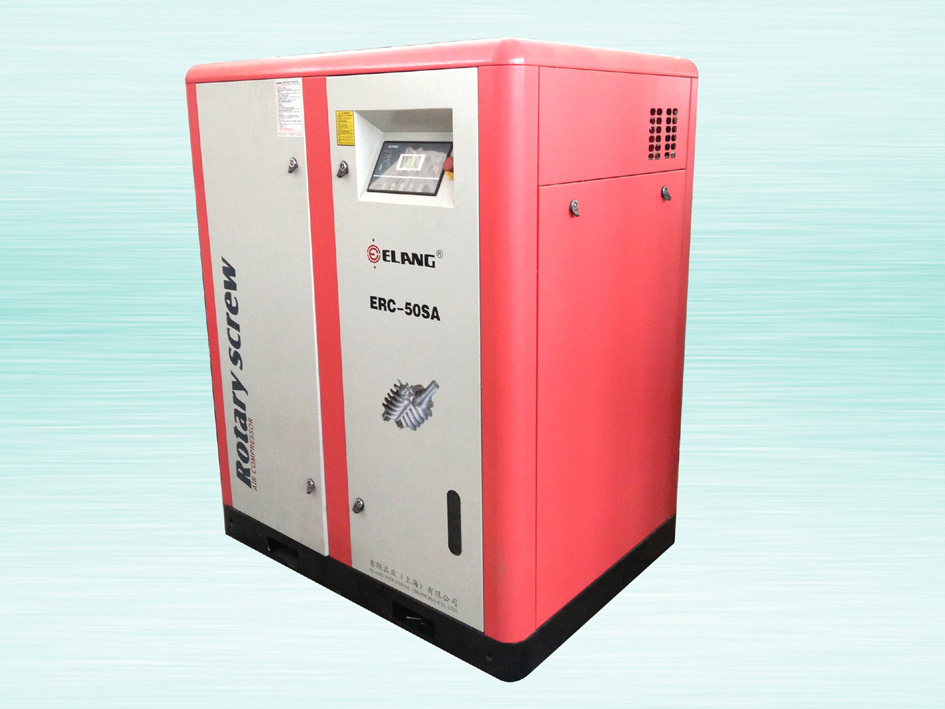

2.Adopt high quality and high price air compressor and air tank to supply air
3.Adopt stainless steel material for the whole set machine
4.Supply additional machines shirnk film packing machine,grooving machine and carving machine
