The following example is for you reference.


Features:

33KV Medium voltage XLPE insulated power cable. It applies to the transmission and distribution lines with rated voltage from 3.6/6KV to 26/35KV, to be laid directly in ground, outdoors, indoors and in cable ducts.



Technical details:

Rated Voltage : 3.6/6KV, 6/6KV, 6/10KV, 8.7/10KV, 8.7/15KV, 12/20KV, 18/20KV, 18/30KV, 21/35KV, 26/35KV

Range of Nominal cross section:  Single core:25 mm2 ~ 630 mm2   ; 3 cores: 25 mm2 ~ 400 mm2

Standard :  IEC60502, BS6622, VDE0276, GB/T12706

Conductor:  Class 2 annealed copper strands

Core shield: semi-conducting compound + copper tape metallic screen

Insulation: XLPE

Armore: 1 core: ATA, AWA, 3 cores: STA, SWA

Sheath:  PVC

Max. Operating Temperature :    90℃, can be 110℃ as per requirement

Remark :  The cable can be of flame retardance, fire resistance and environment friendly or other property

COMPANY OVERVIEW:

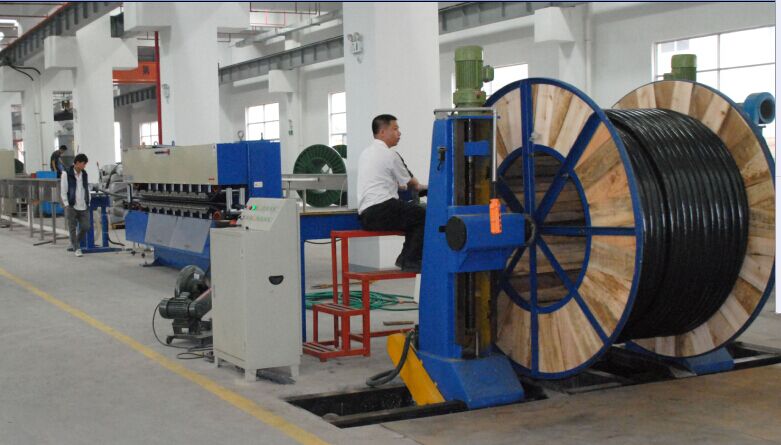

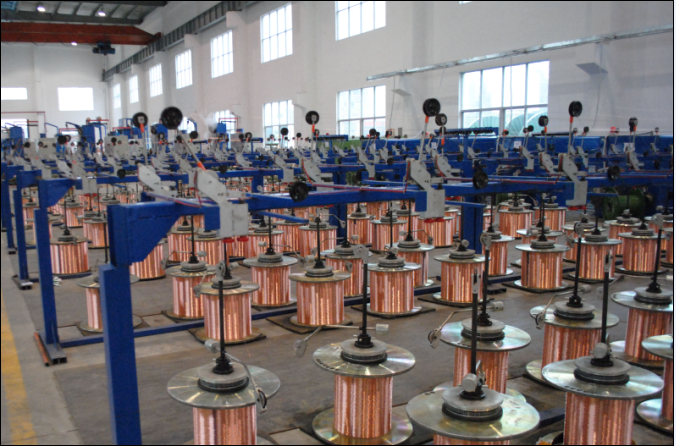

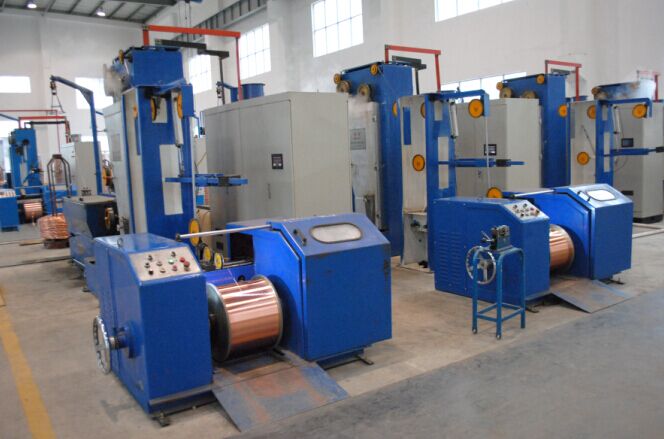

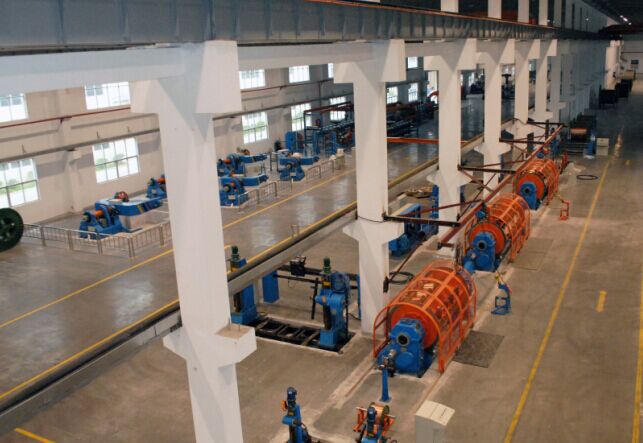

PRODUCTION WORKSHOP:

Shenzhen Bendakang Cables Holding Co., Ltd. is the leading manufacturer of  Electric Cables in South China. We have got theISO9001, ISO14001 and OHSMS18001 certificates,supplying and exporting all kinds of Electric Cables for over 15 years. Our company are well organized, producing and inspecting our products seriously according to national standard GB and international standards, such as IEC, BS, VDE, AS/NZS, UL and other standards.
