| Insulation Material: | PVC |
|---|---|
| Conductor Type: | solid or stranded |
| Conductor Material: | Copper |
| Application: | general purpose |
| Type: | Insulated |
| Model Number: | H05V-U, H07V-U |
| Brand Name: | Bendakang |
| Place of Origin: | China (Mainland) |
| Product name: | PVC insulated in home and construction copper wire |
| color: | as per request |
| conductor: | 100% new pure annealed fine copper |
| insulation: | PVC |
| Nominal Voltage: | 450/750 V |
| Certification: | ISO9001/ISO14001/OHSMS18001,CE |
| Standard: | IEC 60227 |
Quick Details
Specifications
Features:
PVC insulated in home and construction copper wire is used
for general purpose, as building wire for power, lighting and control
wire to electrical appliances, suitable for use in conduit and for
fixed, protected installation.
General Information:
Rated Voltage : 300/500V, 450/750V
Cores : 1~5 cores
Range of Nominal cross section: Single core 0.75 mm2 ~ 630 mm2; Multicore core 0.75 mm2 ~ 120 mm2
Standard : IEC 60227, BS 6004, VDE0281
Conductor: Class 1/2 Plain annealed copper wires, solid or stranded
Insulation: PVC
Sheath: PVC
Max. Operating Temperature : 70℃, can be 90℃,105℃ as per requirement
Remark : The cable can be of flame retardance, fire resistance and other property
COMPANY OVERVIEW:

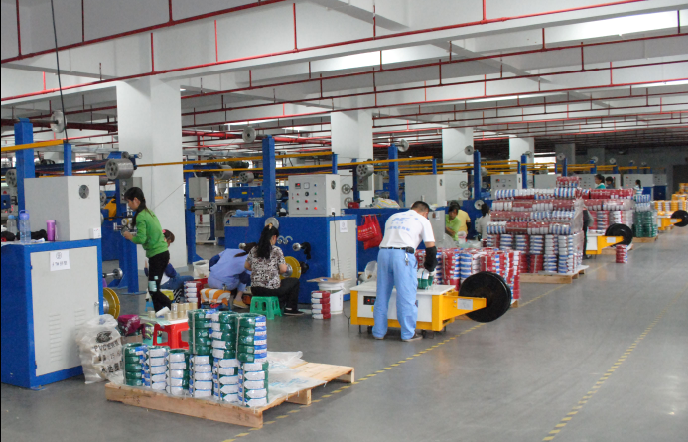

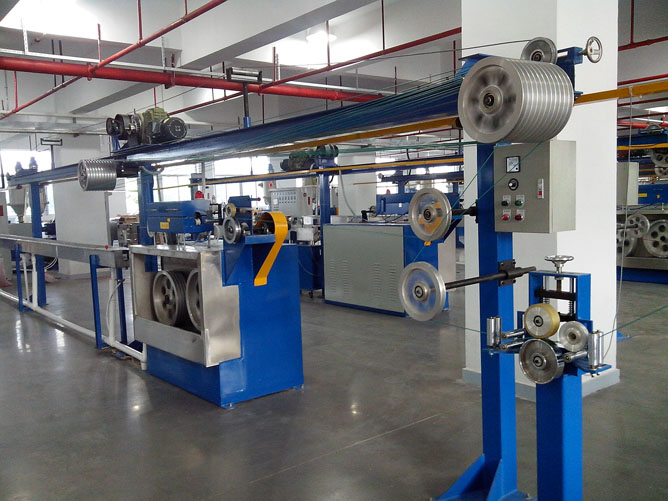

Praduction Line:
Shenzhen Bendakang Cables Holding Co., Ltd. is the leading manufacturer of Electric and Communication Cables in South China. We have got the ISO9001, ISO14001 and OHSMS18001 certificates,supplying and exporting all kinds of Electric Cables for over 15 years. Our company are well organized, producing and inspecting our products seriously according to national standard GB and international standards, such as IEC, BS, CE, AS/NZS and other standards.
