| Type: | TFT |
|---|---|
| Brand Name: | TOPWAY |
| Interface Type: | LVDS |
| Resolution: | 800x480 |
| application: | TFT |
| Model Number: | LMT070DICFWD |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications

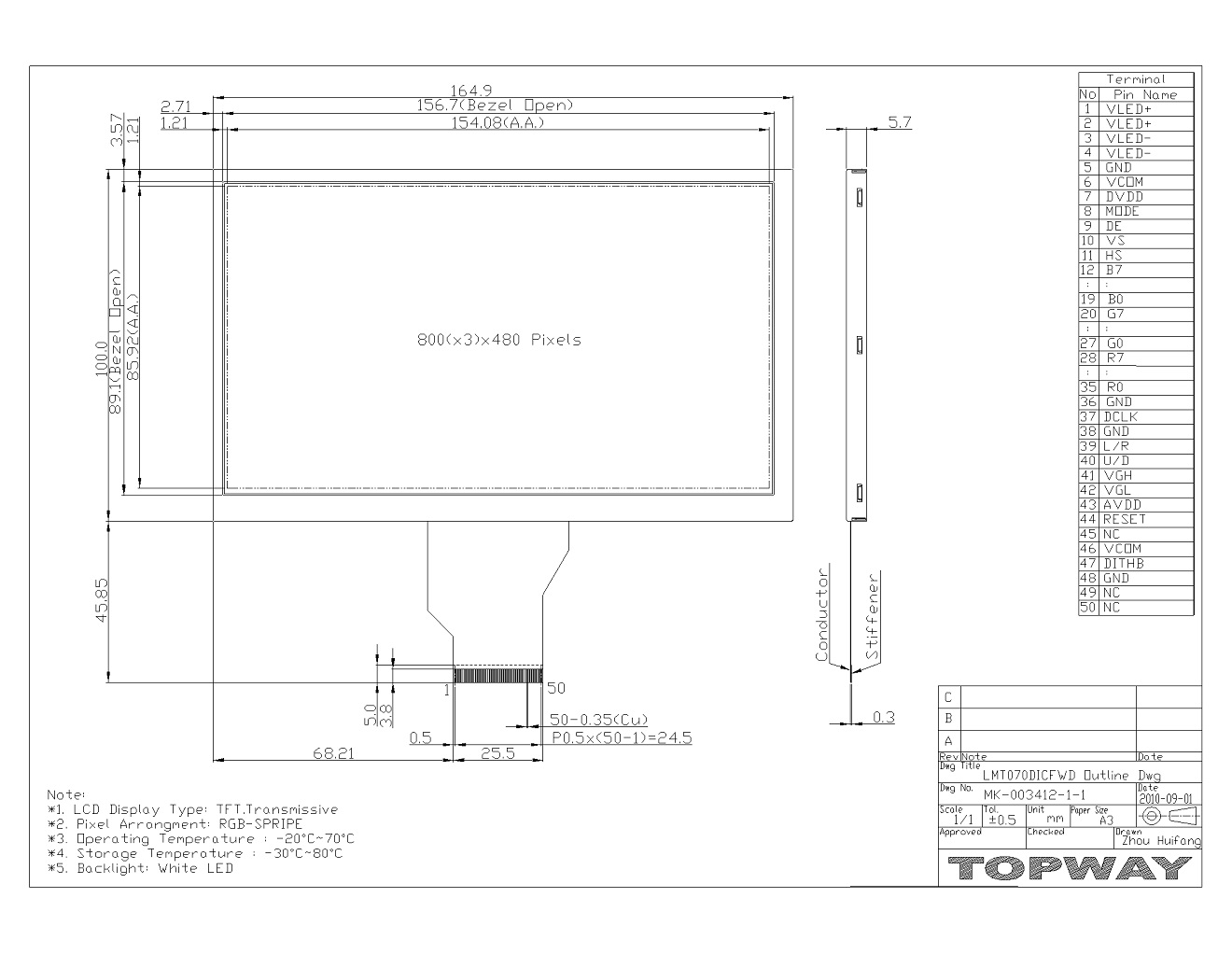

7'' inches TFT LCM with touch screen 800*480
-800xRGBx480 dots,
-with touch panel and control board,
-Provide fixing hole, metal frame for industrial application
-TTL interface, MCU interface, VGA interface and LVDS interface optional
-800xRGBx480 dots,
-with touch panel and control board,
-Provide fixing hole, metal frame for industrial application
-TTL interface, MCU interface, VGA interface and LVDS interface optional
| Item | Description |
| Product Name | Industrial Panel 7 Inch (LMT070) |
| Model No. | LMT070DICFWD series |
| Number of dots | 800*3(RGB)*480 |
| Outline Dimension(mm) | 190.0 x 112.0 |
| Active Area(mm) | 154.08 x 85.92 |
| Viewing Angle: T/B/L/R | 50/70/70/70 |
| Aspect Ratio | 16:9 |
| Brightness(CD/m2) | 250 |
| Contrast Ratio | 500 |
| DotPitch(MM) | 0.0642x0.179 |
| Backlight | LED |
| Power supply | 5V |
| Color Depth | 65K |
| Interface | TTL |
| 8-bit data MCU | |
| 16-bit data MCU | |
| LVDS | |
| VGA/HDMI | |
| RS232 | |
| Touch panel | 4-wire resistive |
| Controller | Optional |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
