| Type: | TFT |
|---|---|
| Model Number: | LMT043DNFFWD |
| Brand Name: | TOPWAY |
| Place of Origin: | China (Mainland) |
Quick Details
Specifications
TFT LCD Module size from 3.2 inch to 15 inch, with different interface like TTL, MCU, LVDS, RS232, VGA etc, Specially designed for industrial application.
Reliable performance with wide temperature/voltage range, achieving it's various application in industrial & consumer field.
Reliable performance with wide temperature/voltage range, achieving it's various application in industrial & consumer field.
| Item | Description |
| Product Name | Industrial 4.3" inches (TFT LCD module with touch panel) |
| Model No. | LMT043DNFFWD |
| Screen Size | 4.3 inch |
| Number of dots | 480*3(RGB)*272 |

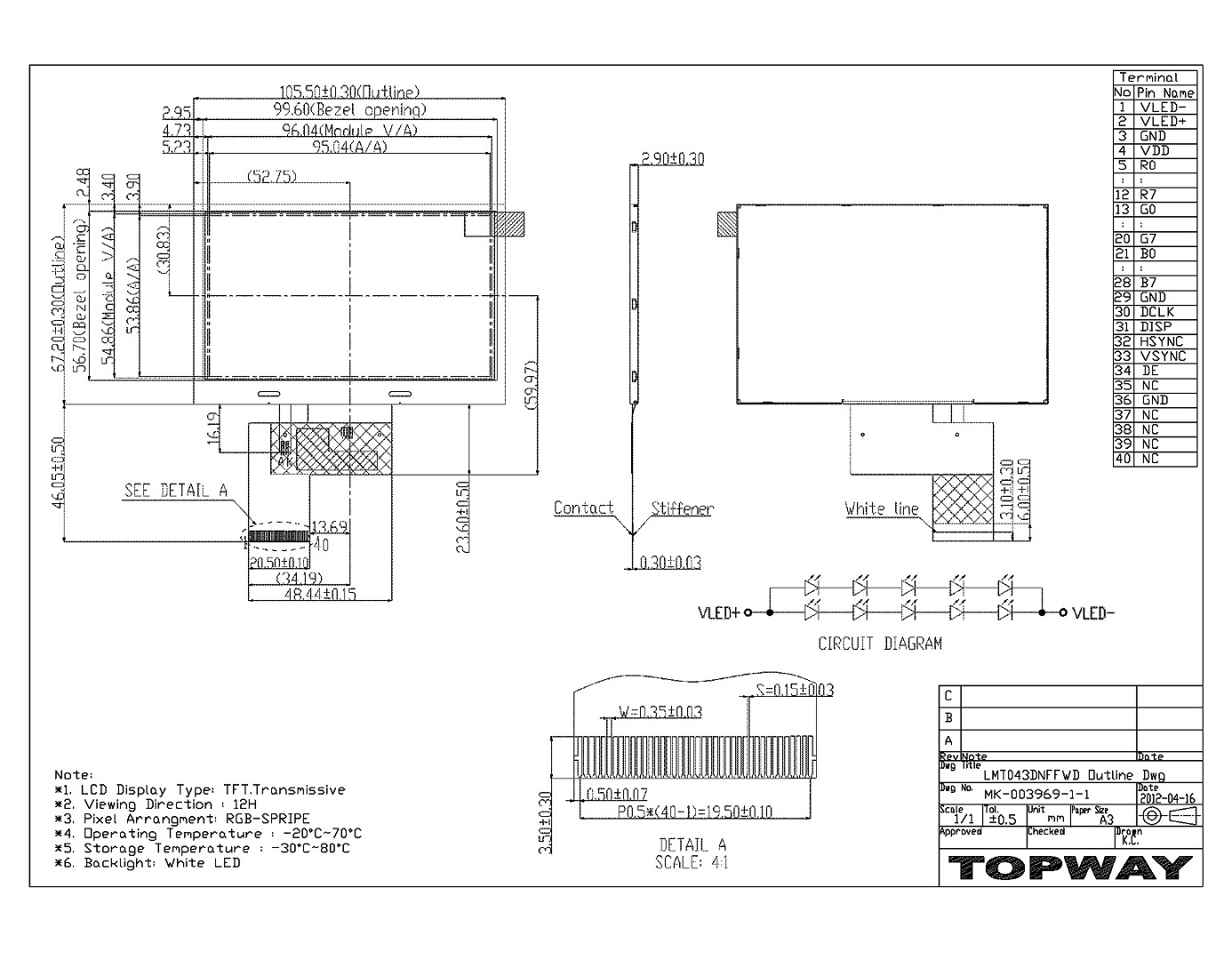

| Outline Dimension(mm) | 105.5.0x 67.2 x 2.9 |
| Active Area(mm) | 95.04 x53.86 |
| Viewing Angle: T/B/L/R | 50/70/70/70 |
| Aspect Ratio | 16:9 |
| Luminance(cd/m2) | 300 |
| Contrast Ratio | 500 |
| Response time(ms) | 20 |
| Dot Pitch(MM) | 0.198 x 0.198 |
| Backlight | LED |
| Power supply | 5V |
| Color Depth | 16M |
| Interface | TTL |
| 8-bit data MCU or SPI | |
| Touch panel | 4-wire resistive |
| Controller | Yes |
| Operating Temp | -20o C~70o C |
| Storage Temp | -30o C~80o C |
