| Brand Name: | OEM/Beyondopto |
|---|---|
| Wavelength: | 1310/1550 |
| Data Rate: | 12G |
| warranty: | 3years |
| Connector: | LC/SC/ST |
| Model Number: | BY-EFP-K3 |
| Place of Origin: | China (Mainland) |
| Input power: | DC 12~19V |
| Optic adaptor Appearance size: | 160mm*100mm*44mm |
| Base station Appearance size: | 1U standard rack mount |
| Wavelength: | 1310nm / 1550nm / CWDM |
| Optical connector: | Dul LC /FC/ST/SC/MX/ Lemo / Neutrik (optional) |
| SDI Signal format: | SMPTE 424M, SMPTE 292M, SMPTE 259M |
| Interface: | 4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
| Ethernet Work mode: | Full duplex/half duplex |
Quick Details
Specifications
Specifications:
General index
|
Work Temp |
-25C to 55C |
|
Storage Temp |
-40C to 85C |
|
humidity |
0 ~ 95% (non-condensing) |
|

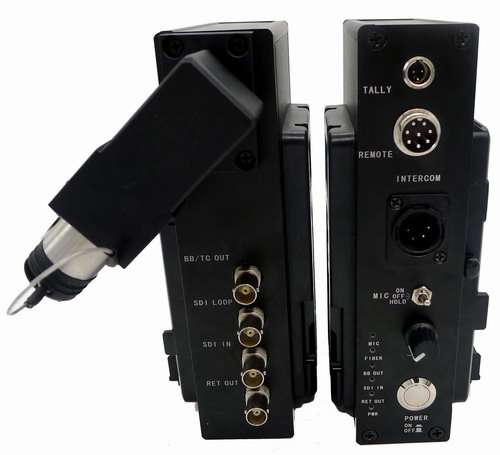

Camera Optic Adaptor |
|
|
Input power |
DC 12~19V |
|
Power consumption |
10W |
|
Net weight |
1kg |
|
Appearance size |
160mm*100mm*44mm(without V-mount / A-mount) |
|
Optic Base Station |
|
|
Input power |
AC90~240V |
|
Power consumption |
10W |
|
Net weight |
3kg |
|
Appearance size |
19" 1U standard rack mount |
Optical:
|
Wavelength |
1310nm / 1550nm / CWDM |
|
Output Power |
-6~-1dBm |
|
Rx sensitivity |
<-18dBm |
|
Transmission Distance |
SM fiber 10+km , MM fiber 300m |
|
Optical connector |
Dul LC /FC/ST/SC/MX/ Lemo / Neutrik (optional) |
SDI input/output:
|
Signal format |
SMPTE 424M, SMPTE 292M, SMPTE 259M |
|
Data rate |
270Mbit/s - 1.48Gbit/s - 3Gbit/s |
|
Cable Equalization |
Automatic cable EQ (Belden 1694A cable) 250m @ 270Mbit/s, 140m @ 1.5Gbit/s, 80m @ 3Gbit/s |
|
SDI interface |
BNC 75 Ohm |
Intercom:
|
Camera Optic Adaptor |
|
|
Interface |
4pin XLR(Male) /5pin XLR(Female)/ 3.5mm headset jack |
|
Microphone |
Mic inputs with mute and pre-amps |
|
Headphone |
with volume up or down |
|
Optic Base Station |
|
|
Interface |
Input:3pin XLR Female , Output: 3pin XLR Male or 5pin XLR or 3.5mm headset jack |
|
Audio |
Balance or unbalance line level |
Tally:
|
Camera Optic Adaptor |
|
|
Interface |
4pin air head or 3pin mini XLR |
|
Output |
Dry Contact Closure or wet +12V |
|
On: short or +12V Off: open or 0V |
|
|
Optic Base Station |
|
|
Interface |
DB9(Male) |
|
Input |
Dry Contact Closure or wet |
|
On: short to GND or TTL low Off: open or TTL high |
|
Remote:
|
Camera Optic Adaptor |
|
|
Interface |
8pin air head or 8pin sony's remote interface |
|
Data |
RS422 /RS232/RS485 |
|
Optic Base Station |
|
|
Interface |
DB9(Male) or 8pin sony's remote interface |
|
Data |
RS422 /RS232/RS485 |
Ethernet:
|
Work mode |
Full duplex/half duplex |
|
Data Rate |
10/100Mbps(AUTO) |
|
connection terminal |
RJ45 |
