| After-sales Service Provided: | Engineers available to service machinery overseas |
|---|---|
| Warranty: | 1year |
| Certification: | ISO9001 |
| Weight: | 25-60kg |
| Dimension(L*W*H): | 530x530x900mm |
| Power(W): | 3.5kw, 15kw |
| Voltage: | 220V,380V |
| Model Number: | SPB-H |
| Brand Name: | Superb |
| Place of Origin: | China (Mainland) |
| Usage: | Melting Furnace |
| Type: | Induction Furnace |
| Condition: | New |
| Capacity: | 1-6 kg gold,silver,copper |
| Cooling: | Water chiller or tap water |
| MAX Input Current: | 15A |
| Melting time: | 2-5 min |
Quick Details
Specifications
Description
Introduction
1.Induction Melting Furnace for 1-6 kg precious metal
2.Top quality Jewelry Machine
1.Induction Melting Furnace for 1-6 kg precious metal
2.Top quality Jewelry Machine

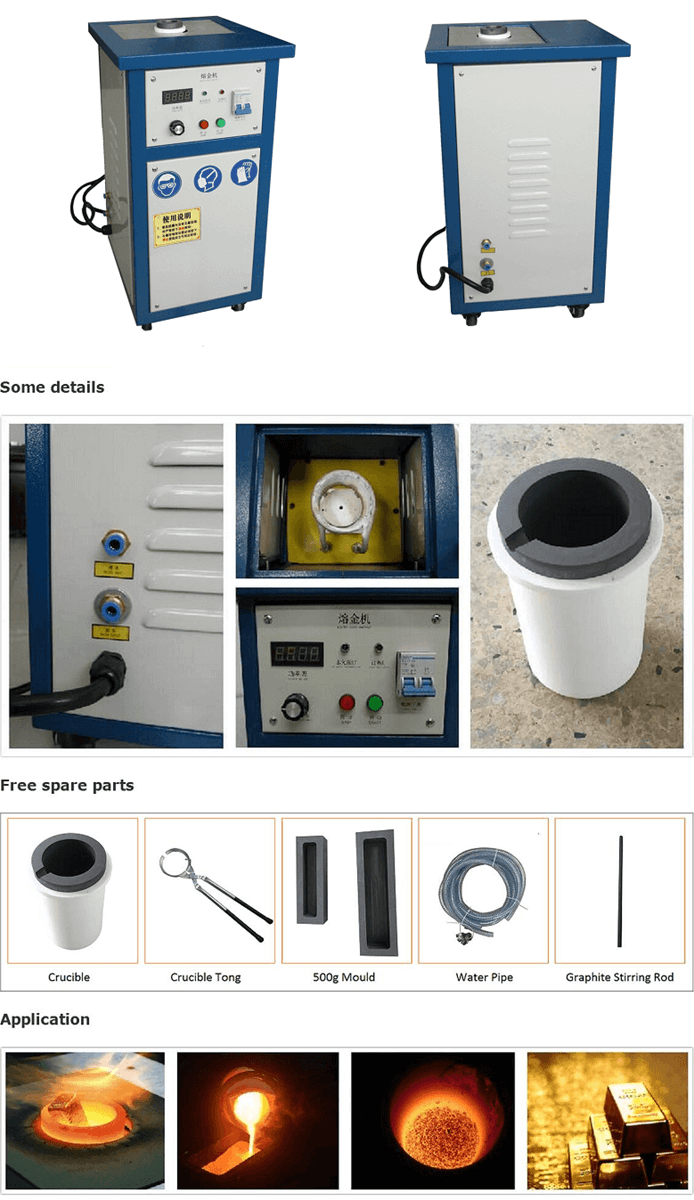

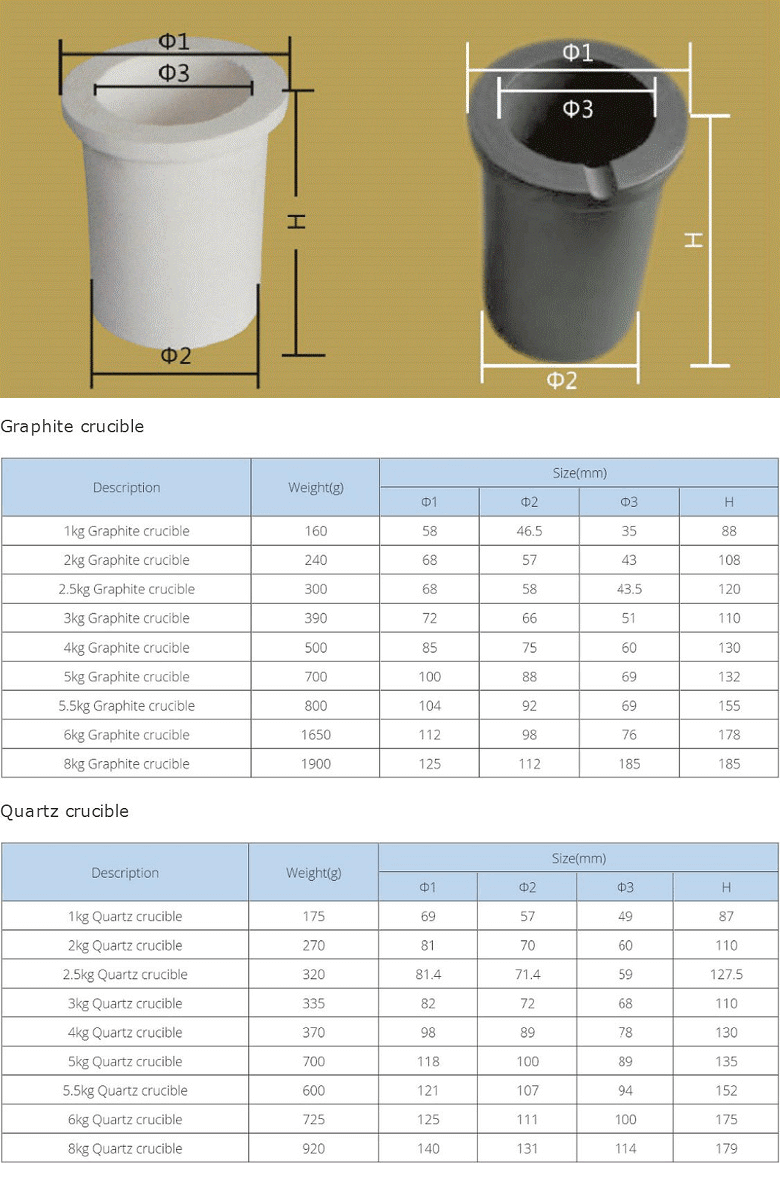

Crucible
Crucible For Gold Melting Furnace
Features
1. Using solid-state IGBT inverter and power regulation, soft switch three double regulation and frequency automatic tracking techno logy.
2. It is a highly reliable guarantee 100% full load, 24hours of continuous work ability, with over-current, over-voltage, owe water, lack of phase, loaddiscomfort such as multiple protection
3. Intermediate frequency power supply to rapid heating and electromagnetic stirring effect on metal, in order to obtain high temperature metal liquid and highly uniform.
4. Machines built water pump, cooling is more convenient.
2. It is a highly reliable guarantee 100% full load, 24hours of continuous work ability, with over-current, over-voltage, owe water, lack of phase, loaddiscomfort such as multiple protection
3. Intermediate frequency power supply to rapid heating and electromagnetic stirring effect on metal, in order to obtain high temperature metal liquid and highly uniform.
4. Machines built water pump, cooling is more convenient.
Parameters
|
Model number
|
SPB-H1
|
SPB-H2
|
SPB-H4
|
SPB-H5
|
SPB-H6
|
|
Power supply
|
220 V
|
220 V
|
Three phase 380 V
|
Three phase 380 V
|
Three phase 380 V
|
|
Power
|
3.5 kw
|
3.8 kw
|
15 kw
|
15 kw
|
15 kw
|
|
Applicable metal
|
Gold, karat gold,silver and copper
|
Gold, karat gold,silver and copper
|
Gold, silver and copper
|
Gold, silver and copper
|
Gold, silver and copper
|
|
Melting time
|
2-3 min
|
2-3 min
|
2-3 min
|
3-5 min
|
3-5 min
|
|
The Max capacity
|
1 kg gold
|
2 kg gold
|
4 kg gold
|
5 kg gold
|
6 kg gold
|
|
The highest temperature
|
1500℃
|
1500℃
|
1800℃
|
1800℃
|
1800℃
|
|
Dimension
|
680×340×380 mm
|
680×340×380 mm
|
530×530×900 mm
|
530×530×900 mm
|
530×530×900 mm
|
|
Weight
|
25 kg
|
25 kg
|
50 kg
|
55 kg
|
60 kg
|
Quality Assurance
How we control the quality
Packaging & Shipping
FAQ
1. What is your advantage to choose Superb melting system?
As one of top suppliers in the induction field over 15 years,the machine's stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.
3. what is your warranty?
Our all machines' standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
As one of top suppliers in the induction field over 15 years,the machine's stability and efficiency is warrantied.The confidence is from our superb technical engineers team.There are some doctors graduated from Zhejiang university which is the origin of induction technology in China.
2. If our machine meets fault, how could you help us to solve it?
The detailed fault description and photos should be informed to us.Our engineer will judge which part meets trouble,then provide advise and accessories list you need. The spare parts will be sug-gested to purchase by our sales manager for ensuring minimum downtime. If some problems can not be solved through communication, the engineer will be dispatched to debug onsite according to your requirement.
3. what is your warranty?
Our all machines' standard warranty is 12 months from the date of signing the turning over docu-ment after commission.
