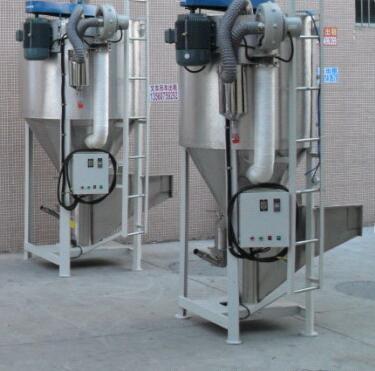

Working principle of Hot sale Vertical stainless steel Plastic Color Dryer Mixer for   master

batch

       The job of vertical stainless steel blender is to make use of its fast rotating screw to

elevate the raw materials from the bottom of the hopper body through the center to the

top, and then the raw material are flown like umbrella before scattering back to the

bottom, so that the raw material roll and mix up and down in the bin, and over a short

period of time the substantial raw materials can be evenly mixed.



Main Features of Hot sale Vertical stainless steel Plastic Color Dryer Mixer for master   batch

1, Spiral cycle mixing allows raw materials to be mixed more evenly and faster.

2, Applicable for the mixed blending of all kinds of plastic and the master batches, the

mixture of the new and old materials as well as master batches is better.

3, The materials that equipment and raw material have come into contact are all made

of stainless steel, which is easier to clean up and avoids corrosion.

4, With electronic control safety devices is to ensure safe operation.


Technology Parameters

Type	Horsepower(HP)	Mixing Volume(kgs)	Heating Power(kw)	Mechianical Dimension(mm)	Mechine Weight(kgs)
DTV-20H	3	500	12	110*270CM	360
DTV-40H	5.5	1000	18	130*298CM	580
DTV-60H	5.5	1500	24	145*330CM	780
DTV-80H	7.5	2000	36	160*340CM	1000
DTV-120H	7.5	3000	48	200*378CM	1200
DTV-160H	10	4000	60	240*445CM	1400
DTV-200H	10	5000	72	280*520CM	1600
DTV-400H	25	10000	84	310*550CM	1800
DTV-600H	30	20000	96	340*700CM	2000
