Product Main

Quick Details

Brand Name: EIDSOND
Frequency Response: 45HZ-20kHZ
Name: 3 way line array active or passive
Certification: CE
Channel: 3
Model Number: VT4888
Place of Origin: China (Mainland)
waterproof: plywood

Specifications

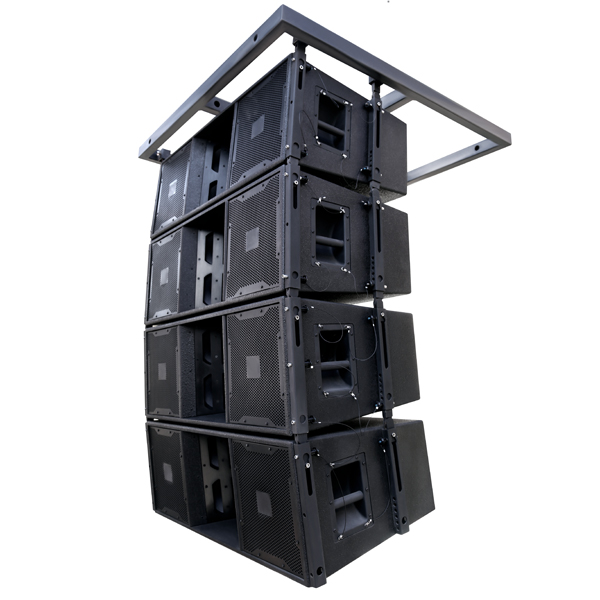

3 way double 12 inch big power line array


VT series line array speakers are suitable for more use of venues, such as clubs, chamber, church, and multi-function hall. VT4888 line array speaker is especially for Large-scale outdoor performances,etc.
* Multi-unit combination of superior performance of rich full sound, a broad range
* Speakers with patented hanging system, steel hanging system is of sturdiness and durability, and convenience of multi-angle hanging.
* Tenor broadband unit, imported PE patch treble treble voice penetration is better, more soft and delicate treble
* through a precise calculation of the box, with a strong low-frequency fullness without losing flexibility, low distortion rate
* Use durable NUTRUIK SPEAKON socket
* New and unique voltage perforated steel nets to protect the unit from external shocks.
* Patented design of new material of plastic horn, lighter, more aesthetic appearance.
* Box using high-intensity multi-storey plywood production, more solid structure.
* High polyester granules external spray paint, can withstand all kinds of friction and collisions
* Flight case packaging, making speakers hanging and transportation more convenient.

System: Line array loudspeaker system
Frequency response (3dB):50Hz~18 KHz
LF driver: EB12O2x2 (12in) 100mm voice-coil
MF driver: EB605x4 (6.5in) 35mm voice-coil
HF driver: EB1605x2(1.7in) 44mm voice-coil
Nominal Impedance: LF 4ohms
MF 8ohm
HF 16ohm
Sensitivity (1w@1m): LF 99dB SPL
MF 101dB SPL
LF 105dB SPL
Maximum SPL: LF 131dB
MF 127dB
HF 128dB
Power handling: LF 800W
MF 200W
HF 100W
Peak power: LF 1600W
MF 400W
HF 200W
Horizontal(-6dB): 85
Vertical(-6dB): 9
Dimensions (W x D x H):387x580x1261 mm/PCS
Connectors: 2xSpeakon| connectors (NL8)
Enclosure material: 18mm plywood
Finish: Textured black paint
Grille: Black perforated steel
Suspension system: Proprietary rigging system
